C1-2-1 CAB HARNESS ELECTRICAL LAYOUT – Scholten's Equipments Parts Store

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	HARNESS FRONT WORK 718/48200	1	AVAILABLE TO ORDER	$110.84	Quantity
1	HARNESS -R/CAB 721/00389	1	AVAILABLE TO ORDER	$280.87	Quantity
1	HARNESS PANEL 721/00358	1	AVAILABLE TO ORDER	$3,892.41	Quantity
13	NSP USE 700/39300 700/39200	1	AVAILABLE TO ORDER	$112.95	Quantity

Showing 1 to 4 of 4 parts

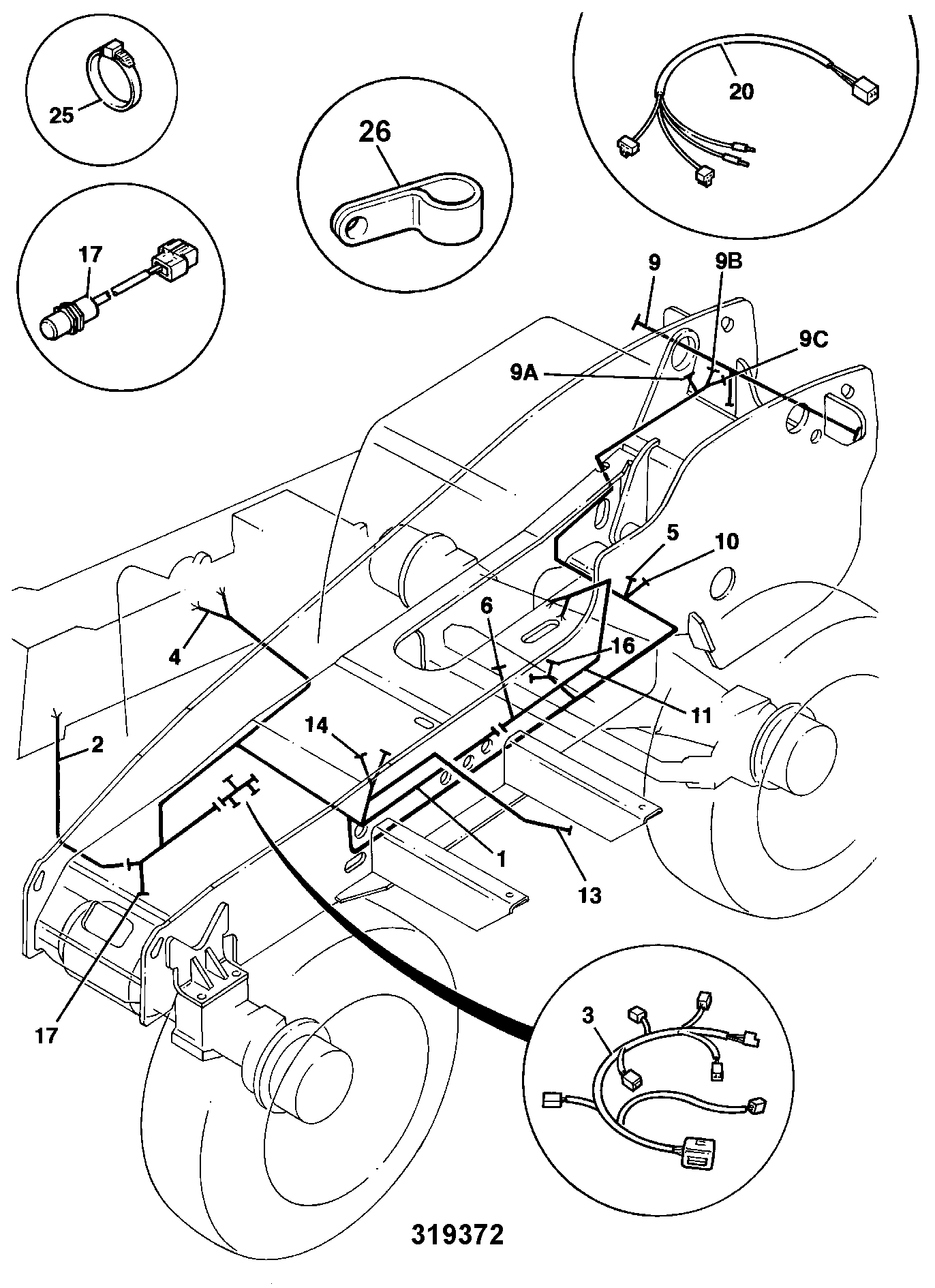

DIAG-C1-2-1-400852 C1-2-1 CAB HARNESS ELECTRICAL LAYOUT
View Diagram
DIAG-C1-2-2-400852 C1-2-2 CAB HARNESS ELECTRICAL LAYOUT
View Diagram
DIAG-C1-1-2-400852 C1-1-2 MAINFRAME ELECTRICAL LAYOUT (RELAY CONTROLLED TRANSMISSION)
View Diagram
