Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| (Pre-P)-HARNESS SHOVEL LTS 721/10987 | 1 | $272.86 | ||||
| 12W DT04 PIN HSG SEALED FLG MNT (P545) 7219/0017 | 1 | $89.33 | ||||
| CABLE TIE 150mm 826/01162 | 1 | $4.17 | ||||
| CABLE TIE 190mm 826/01347 | 1 | $3.37 | ||||
| CONNECTOR 2 WAY DE 721/10822 | 1 | $99.29 | ||||
| CONNECTOR MTG FLANGE 7210/0071 | 1 | $59.68 | ||||
| DIODE GATE 704/50190 | 1 | $282.63 | ||||
| EARTH CABLE 550mm 718/20119 | 1 | $65.19 | ||||
| FLANGED BOLT M8x20(KANBAN) (BR3) 1317/3305Z | 1 | $0.98 | ||||
| FUSE LINK WIRE 332/F2545 | 1 | $37.96 | ||||
| GROMMET 9.5IDx19OD 2410/0205 | 1 | $4.53 | ||||
| HARNESS CLIP 123/05247 | 1 | $5.58 | ||||
| HARNESS IMMOBILISER LINK 721/11411 | 1 | $30.29 | ||||
| Harness shovel mou 721/11046 | 1 | $107.91 | ||||
| HEATER, FUEL/WATER 12V, HYDRAULIC 721/10969 | 1 | $26.23 | ||||
| KIT-REPAIR HARNESS 331/30579 | 1 | $80.21 | ||||
| MOUNT harness plug 331/43850 | 1 | $3.40 | ||||
| NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $0.80 | ||||
| Plug 721/11124 | 1 | $29.26 | ||||
| Plug 2 diodes (aux 704/50132 | 1 | $121.10 | ||||
| PLUG 5 DIODE 2WS 716/20500 | 1 | $246.48 | ||||
| PRE INSULATED HEAT SHRINK SPLICE 892/00352 | 1 | $1.08 | ||||
| RELAY MICRO 35/20A 12V - BLUE 716/E0156 | 1 | $21.52 | ||||
| RIVET NUT M8 826/01254 826/01106 | 1 | $1.15 | ||||
| SCREW 826/01521 | 1 | $4.53 | ||||
| SET SCREW M5x16 1315/0103Z | 1 | $1.92 | ||||
| SET-SCREW M_5 L-25mm 1315/0107Z | 1 | $7.58 | ||||
| WASHER M_5 PLAIN(KANBAN) 1420/0005 1420/0005Z | 1 | $0.43 | ||||
| WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.17 | ||||
| 1 | HARNESS chassis 3CX/4CX 721/12351 | 1 | $2,729.79 | |||
| 2 | (W) (P) HARNESS cab panel 3/4CX(EN474) 332/E6593 | 1 | $5,189.15 | |||
| 3 | (W) (P) HARNESS roof row 721/11153 | 1 | $349.80 | |||
| 4 | Harness autoshift 721/11678 | 1 | $569.89 | |||
| 4 | HARNESS g/box manual 721/11679 | 1 | $240.73 | |||
| 4 | HARNESS g/box powershift 721/11680 | 1 | $799.07 | |||
| 5 | HARNESS rear cab row 721/11544 | 1 | $127.36 | |||
| 5 | HARNESS rear cab uk 721/11543 | 1 | $77.86 | |||
| 7 | HARNESS - aux.hydraulics 721/11719 | 1 | $341.50 | |||
| 8 | HARNESS steer mode Aws 721/12300 | 1 | $221.51 | |||
| 9 | '(W) (Z) HARNESS 2WS Link (AWS) (3/4CX) 721/10580 | 1 | $60.79 | |||
| 9 | HARNESS-4CX LINK 721/10581 | 1 | $83.26 | |||
| 10 | HARNESS LINK PLUG 721/10872 | 1 | $41.60 | |||
| 11 | (IM) HARNESS Front Console Germany 332/D2154 | 1 | $1,409.44 | |||
| 11 | (W) (P) (IM) HARNESS Front console 332/D1059 | 1 | $1,123.77 | |||
| 11 | (W) (P) (IM) HARNESS Front console 332/D2080 | 1 | $7,334.21 | |||
| 11 | (W) (P) HARNESS steer console A/s(EN47 332/E6754 | 1 | $1,605.31 | |||
| 12 | LINK HARNESS - ESSOS. 721/11639 | 1 | $54.33 | |||
| 13 | HARNESS INTERIOR LIGHT 721/11050 | 1 | $27.53 | |||
| 17 | SET SCREW M10x20 1315/0405Z | 1 | $0.00 | |||
| 18 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.00 | |||
| 19 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.00 | |||
| 20 | HARNESS - hydraclamp 721/11361 | 1 | $20.53 | |||
| 21 | HARNESS Boom O/load link 332/E9050 | 1 | $36.26 | |||
| 21 | HARNESS Boom O/Load link 332/E9078 | 1 | $26.43 | |||
| 26 | CRADLE FOR CABLE TIE 122/40304 | 1 | $15.95 | |||
| 27 | CABLE TIE - BLACK 200mm 826/01144 | 1 | $0.20 | |||
| 39 | HARNESS speed sensor 721/11862 | 1 | $69.20 | |||
| 41 | HARNESS - switch link 721/11916 | 1 | $42.28 | |||
Showing 1 to 58 of 58 parts
Related Assemblies
-

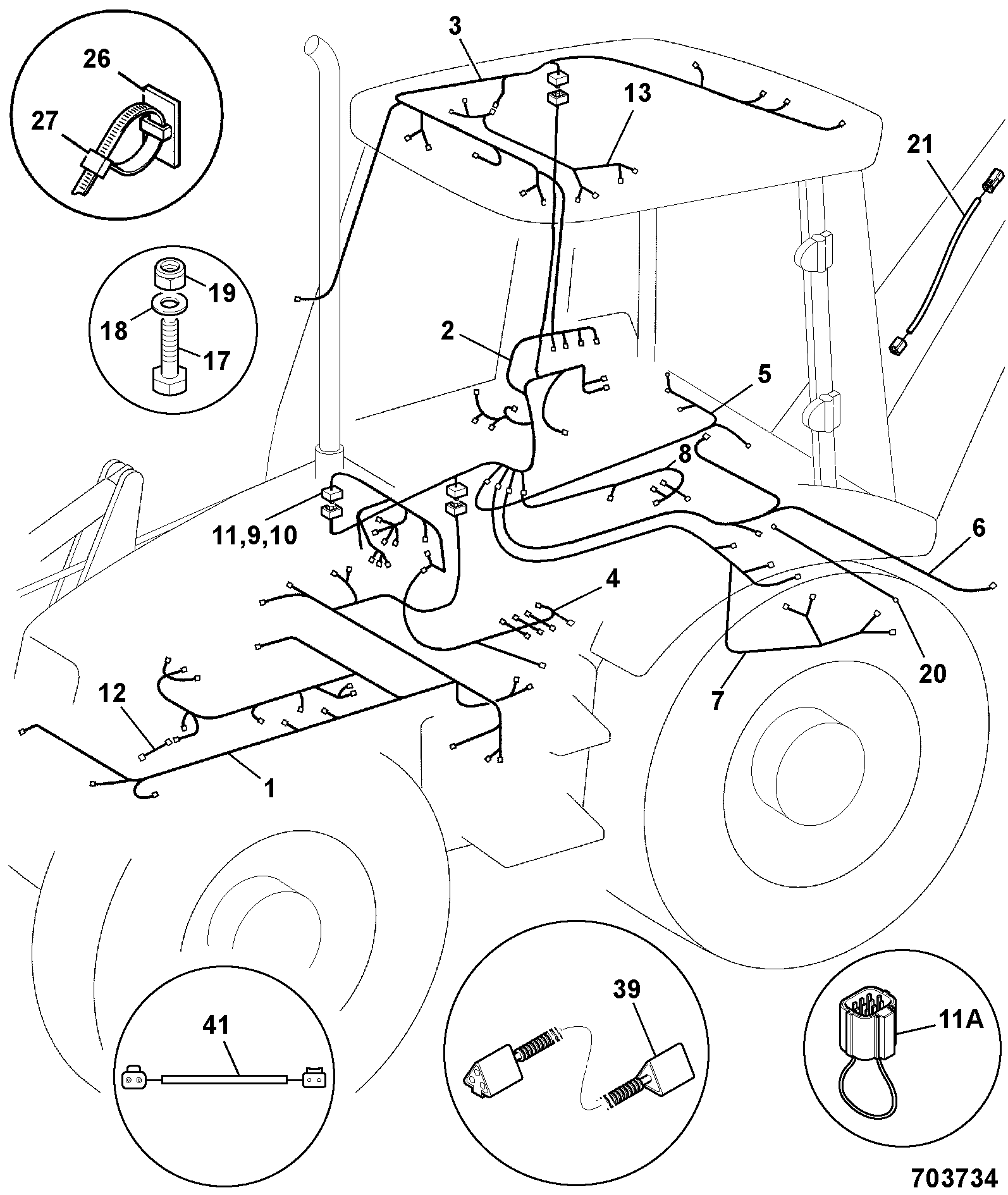

DIAG-C1-1-12-394841-10861204 C1-1-12 HARNESS CAB CANOPY MACHINE, PCS
View Diagram -

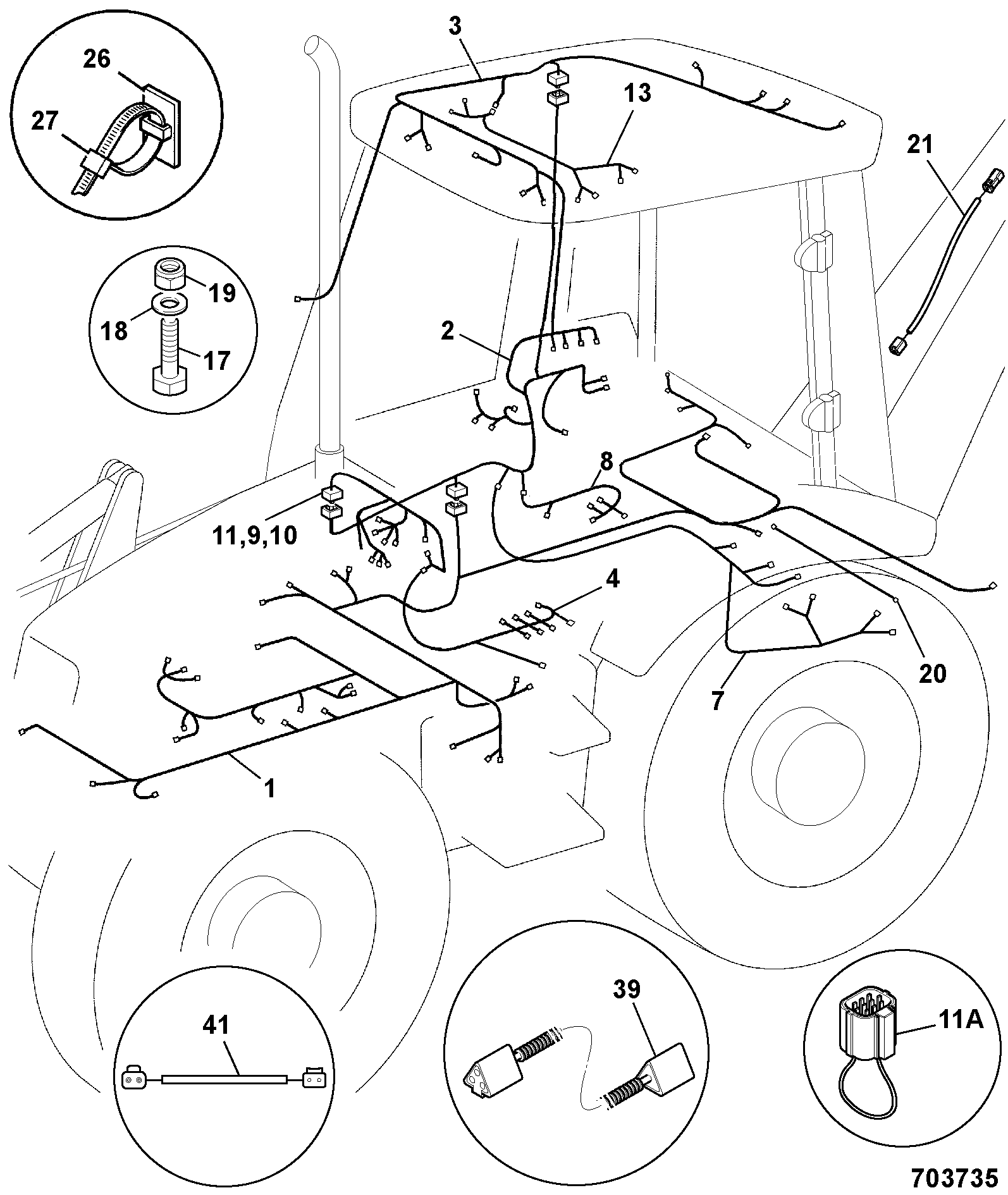

DIAG-C1-1-13-394841-10861206 C1-1-13 HARNESS CAB CANOPY MACHINE, PCS
View Diagram -

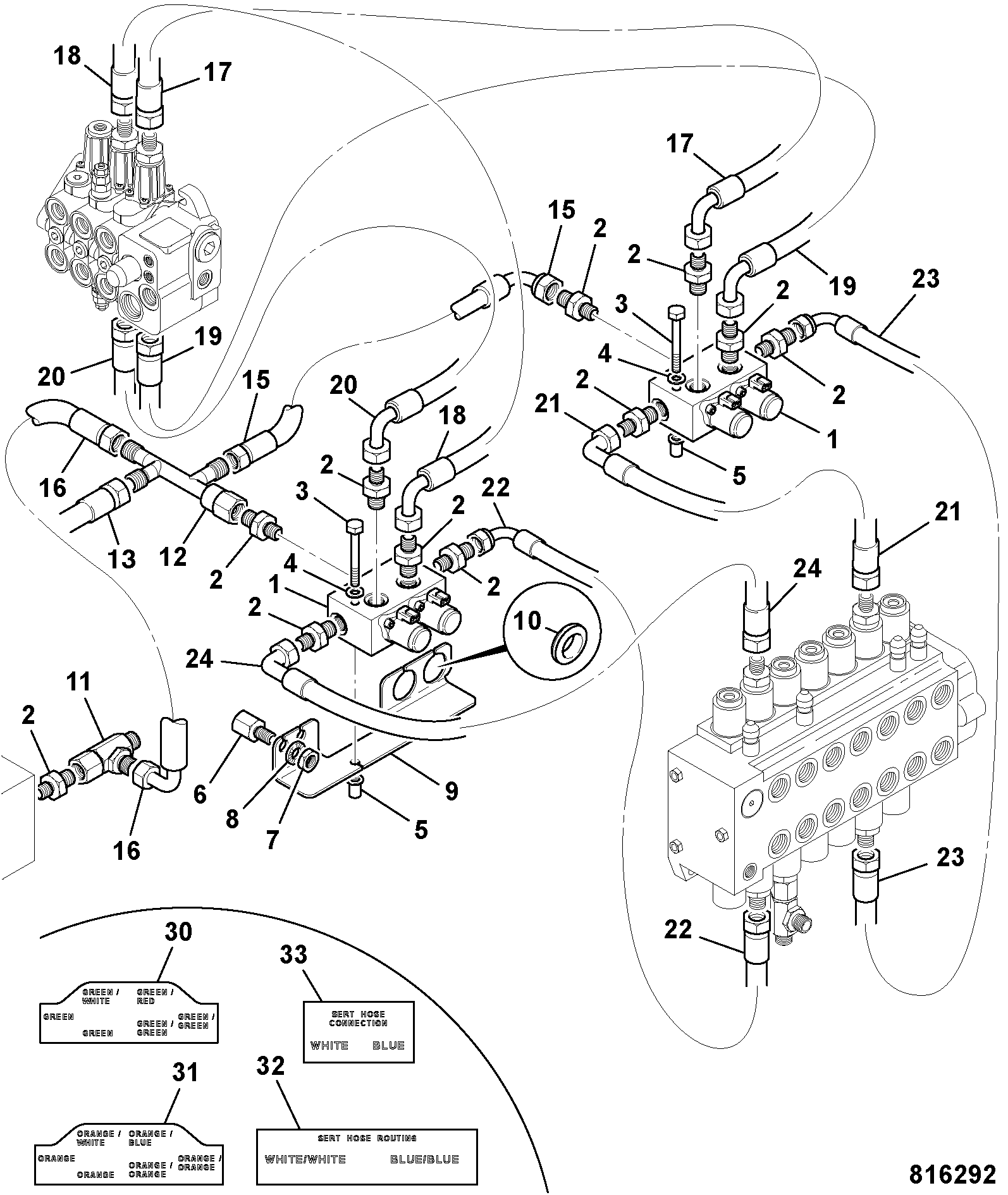

DIAG-E1-63-6-394841 E1-63-6 HOSE AND PIPEWORK CHANGEOVER VALVES LDR TO EXC VALVE VARIFLOW PC
