Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| HARNESS REAR LIGHT 721/00367 | 1 | $315.26 | ||||
| HARNESS REAR LIGHT 721/00368 | 1 | $157.18 | ||||
| HARNESS REAR LIGHT 721/00369 | 1 | $103.06 | ||||
| SWAY HARNESS P42/54 721/00903 | 1 | $130.79 | ||||
| 1 | HARNESS CHASSIS 721/10651 | 1 | $1,679.52 | |||
| 1 | Harness Chassis 721/10911 | 1 | $3,335.75 | |||
| 2 | HARNESS PANEL 721/10655 | 1 | $564.06 | |||
| 2 | HARNESS PANEL 721/11015 | 1 | $3,142.64 | |||
| 3 | 540-170 BOOM HARNESS 721/10665 | 1 | $83.10 | |||
| 3 | Harness Boom Workl 721/10760 | 1 | $52.30 | |||
| 4 | HARNESS STABILISER 721/10656 | 1 | $59.43 | |||
| 4 | Harness Stabiliser 721/11016 | 1 | $67.90 | |||
| 5 | HARNESS 721/10663 | 1 | $38.91 | |||
| 6 | HARNESS.ALTERNATOR.POWER 718/49700 | 1 | $83.96 | |||
| 7 | SWITCH 701/42700 | 1 | $107.66 | |||
| 8 | (W) (P) DECAL CONTROL LOCK 817/17082 | 1 | $5.88 | |||
| 9 | PROXIMITY SWITCH 701/80314 | 1 | $343.79 | |||
| 9 | SWITCH PROXIMITY 704/31600 | 1 | $589.31 | |||
| 10 | CAP SCREW M6x20 1391/3105Z | 1 | $0.62 | |||
| 12 | NUT M4 STD SELF LOCK 1370/9403Z | 1 | $0.42 | |||
| 13 | WASHER M4 PLAIN 1420/0004Z | 1 | $0.68 | |||
| 14 | CAPSCREW 826/01715 | 1 | $3.46 | |||
| 15 | SEALED PLUG-4 WAY 719/10102 | 1 | $24.34 | |||
| 16 | CABLE TIE - BLACK 200mm 826/01144 | 1 | $0.20 | |||
| 16 | CABLE TIE-225MM 826/01092 | 1 | $4.11 | |||
| 17 | CABLE TIE 120mm 204/07006 | 1 | $1.64 | |||
| 18 | TIE MOUNT.CRADLE MNT. 826/01274 | 1 | $0.92 | |||
| 19 | HARNESS CLIP 264/34901 | 1 | $3.01 | |||
| 20 | SET 5/16UNFx3/4 HT 1305/0104Z | 1 | $1.04 | |||
| 21 | WASHER 5/16 SMALL PLAIN 1410/0002Z | 1 | $1.22 | |||
| 22 | NUT 5/16UNF STD SELF LOCK 1340/0103Z | 1 | $2.54 | |||
| 23 | REVERSE ALARM 717/07200 | 1 | $267.06 | |||
| 24 | SET-SCREW M_6 L-_20mm(KANBAN) 1315/0205Z | 1 | $0.33 | |||
| 25 | NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $0.80 | |||
| 26 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.17 | |||
| 27 | CABLE TIE - BLACK 210mm 826/01453 | 1 | $1.49 | |||
| 28 | JUNIOR TIMER BLANK MALE 717/13900 | 1 | $14.49 | |||
| 29 | 3 WAY DT PIN HSG - BLANK 715/20011 | 1 | $27.44 | |||
| 29 | PLUG 214/77203 | 1 | $64.14 | |||
| 30 | RUBBER BUMP STOP 160/01742 | 1 | $34.95 | |||
| 31 | CABLE TIE 150mm 826/01162 | 1 | $4.17 | |||
| 32 | HARNESS POWERSHIFT 721/00504 | 1 | $472.65 | |||
| 32 | POWERSHIFT HARNESS 721/10930 | 1 | $138.98 | |||
| 33 | CLIP SUMITOMO 821/00367 | 1 | $7.65 | |||
| 33 | DEUTSCH DT MNTG CLIP 7210/0067 | 1 | $26.59 | |||
| 34 | NUT VIBRATION PROOF 826/01277 | 1 | $3.89 | |||
| 35 | (W) (P) PENDANT WORKLIGHT - 007.506-2 700/38800 | 1 | $102.67 | |||
| 36 | (W) (P) BRACKET 331/18127 | 1 | $65.77 | |||
| 37 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $0.37 | |||
| 38 | SWITCH 701/39500 | 1 | $15.48 | |||
| 39 | SWITCH DECAL - FR.W/LAMPS 701/00031 | 1 | $0.00 | |||
| 40 | SWITCH 701/38000 | 1 | $123.70 | |||
| 41 | DECAL 701/58813 | 1 | $7.65 | |||
| 42 | Auto Blade Fuse 10A 716/05705 | 1 | $0.00 | |||
| 43 | Auto Blade Fuse 5A 716/05703 | 1 | $0.81 | |||
| 44 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
| 45 | WORK LAMP BRK 123/06305 | 1 | $6.76 | |||
| 46 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $6.63 | |||
| 49 | SET-SCREW M_8 L-20mm 1315/0305Z | 1 | $0.56 | |||
Showing 1 to 59 of 59 parts
Related Assemblies
-
DIAG-B6-1-1-402377 B6-1-1 HOMOLOGATION PARTS GERMAN
View Diagram -

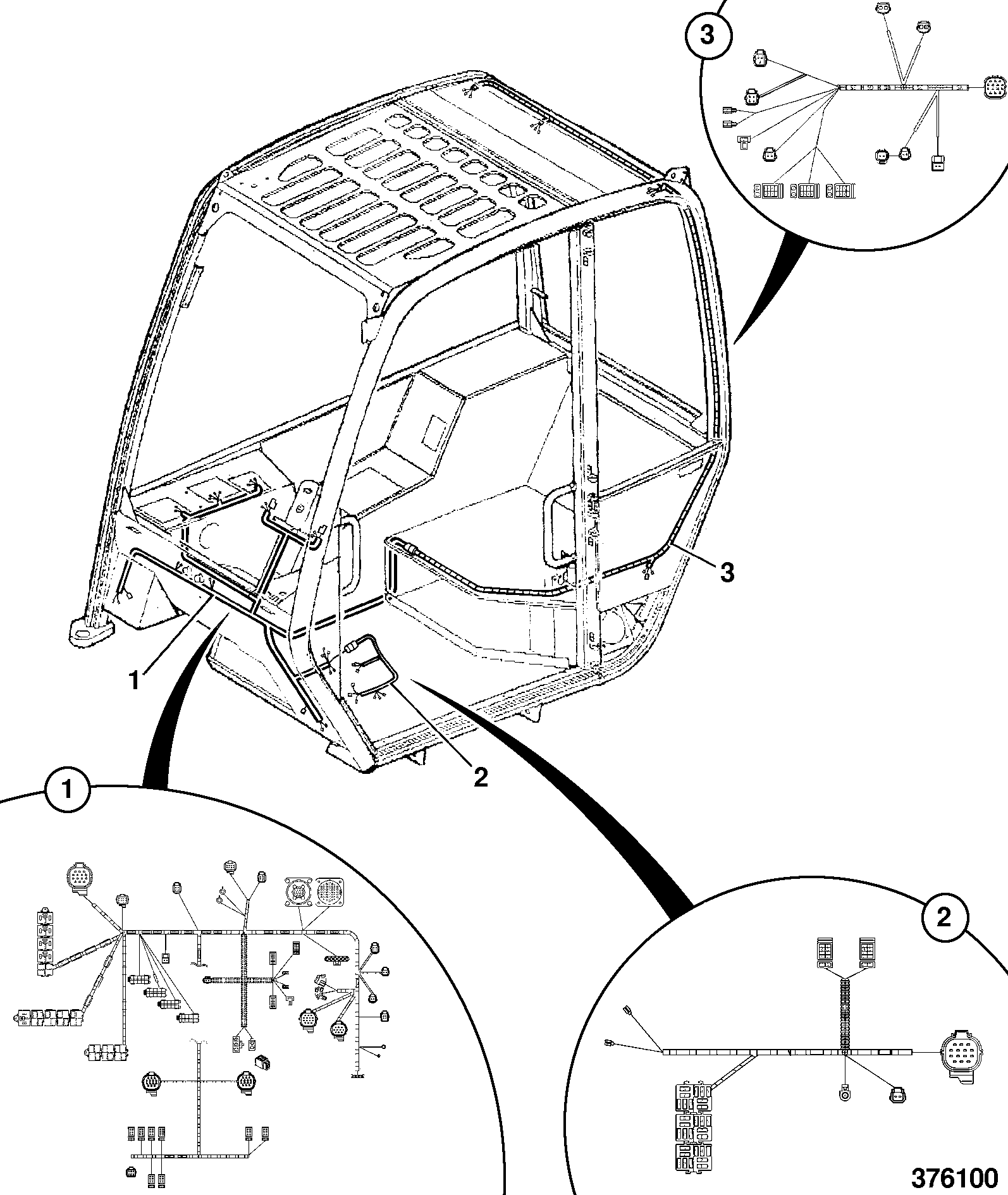

DIAG-C1-2-1-402377 C1-2-1 CAB HARNESS ELECTRICAL LAYOUT
View Diagram -

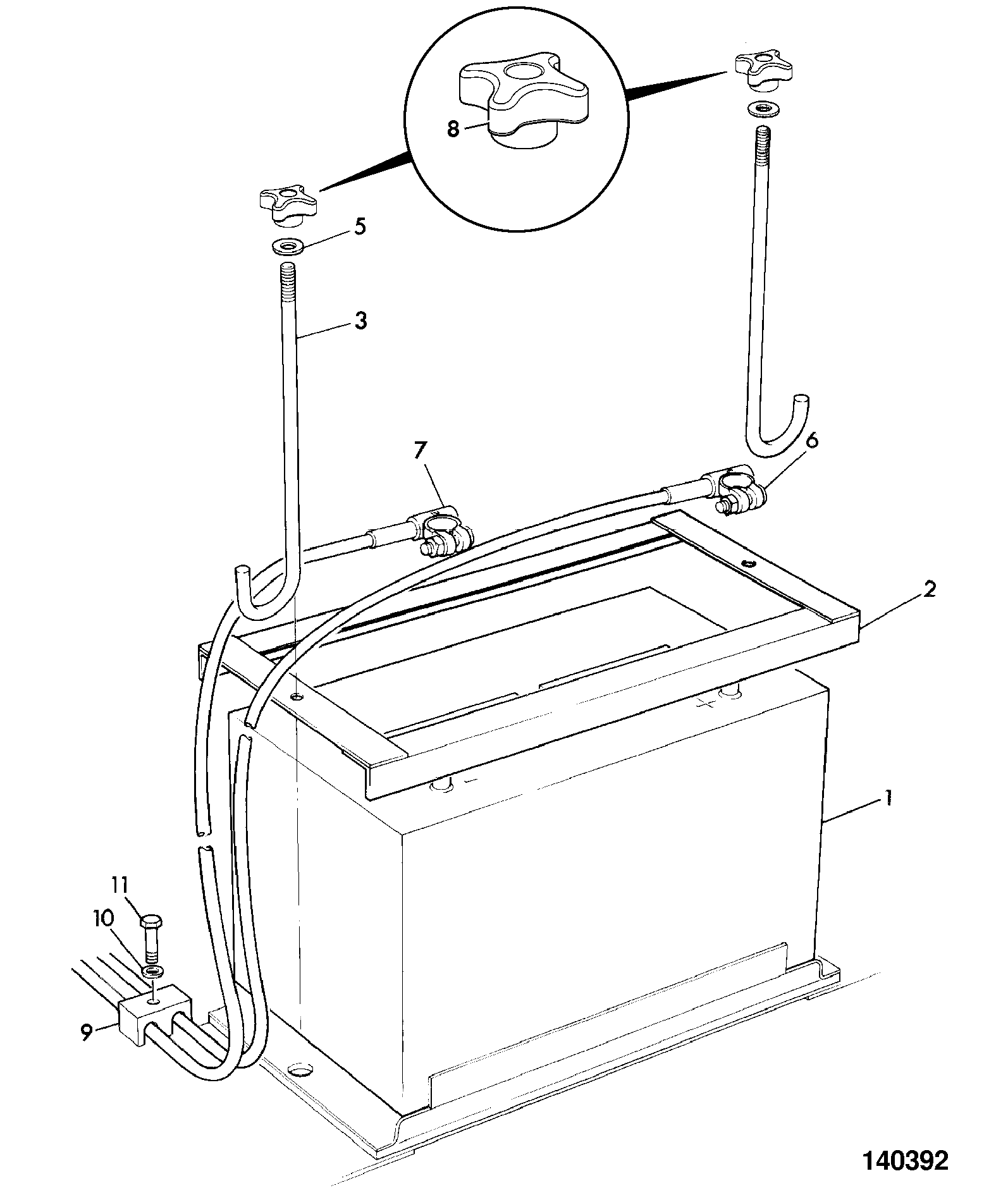

DIAG-C1-3-1-402377 C1-3-1 BATTERY & COMPONENTS
View Diagram
