| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| HARNESS IGNITION 232/34608 | 1 | $219.69 | ||||
| Key Ignition Switch( 44.0652.0101) 701/45501 | 1 | $27.95 | ||||
| 1 | PANEL INSTRUMENT 232/25501 | 1 | $231.32 | |||
| 2 | (W) (P) SCREW BUTTON HEAD (P712) 826/01674 | 1 | $0.41 | |||
| 3 | WASHER 1/4IN SMALL 1410/0001Z 1410/0001D | 1 | $0.29 | |||
| 7 | BULB 12V-3W 720/10049 | 1 | $1.13 | |||
| 8 | BOLT 826/00260 | 1 | $2.35 | |||
| 10 | NUT 1358/0201Z | 1 | $0.29 | |||
| 11 | SWITCH 1 WAY 701/11401 | 1 | $15.93 | |||
| 12 | INSERT-SWITCH 701/11402 | 1 | $1.32 | |||
| 13 | 2-WAY SWTCH(NON-ILLUMNTED 701/10200 | 1 | $16.44 | |||
| 14 | INSERT-HTR.BLWR(GREEN) 701/10900 | 1 | $2.15 | |||
| 15 | INSERT SIDE H/LIGH 701/11002 | 1 | $3.57 | |||
| 18 | Ignition Barrel 701/45300 | 1 | $50.38 | |||
| 18A | switch barrel and key 701/03400 334/D3643 | 1 | $65.24 | |||
| 19 | NSP NOT USA SPEC 701/36807 | 1 | $70.31 | |||
| 21 | Auto Blade Fuse 5A 716/05703 | 1 | $0.81 | |||
| 22 | FUSE-15AMP 716/05706 | 1 | $0.00 | |||
| 23 | Auto Blade Fuse 10A 716/05705 | 1 | $0.00 | |||
| 24 | ATO BLADE FUSE 20A 716/05707 | 1 | $0.00 | |||
| 25A | FUSE COVER 716/05600 | 1 | $14.52 | |||
| 26 | DIODE 716/14100 | 1 | $67.74 | |||
| 27 | BUZZER 704/00700 | 1 | $24.46 | |||
| 28 | CAP SCREW M6x20 1391/3105Z | 1 | $0.62 | |||
| 29 | NUT M5 STD SELF LOCK(KANBAN) 1370/0003Z | 1 | $1.72 | |||
| 30 | HORN 704/13900 | 1 | $54.58 | |||
| 31 | GROMMET 2410/0013 | 1 | $7.52 | |||
| 33 | SOCKET ; BEACON 715/04300 | 1 | $44.09 | |||
Showing 1 to 28 of 28 parts
Related Assemblies
-

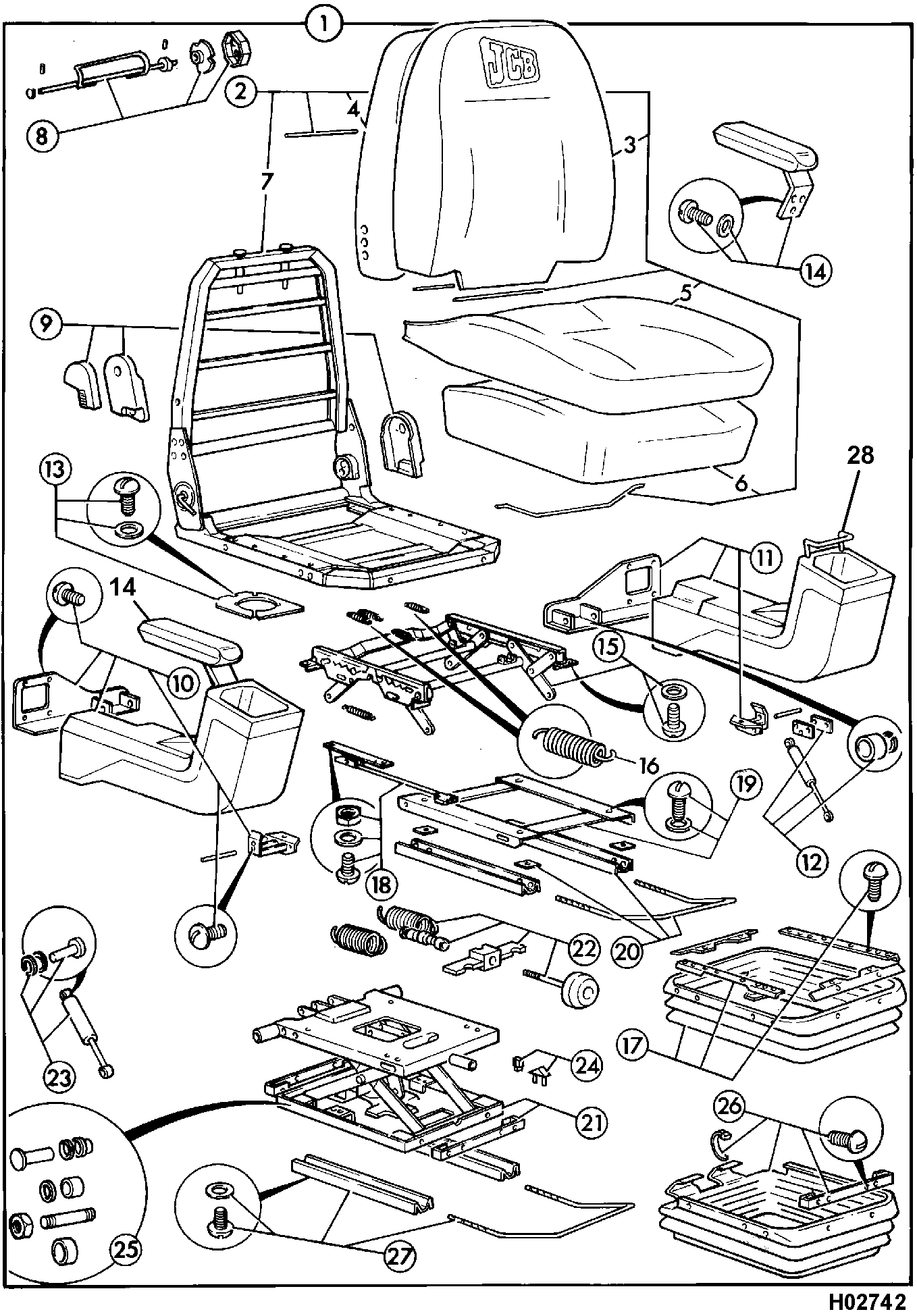

DIAG-B2-5-3-398020 B2-5-3 SEAT, SUSPENSION OPTIONAL
View Diagram -

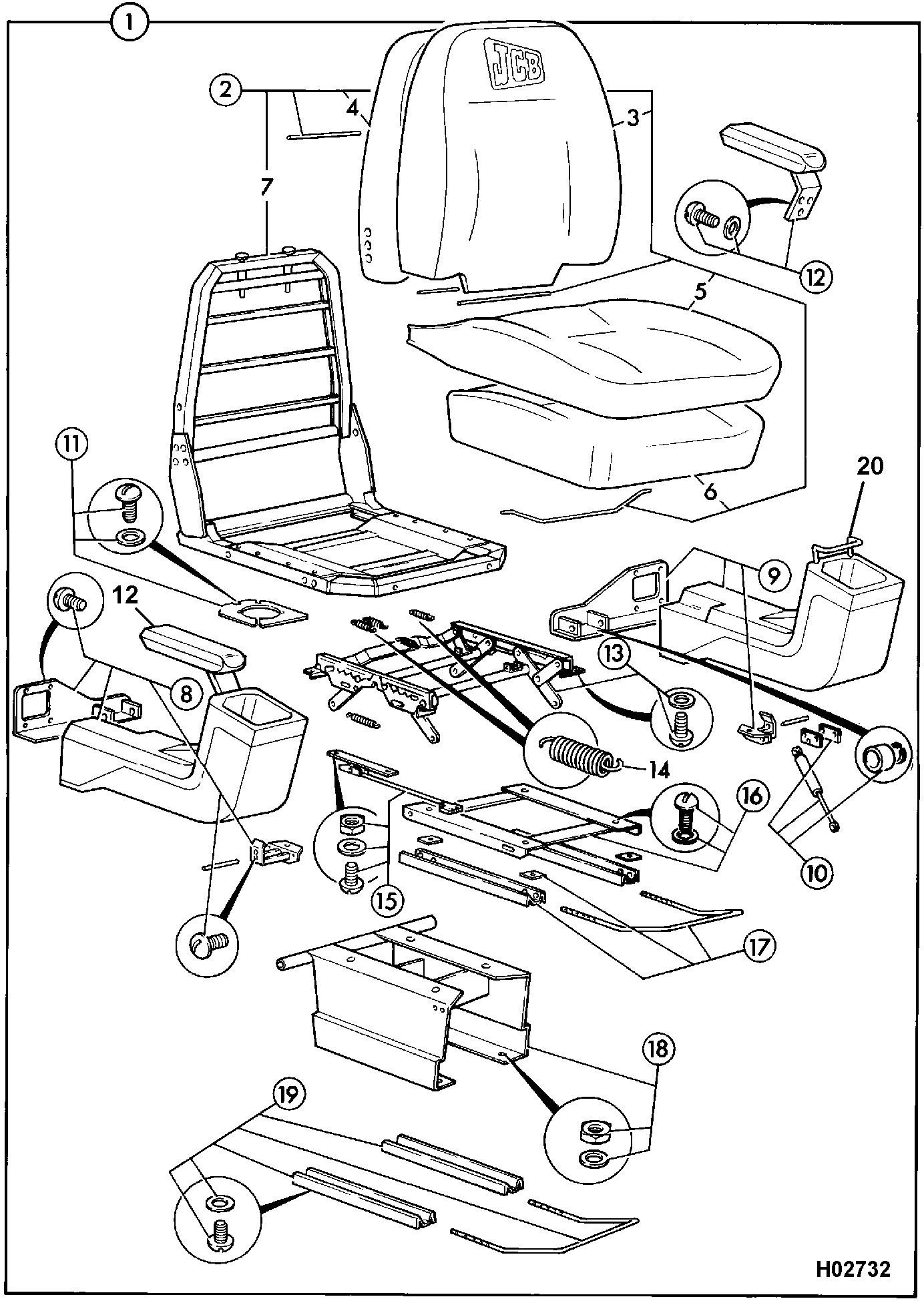

DIAG-B2-5-2-398020 B2-5-2 SEAT, STATIC STANDARD
View Diagram -

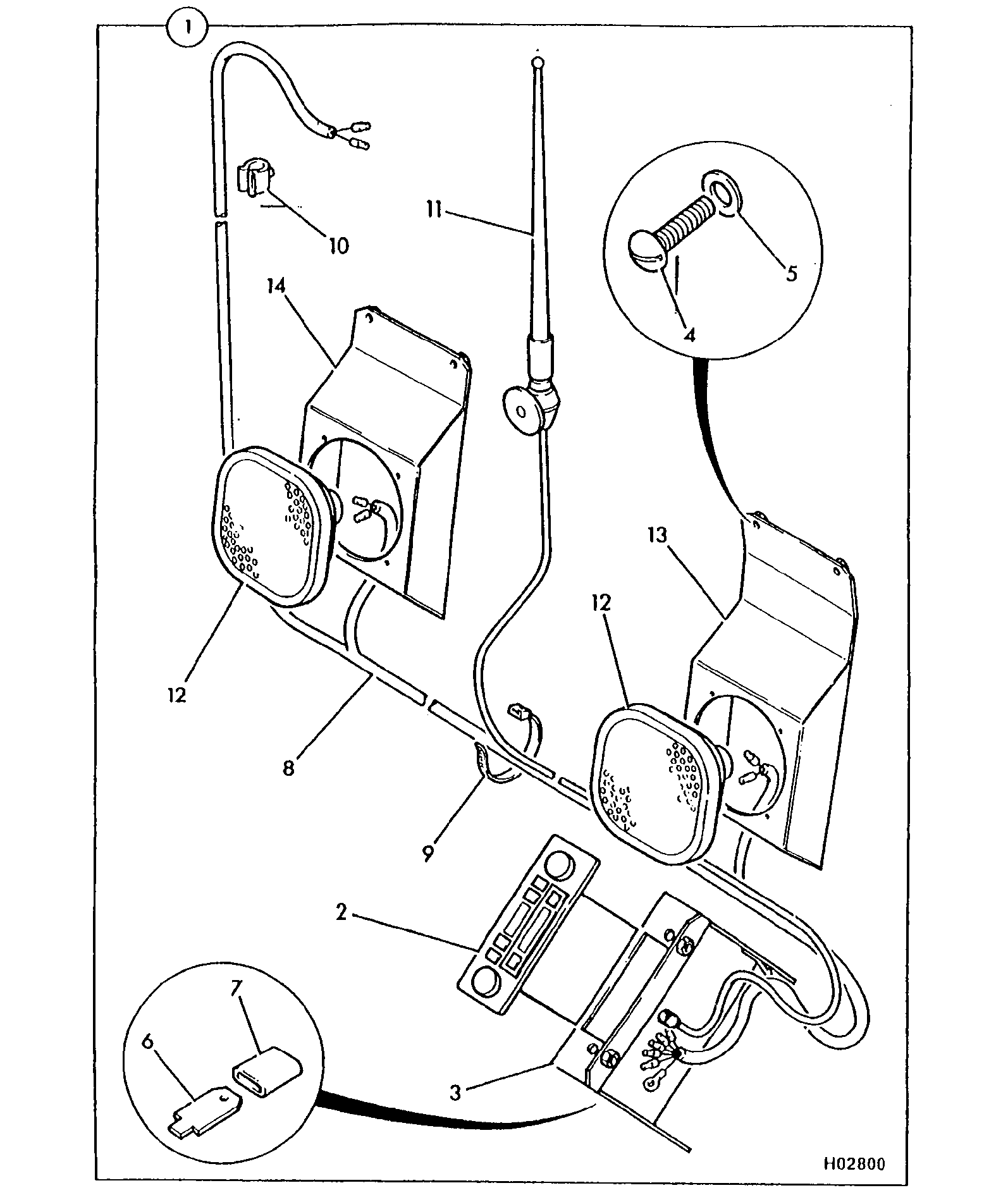

DIAG-C3-6-2-398020-12077419 C3-6-2 RADIO INSTALLATION
View Diagram
