Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 3 | PRS WHEEL CHOCK MNT 400/B3859 402/W4521 | 1 | $73.80 | |||
| 5 | SET-SCREW M_8 L-_25mm 1315/0307D | 1 | $0.37 | |||
| 6 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 8 | LABEL 40kph 400/B8295 | 1 | $16.80 | |||
| 9 | REFLECTOR AMBER 700/12500 | 1 | $1.25 | |||
| 10 | SCREW NO8X1/2 1430/0202 | 1 | $0.41 | |||
| 11 | REFLECTOR AMBER 700/22900 | 1 | $6.90 | |||
| 12 | PLATE SUPPORT LIFT 268/20059 | 1 | $500.08 | |||
| 13 | FOAM STRIP - 15m coil 824/50011 | 1 | $128.94 | |||
| 14 | (W) (P) STRAP 121/09300 | 1 | $61.65 | |||
| 15 | SPACER 123/06256 | 1 | $4.23 | |||
| 16 | DECAL FEN EXTEN CHEV LH - 400/A1099 | 1 | $29.86 | |||
| 17 | DECAL FEN EXTEN CHEV RH - 400/A1100 | 1 | $29.86 | |||
| 18 | REG PLATE MTG BRKT WA 401/Y8032 | 1 | $157.21 | |||
| 20 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 21 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 22 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 23 | SET SCREW M6x10 1315/0200D | 1 | $3.40 | |||
| 24 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 25 | WA LH REG PLATE MTG BRKT 402/U4088 | 1 | $149.08 | |||
Showing 1 to 20 of 20 parts
Related Assemblies
-
DIAG-B290-265-1-404741 B290-265-1 OTHER OPERATOR ENCLOSURE ITEMS NO GRAB RAIL
View Diagram -

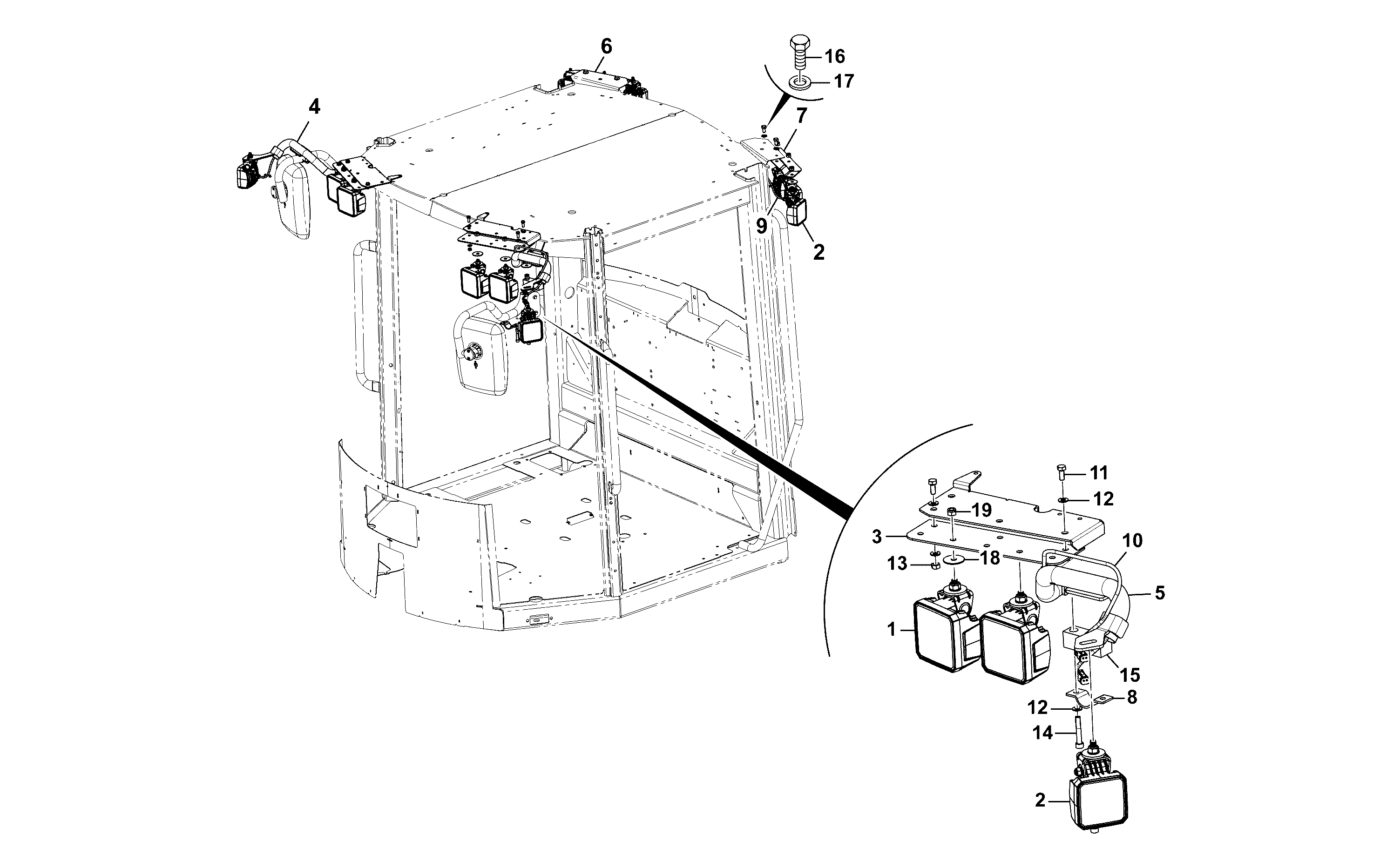

DIAG-C160-35-5-404741 C160-35-5 WORKING LAMPS AND MOUNTINGS ASSEMBLY LED HI-SPEC 360 WORKLIGHT
View Diagram -
DIAG-B170-185-20-404741 B170-185-20 BONNET/ ENGINE COVERS/ GRILLES ASSEMBLY REAR GRILLE - QNJA
View Diagram
