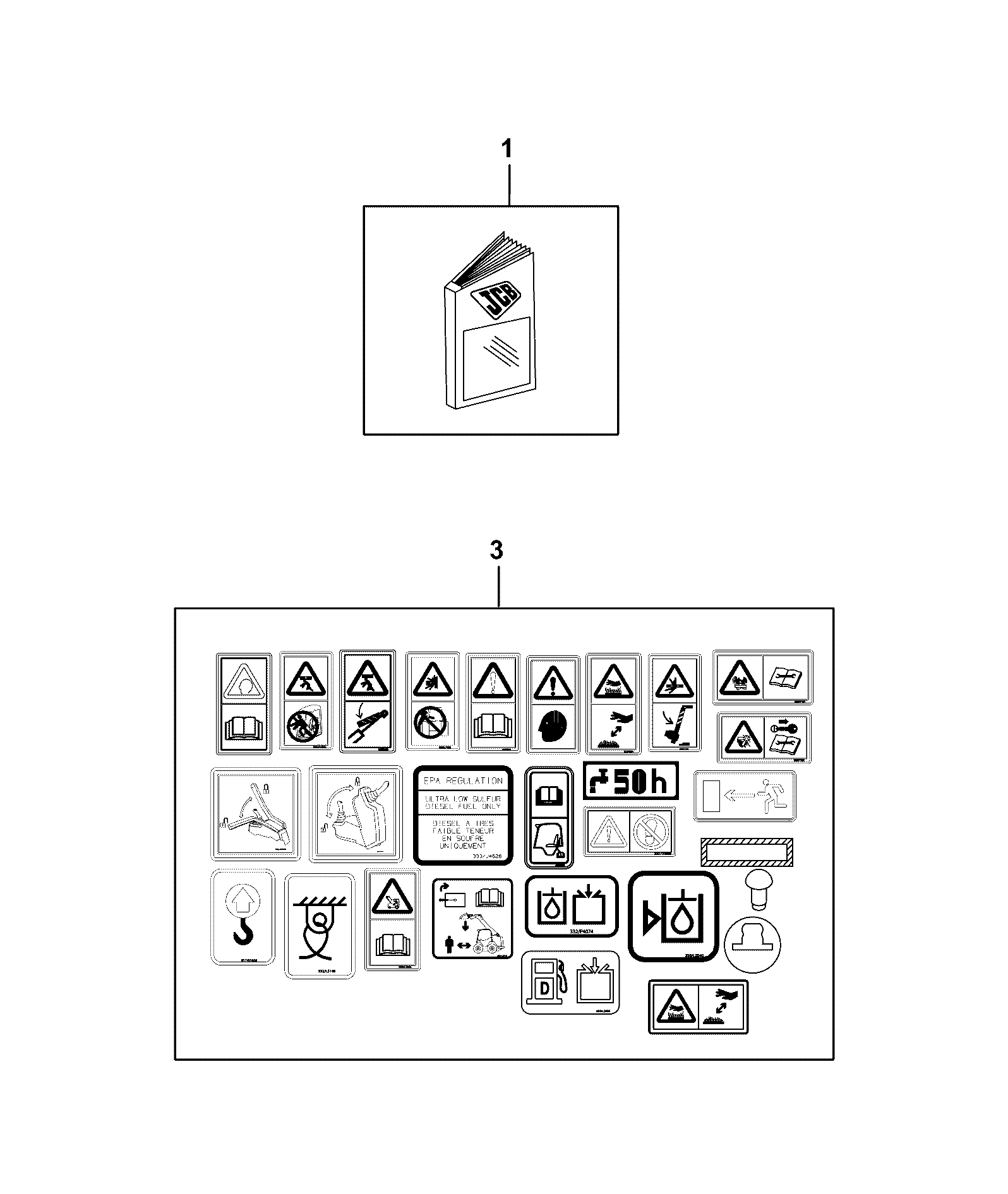

B510-110-1 DECALS MACHINE IDENTIFICATION ASSEMBLY 175,TIER 4 Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
2	DECAL ARTWORK 175 T4 333/X3508	1	AVAILABLE TO ORDER	$21.00	Quantity
3	DECAL ARTWORK 175 ECO 333/X7247	1	AVAILABLE TO ORDER	$27.33	Quantity
5	SERVICE DECAL WHEELED SP 332/X7628 333/X5371	1	AVAILABLE TO ORDER	$160.39	Quantity
6	DECAL-ECO 175 334/L4839	1	AVAILABLE TO ORDER	$13.43	Quantity

Showing 1 to 4 of 4 parts
