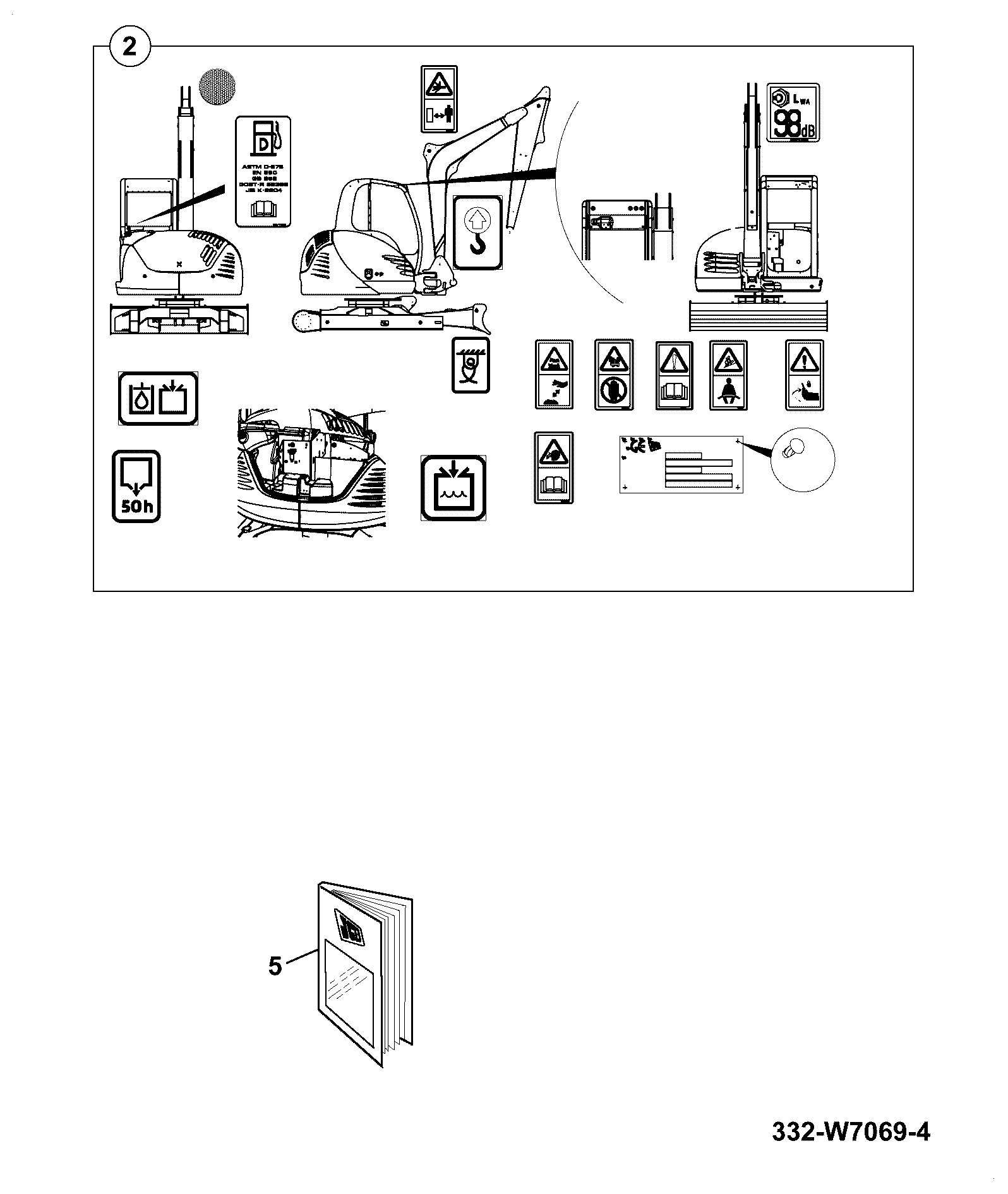

B500-2-2 LABELS GERMAN ASSEMBLY Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
4	GERMAN SERVICE LABEL 817/03000	1	AVAILABLE TO ORDER	$23.37	Quantity
7	DECAL-GREASE POINT 817/02937	1	AVAILABLE TO ORDER	$0.18	Quantity
9	KIT-ENG OIL DRAIN JBH0017	1	AVAILABLE TO ORDER	$179.38	Quantity
10	HOSE OIL DRAIN 231/56502	1	AVAILABLE TO ORDER	$58.16	Quantity
11	GERMAN HANDBOOK 8085 9811/5452	1	AVAILABLE TO ORDER	$412.12	Quantity

Showing 1 to 5 of 5 parts

DIAG-B500-2-1-398209 B500-2-1 LABELS GERMAN ASSEMBLY
View Diagram
DIAG-B500-3-1-398209 B500-3-1 LABELS FRENCH ASSEMBLY
View Diagram
DIAG-B500-4-1-398209 B500-4-1 LABELS DUTCH ASSEMBLY
View Diagram

Previous Assembly DIAG-B500-2-1-398209 B500-2-1 LABELS GERMAN ASSEMBLY Next Assembly DIAG-B500-3-1-398209 B500-3-1 LABELS FRENCH ASSEMBLY
