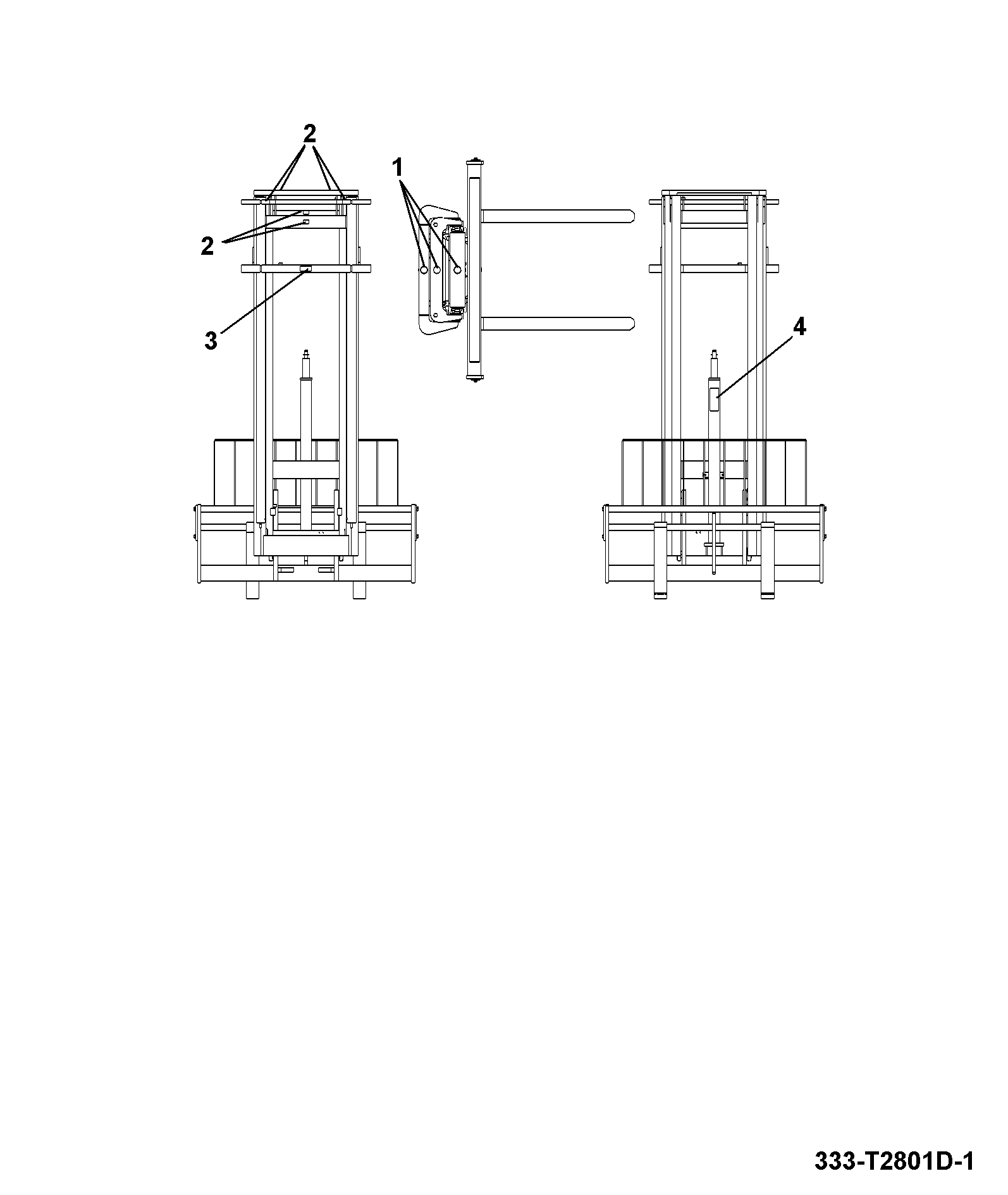

B5-8-101 DECALS WARNING 3.6M DUPLEX MAST Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	ABI MAST 940 3.6m DUPLEX ITA 333/T2800 333/W9006	1	AVAILABLE TO ORDER	$22,381.23	Quantity
1	Label no step 333/C4338	1	AVAILABLE TO ORDER	$7.88	Quantity
2	Label hands off 333/C4369	1	AVAILABLE TO ORDER	$10.85	Quantity
3	Label warning 333/C4379	1	AVAILABLE TO ORDER	$23.86	Quantity

Showing 1 to 4 of 4 parts
