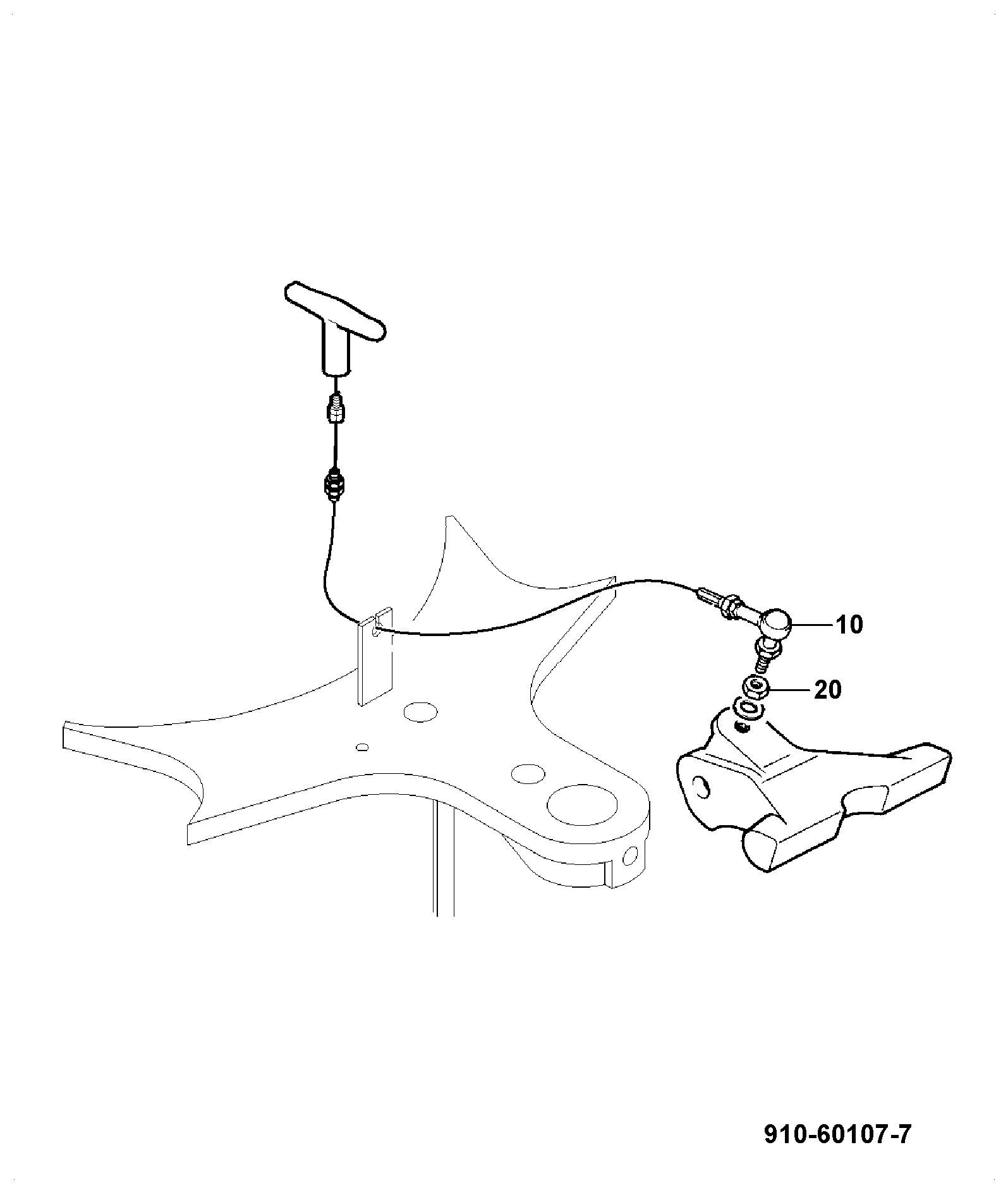

B470-25-1 BOOM/SLEW/SWING LOCK/STOP CABLE C/M Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	CABLE boomlock c/m 910/60107	1	AVAILABLE TO ORDER	$412.61	Quantity
2	GROMMET 826/10937	1	AVAILABLE TO ORDER	$1.16	Quantity
3	PLASTIC WASHER 18x28x7 826/10938	1	AVAILABLE TO ORDER	$4.38	Quantity
4	SWITCH BASE LINK 332/E3016	1	AVAILABLE TO ORDER	$134.67	Quantity
5	BLANK panel switch 701/80265	1	4 IN STOCK	$9.61	Quantity

Showing 1 to 5 of 5 parts
