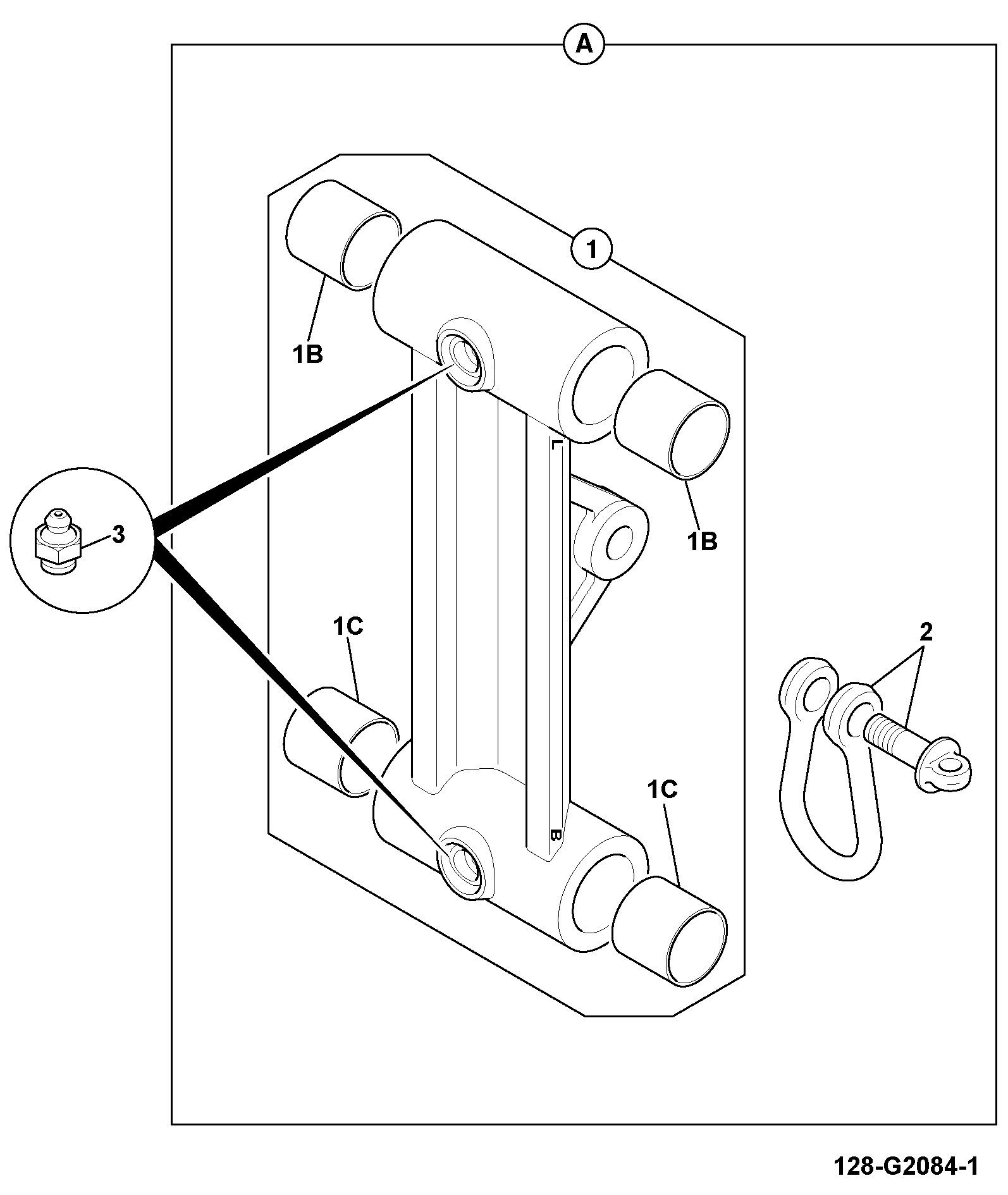

B470-2-1 BOOM/SLEW/SWING LOCK/STOP LOCK BOOM 15’6″ CENTREMOUNT Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	M/Cd BOOMLOCK 15ft6 C/M 332/F8666	1	AVAILABLE TO ORDER	$138.81	Quantity
2	PIVOT PIN BOOMLOCK 811/70099	1	AVAILABLE TO ORDER	$5.75	Quantity
3	CIRCLIP 2203/0035	1	10 IN STOCK	$1.75	Quantity

Showing 1 to 3 of 3 parts
