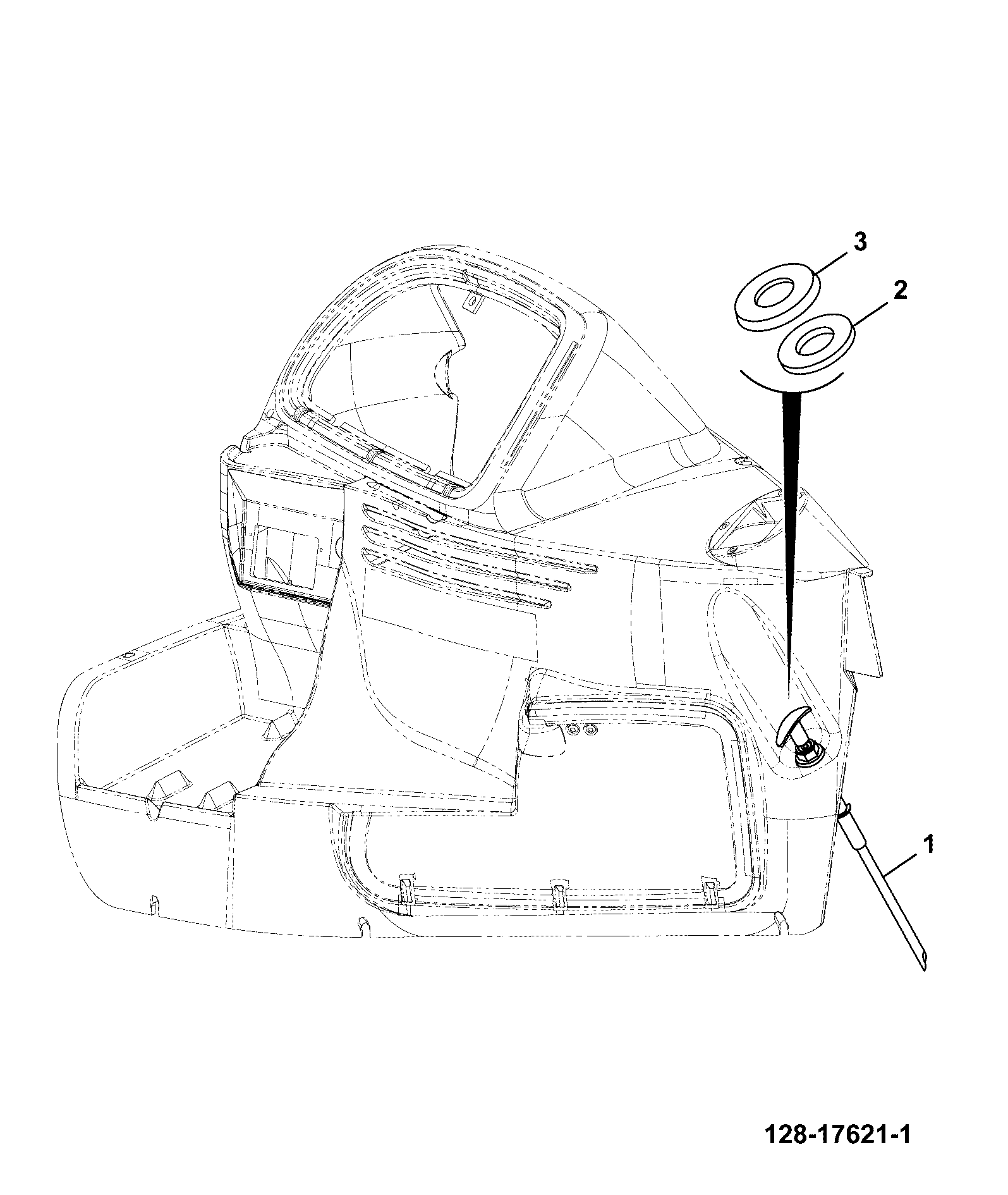

B470-15-1 BOOM/SLEW/SWING LOCK/STOP ASSEMBLY CABLE, C/M Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	M10 HARDENED WASHER 823/00599	1	AVAILABLE TO ORDER	$2.00	Quantity
2	CAP 16mm BLACK PLASTIC 835/00176	1	AVAILABLE TO ORDER	$4.08	Quantity

Showing 1 to 2 of 2 parts
