Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | WEAR PAD CLAMP PLATE TOP 400/X0881 | 1 | $220.33 | |||
| 3 | M8 X 16 CSK PATCH 401/E3765 | 1 | $7.69 | |||
| 4A | CIRCLIP 2203/1040 | 1 | $1.36 | |||
| 5 | WASHER 823/00411 | 1 | $9.78 | |||
| 6 | BOLT M24X130 1315/4023Z | 1 | $25.71 | |||
| 7 | NUT M24 STD PLAIN 1370/0901Z | 1 | $11.28 | |||
| 10 | NUT M20 THIN PLAIN 1370/0702Z | 1 | $0.00 | |||
| 11 | SET SCREW M20x50 1315/0812Z | 1 | $2.75 | |||
| 12 | BOLT M24X120 1315/4022Z | 1 | $94.25 | |||
| 16 | CAP SCREW M8x45 1391/3311D | 1 | $18.70 | |||
| 17 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
| 19 | LOCK-NUT M_8 FLANGE 1370/0209D | 1 | $0.27 | |||
Showing 1 to 12 of 12 parts
Related Assemblies
-
DIAG-B405-2-1-394728 B405-2-1 ACTUATOR ASSEMBLIES SIDESHIFT POWERSLIDE
View Diagram -

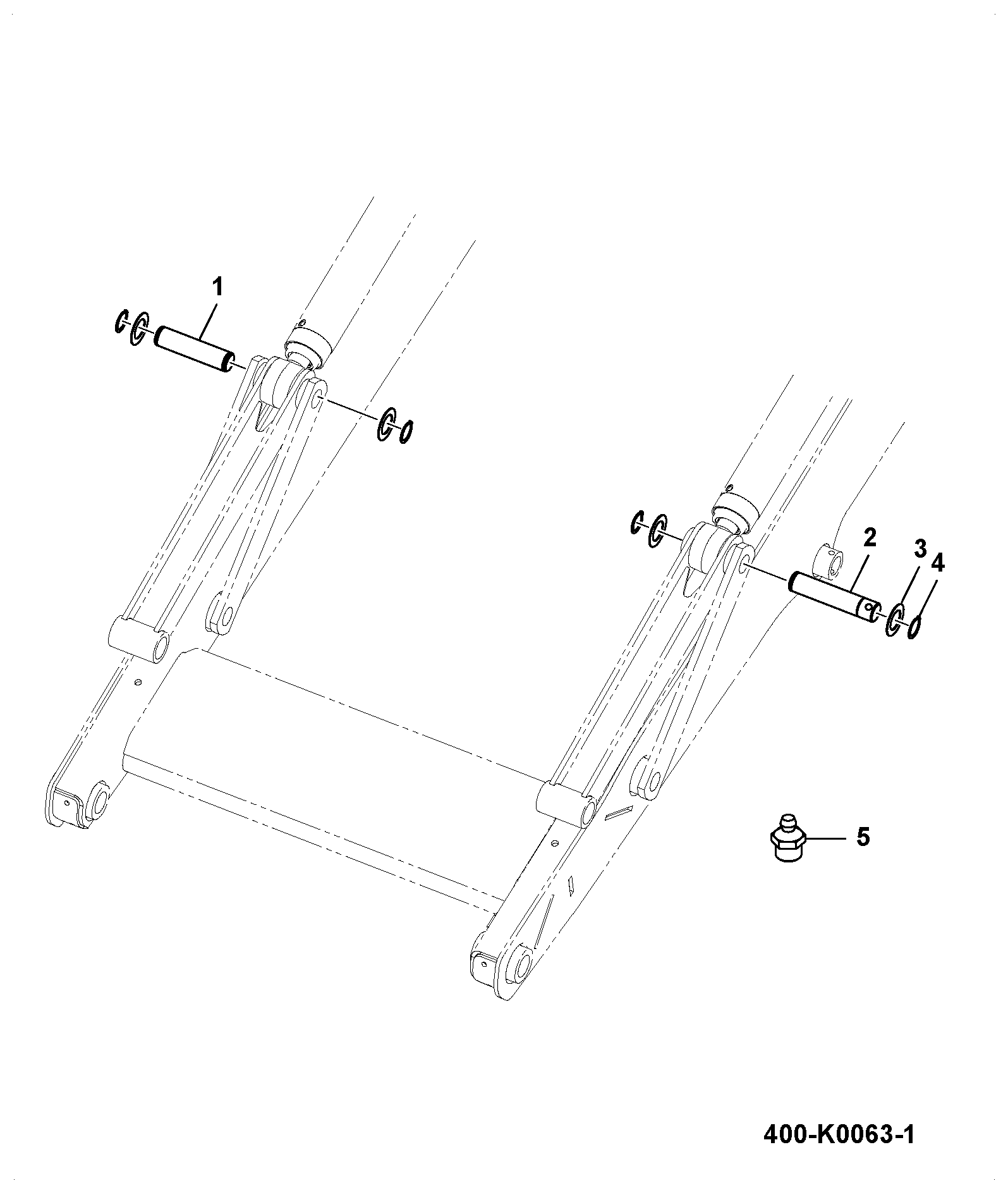

DIAG-B330-56-1-394728 B330-56-1 LOADER PIVOTS LIFT RAM EYE END, ITALIAN, 3CX COMPACT
View Diagram -

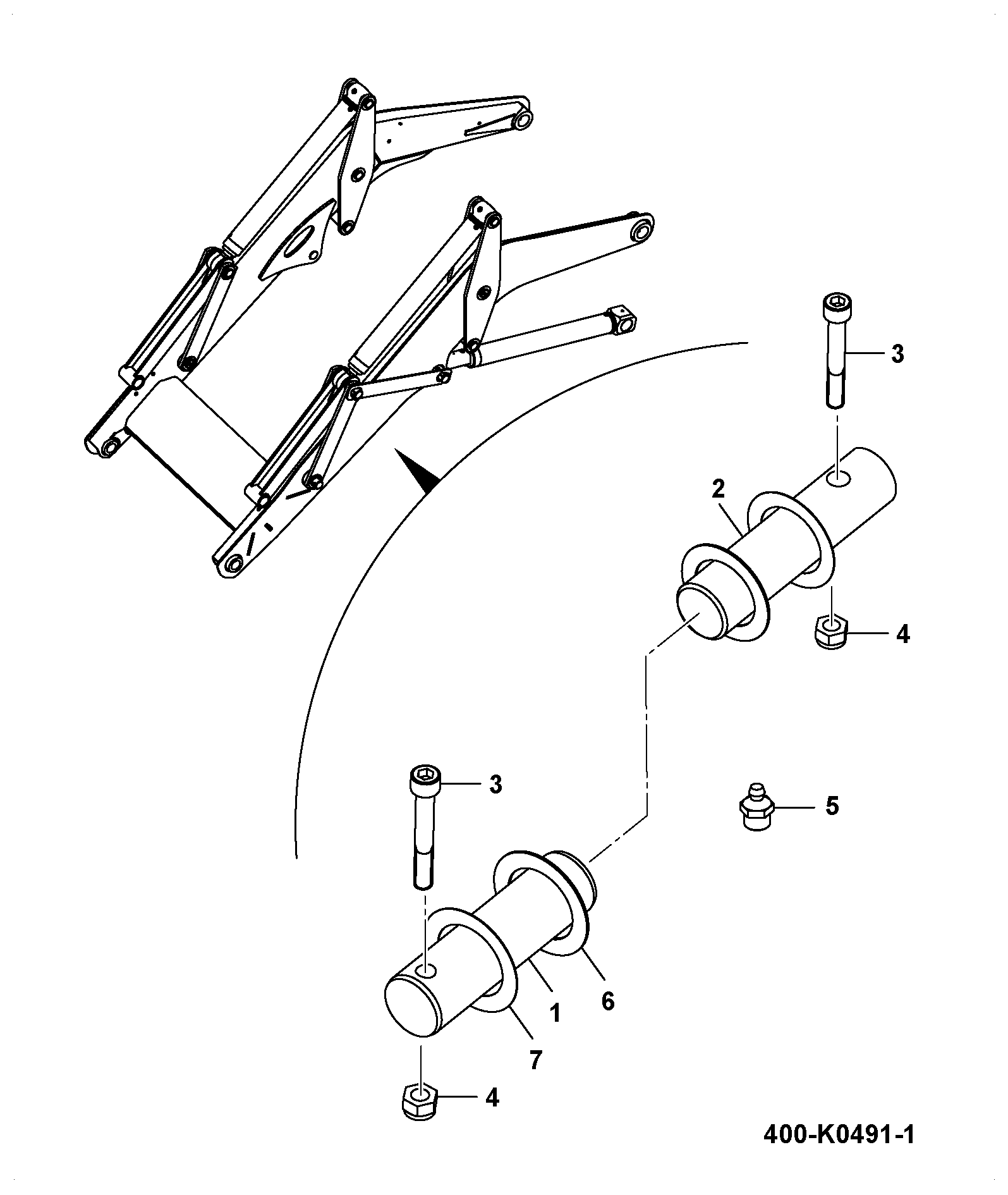

DIAG-B330-55-1-394728 B330-55-1 LOADER PIVOTS SHOVEL RAM EYE END, ITALIAN, 3CX COMPACT
View Diagram
