Kubota SVL97-2C B41104 WIRE HARNESS(ENGINE) Parts Diagram

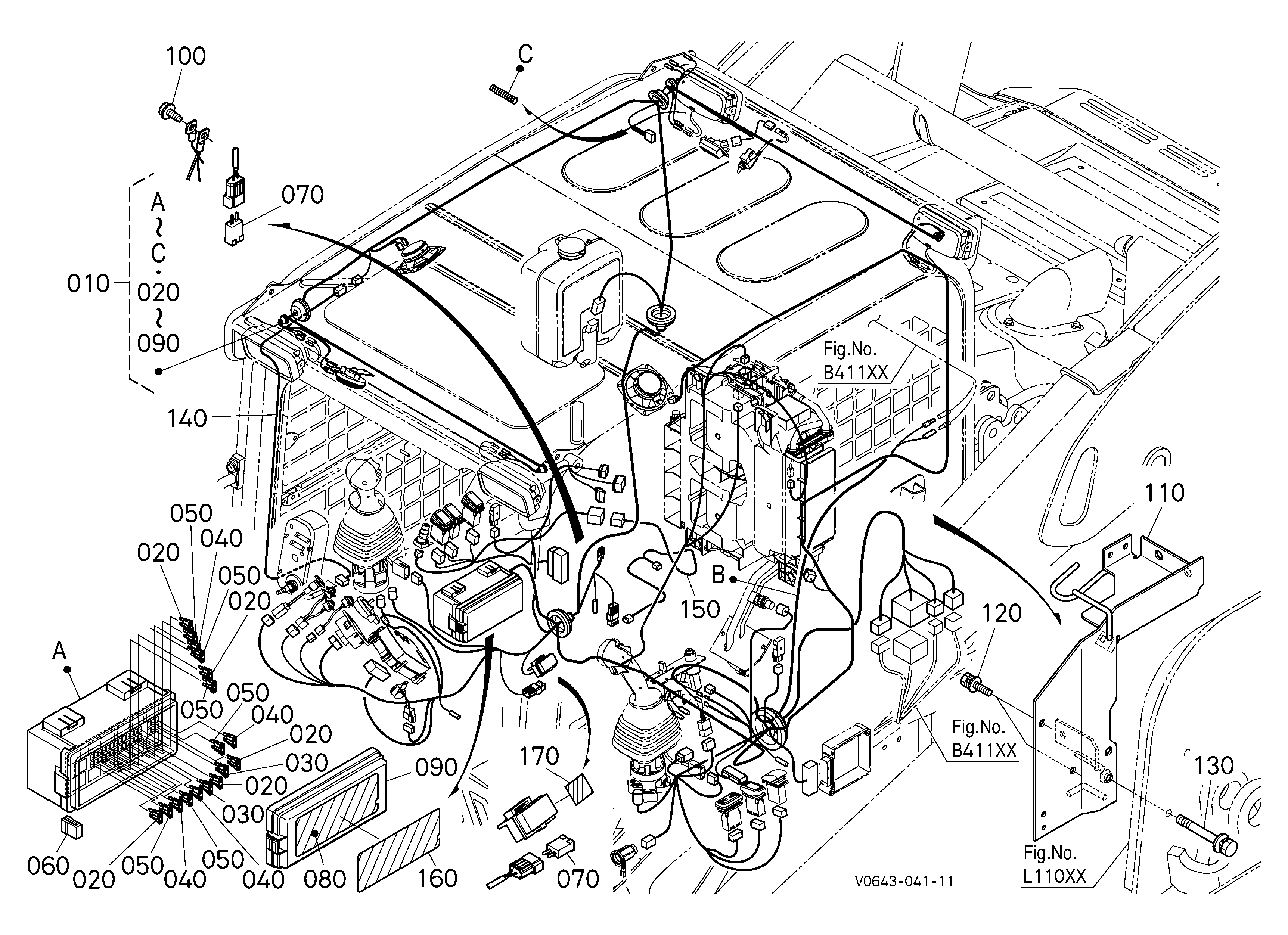

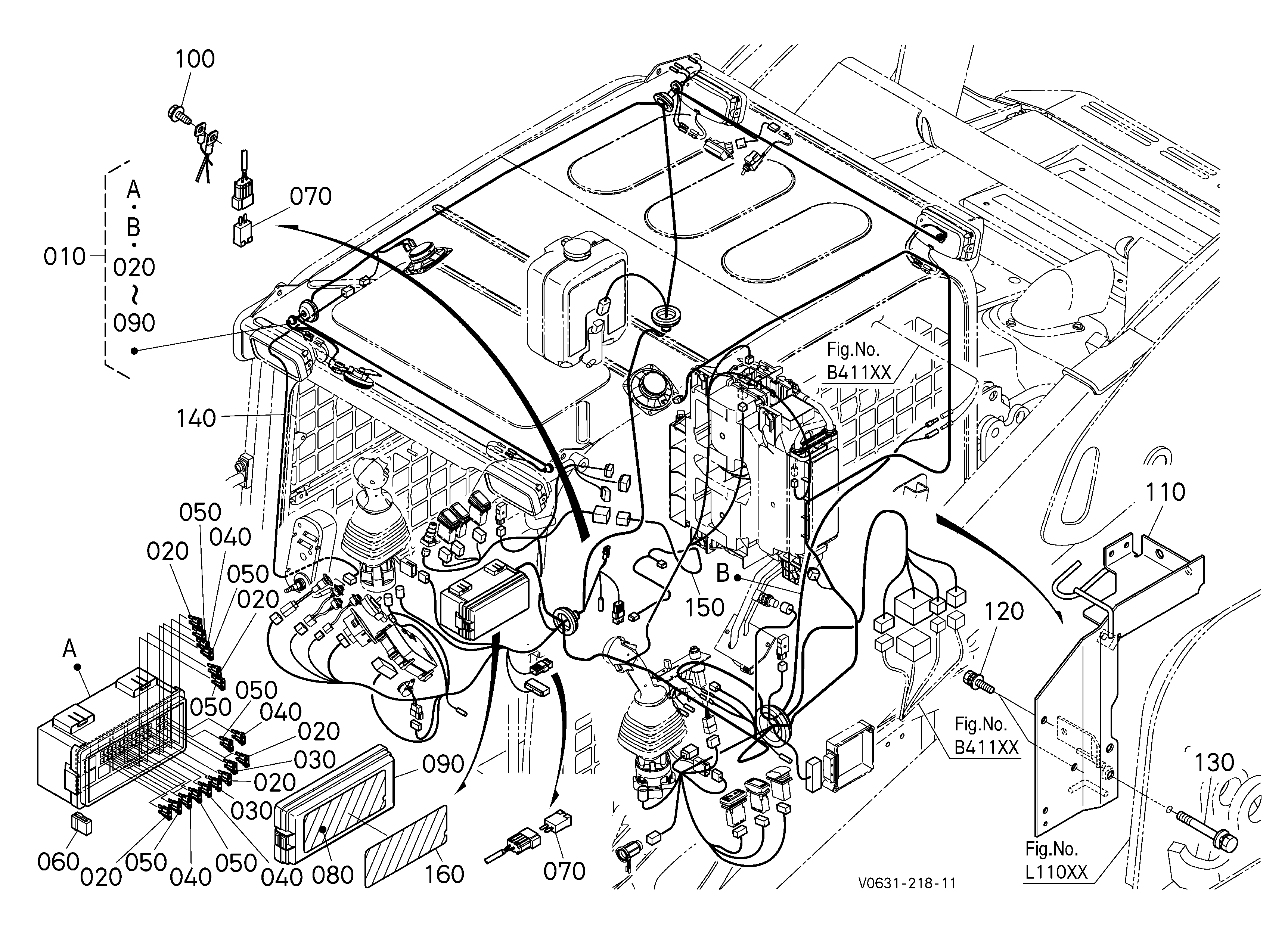

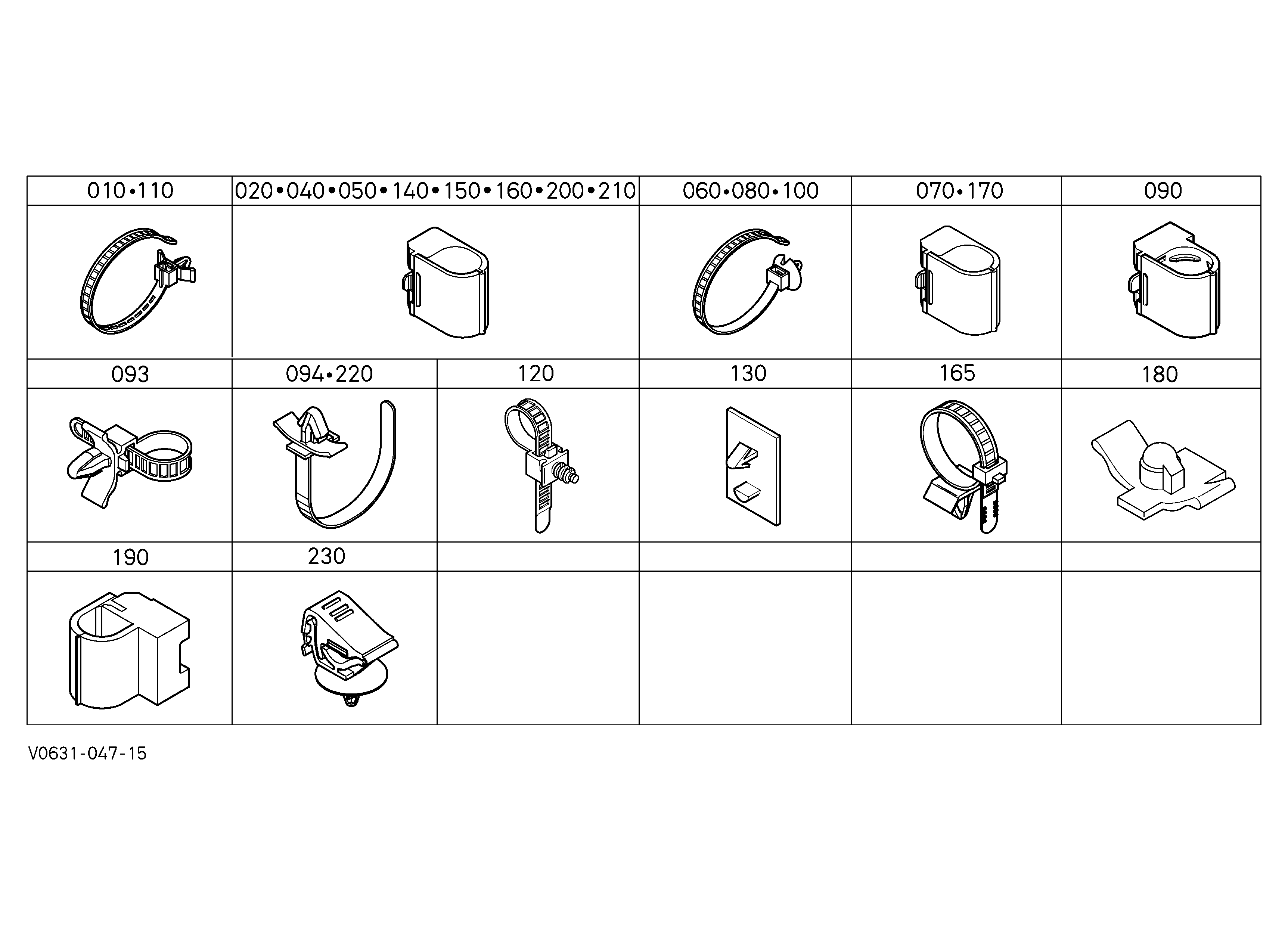

Exploded-view parts diagram "B41104 WIRE HARNESS(ENGINE)" for the Kubota SVL97-2C. 26 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | W/H(ENGINE,C) V0641-53463 V0641-53480 | 1 | $3,223.65 | |||
| 010 | W/H,ASSY(ENGINE,C) V0641-53630 | 1 | $3,219.82 | |||
| 020 | FUSE RD809-53910 | 1 | $13.49 | |||
| 030 | FUSE, 60A T1270-30500 | 1 | $15.10 | |||
| 040 | 30 Amp Fuse T1060-30510 | 1 | $12.54 | |||
| 050 | FUSE (50A) T2350-30600 | 1 | $23.56 | |||
| 060 | FUSE, SLOW-BLOW V0621-53980 | 1 | $16.68 | |||
| 065 | FUSE (120A) 3N300-75560 | 1 | $18.70 | |||
| 066 | Slow Blow Fuse T1060-30520 | 1 | $17.00 | |||
| 070 | DIODE RP421-54210 | 1 | $36.79 | |||
| 080 | LABEL ENGINE, SB V0631-53750 | 1 | $61.27 | |||
| 090 | LABEL ENGINE,SBF V0631-53780 | 1 | $61.27 | |||
| 100 | LABEL ENGINE, SB V0631-57930 | 1 | $61.27 | |||
| 110 | LABEL ENGINE,REL V0631-53790 | 1 | $61.27 | |||
| 120 | LABEL ENGINE,FUS V0631-57920 | 1 | $61.27 | |||
| 125 | W/H(PRESSURE,100) V0633-53810 | 1 | $55.41 | |||
| 130 | Flange Bolt - M8 x 1.25 x 16 mm 01754-50816 | 1 | $4.33 | |||
| 140 | Bolt (Fastener) 01025-50616 | 1 | $1.10 | |||
| 150 | W/H V0621-53492 | 1 | $123.82 | |||
| 160 | Flange Nut TA140-18310 02751-50080 | 1 | $4.62 | |||
| 180 | LABEL(SBF1,FR) V0631-59750 | 1 | $3.35 | |||
| 190 | LABEL(SBF2,C,FR) V0631-59780 | 1 | $3.25 | |||
| 200 | LABEL(SBF3,C,FR) V0631-59930 | 1 | $3.25 | |||
| 210 | LABEL(RELAY,C,FR V0631-59790 | 1 | $10.76 | |||
| 220 | LABEL(FUSE BOX,C V0631-59920 | 1 | $5.73 | |||
| 230 | W/H(GND) V0631-53810 | 1 | $64.69 | |||
Showing 1 to 26 of 26 parts
