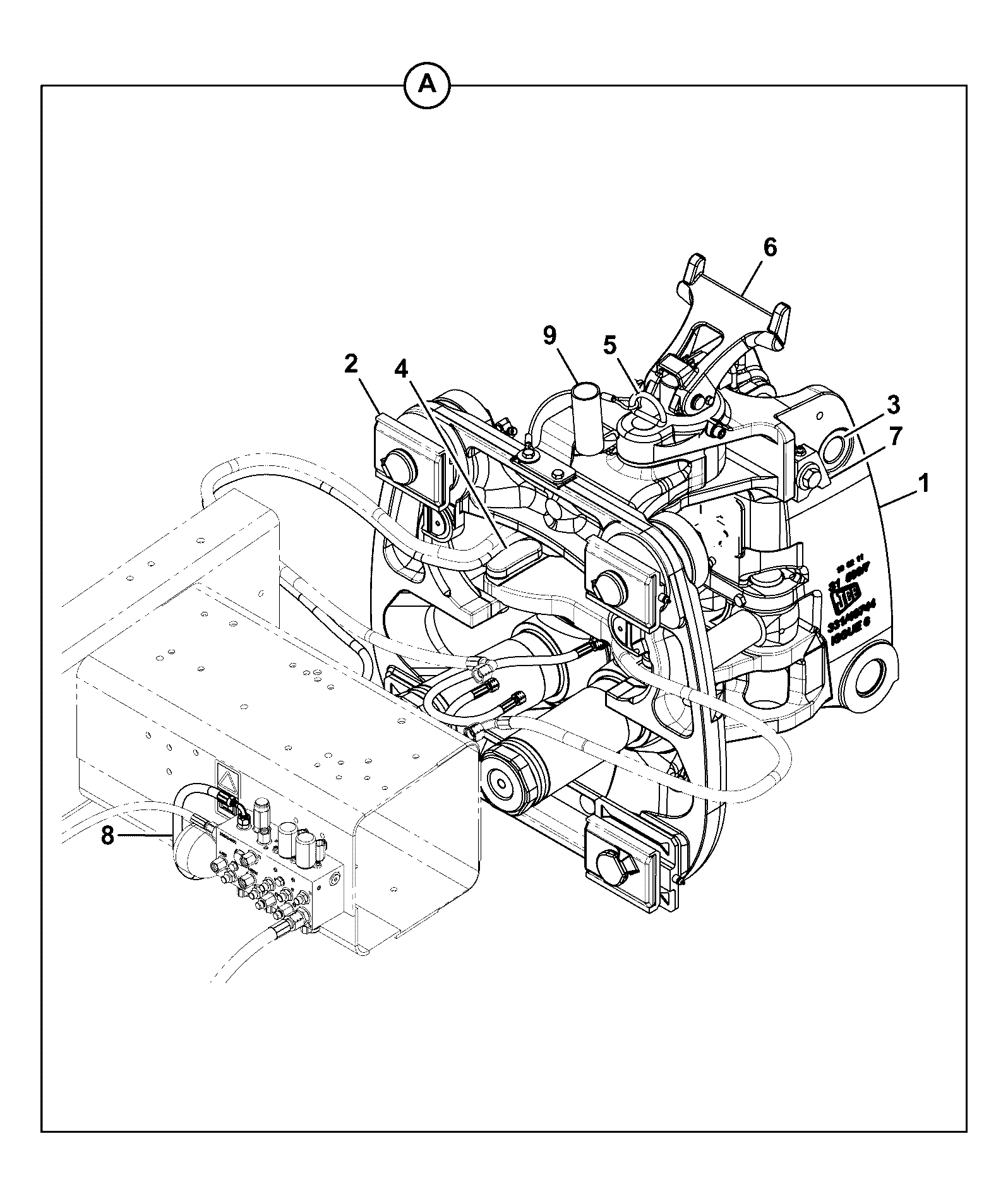

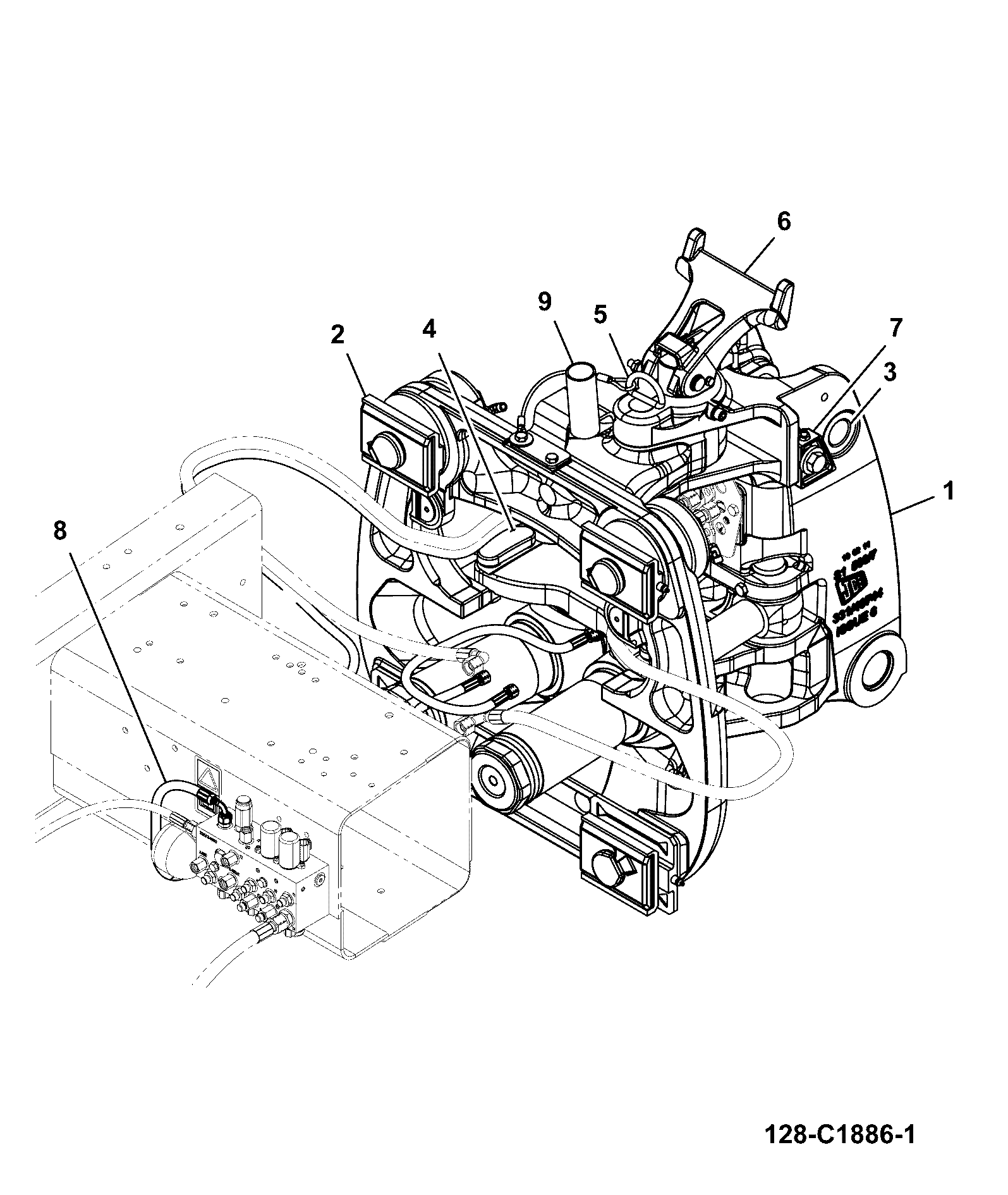

B405-3-21 ACTUATOR ASSEMBLIES SIDESHIFT 14′ WITH BOOM LOCK Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	M/Cd K/POST CARRIAGE 589/10273 333/E5750	1	AVAILABLE TO ORDER	$4,316.06	Quantity
2	GA KINGPOST s/s 14 128/15202 128/E5496	1	AVAILABLE TO ORDER	$5,342.39	Quantity
5	GA RAM Slew 100x60 (REC Yellow 2008) 559/60215	1	AVAILABLE TO ORDER	$4,167.70	Quantity

Showing 1 to 3 of 3 parts
