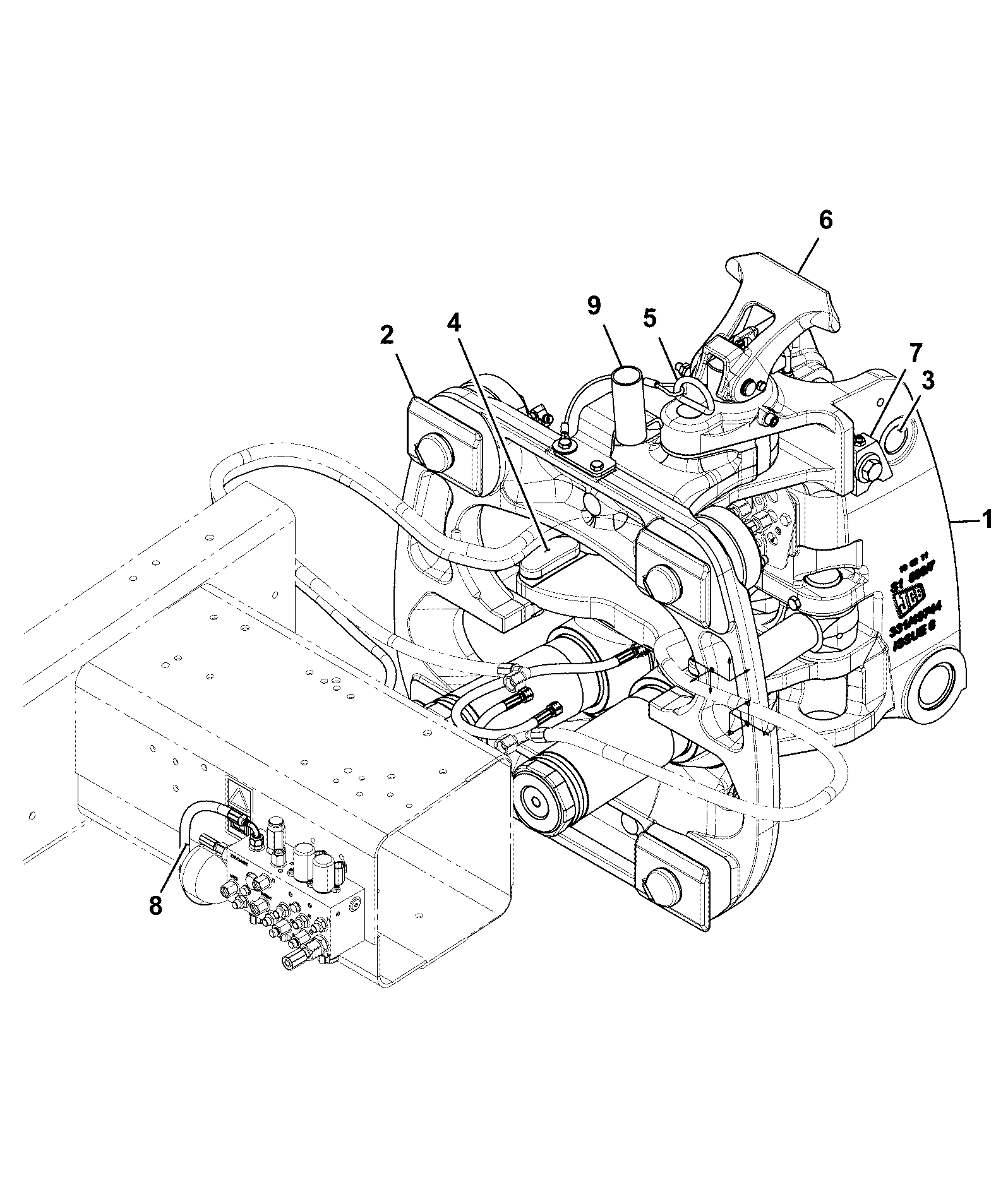

B405-15-1 ACTUATOR ASSEMBLIES SIDESHIFT 15’6″ WITH BOOM LOCK Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	M/Cd K/POST CARRIAGE 589/10273 333/E5750	1	AVAILABLE TO ORDER	$4,316.06	Quantity
2	GA KINGPOST s/s 15 128/15203 128/E5529	1	AVAILABLE TO ORDER	$5,884.55	Quantity
5	GA RAM Slew 100x60 (REC Yellow 2008) 559/60215	1	AVAILABLE TO ORDER	$4,167.70	Quantity

Showing 1 to 3 of 3 parts

DIAG-B400-110-1-395007 B400-110-1 EXCAVATOR INSTALLATION ASSEMBLIES ACTUATOR 15' 6" SIDESHIFT
View Diagram
DIAG-B420-15-1-395007 B420-15-1 CARRIAGE SIDESHIFT CLAMPING, 15'6"
View Diagram
DIAG-E140-330-1-395012 E140-330-1 HYDRAULIC CIRCUITS EXCAVATOR END DIPPER RAM PILOT, LOCKOUT 15' 6" SIDESHIFT EASYCONTROL
View Diagram
