Kubota U35 B40400 SWITCH AND METER Parts Diagram

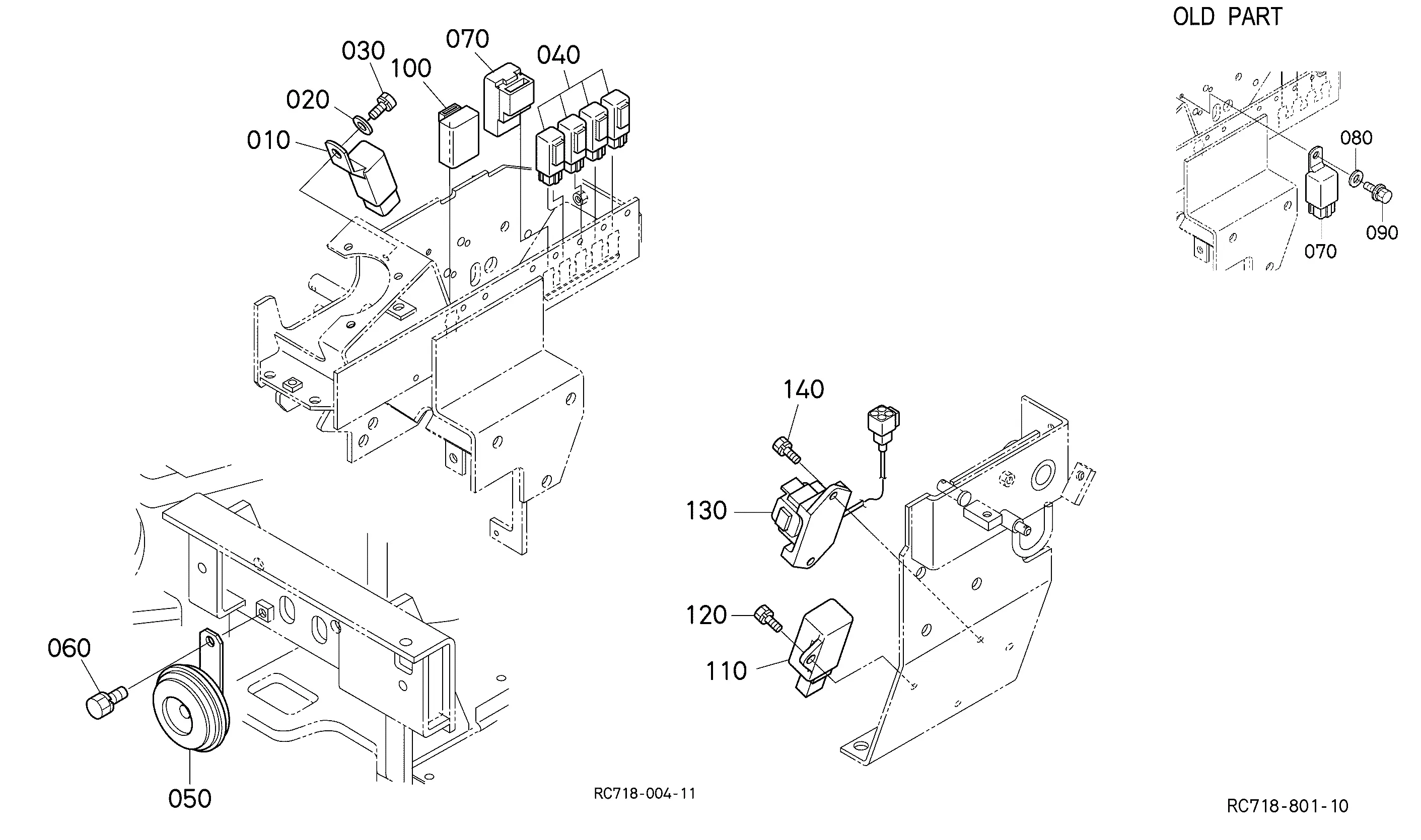

Exploded-view parts diagram "B40400 SWITCH AND METER" for the Kubota U35. 25 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.

Scroll to zoom Click a part # to view details

Ref # Part Number Qty. Avl. Price (USD) Action
010 ASSY METER RC417-53112 RC417-53113 1 AVAILABLE TO ORDER $781.60
020 BULB W/ SOCKET- RP402-53380 1 AVAILABLE TO ORDER $15.10
030 BULB T0070-31460 52300-41420 1 AVAILABLE TO ORDER $12.08
040 BULB W/SOCKET- K RP402-53390 1 AVAILABLE TO ORDER $14.67
050 ASSY GAUGE RB411-53910 1 AVAILABLE TO ORDER $154.76
060 ASSY GAUGE RB411-53920 1 AVAILABLE TO ORDER $154.76
070 ASSY CASE, SUB RC417-53190 1 AVAILABLE TO ORDER $114.91
080 ASSY TACHOMETER RC417-53130 RB411-53930 1 AVAILABLE TO ORDER $713.35
090 GLASS,FRONT RC101-53090 1 AVAILABLE TO ORDER $264.98
095 ASSY PLATE, SUB RC417-53140 1 AVAILABLE TO ORDER $85.00
100 ASSY PLATE, WIND RC417-53210 1 AVAILABLE TO ORDER $180.42
110 Screw with Washer 03024-50416 03024-70416 1 AVAILABLE TO ORDER $0.60
120 Plain Washer 04013-60040 04013-70040 1 AVAILABLE TO ORDER $0.36
130 CABLE RC418-53310 Discontinued 1 NO LONGER AVAILABLE $45.57
150 WIRE, ENGINE STO RC417-53232 RC717-53230 1 1 IN STOCK $51.84
160 KEY STARTER RC411-53933 Discontinued 1 NO LONGER AVAILABLE $22.11
170 SWITCH,STARTER RC411-53964 HRC40-53960 1 4 IN STOCK $127.74
180 NUT RC411-53940 1 AVAILABLE TO ORDER $12.14
190 COVER RC411-53952 1 AVAILABLE TO ORDER $13.93
200 SWITCH, WORK LIG 36919-54220 36919-54222 1 AVAILABLE TO ORDER $78.52
210 ASSY SOCKET RC418-53440 1 AVAILABLE TO ORDER $74.04
210 ASSY SOCKET RC418-53450 1 2 IN STOCK $74.00
210 GROMMET 68331-51432 68331-51430 1 AVAILABLE TO ORDER $11.19
220 LIGHTER, CIGARET 36530-54220 68331-53170 1 AVAILABLE TO ORDER $47.51
230 SWITCH, ASSY (HE 68311-53540 Discontinued 1 NO LONGER AVAILABLE $148.23

Showing 1 to 25 of 25 parts
