Kubota U25S B40000 BATTERY Parts Diagram

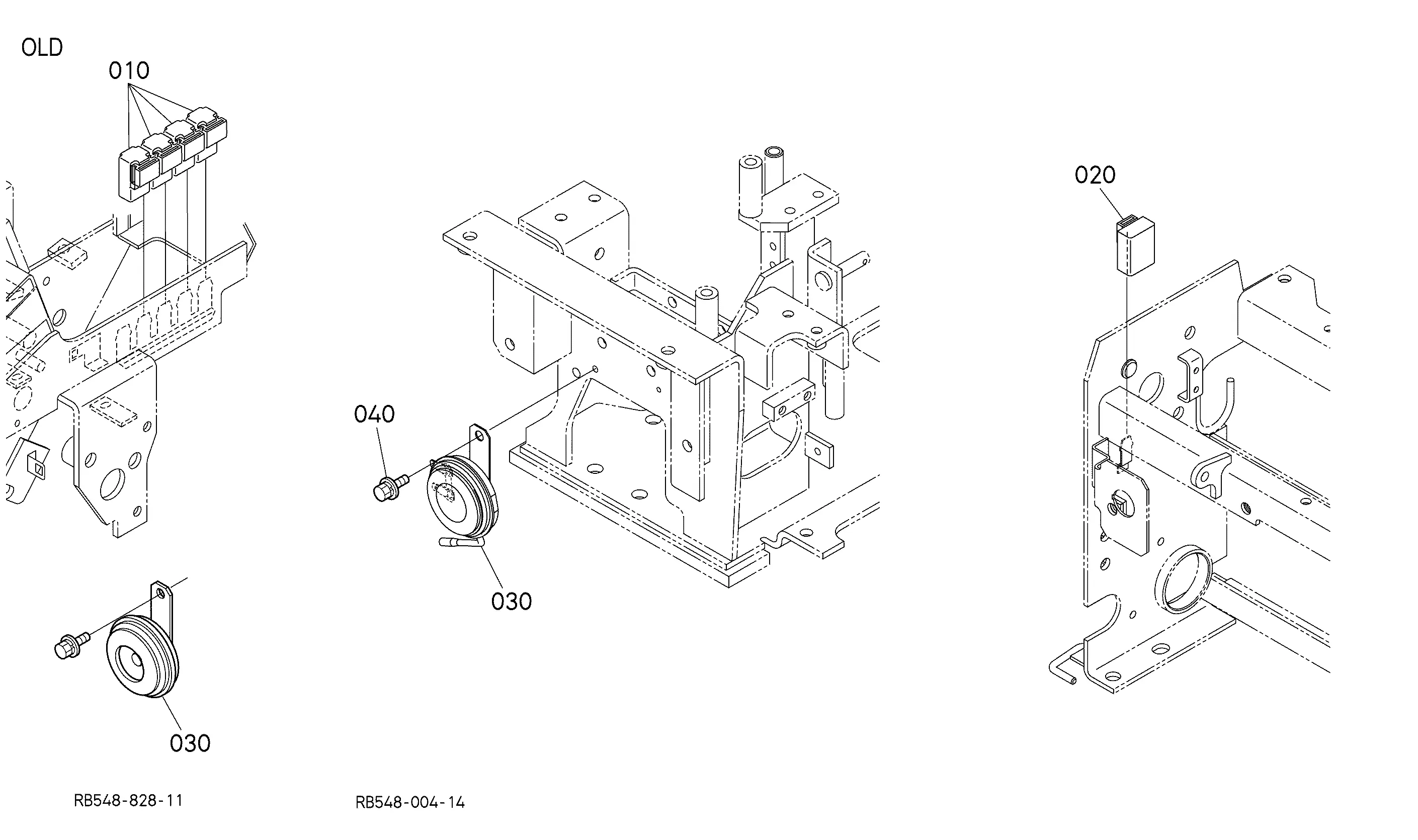

Exploded-view parts diagram "B40000 BATTERY" for the Kubota U25S. 22 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 020 | ASSY BRACKET RB411-53059 | 1 | $369.83 | |||
| 020 | BRACKET,ASSY(BATTERY RB411-53062 | 1 | $353.89 | |||
| 030 | CUSHION RC601-53030 | 1 | $10.48 | |||
| 040 | CUSHION, BATTERY RB411-53180 | 1 | $13.28 | |||
| 050 | CUSHION, BATTERY RB411-53080 | 1 | $15.25 | |||
| 060 | CUSHION RB411-51250 | 1 | $6.57 | |||
| 070 | CUSHION, BATTERY RB411-53090 | 1 | $12.40 | |||
| 075 | CUSHION, BATTERY RB411-53130 | 1 | $15.25 | |||
| 080 | CUSHION RB411-51270 | 1 | $18.21 | |||
| 090 | Equipment Bolt for Seat, ROPS, and Battery Components 01135-51025 | 1 | $2.17 | |||
| 100 | BRACKET (BATTERY RB411-53165 | 1 | $39.17 | |||
| 110 | CUSHION RB411-53272 | 1 | $2.06 | |||
| 120 | BOLT 68131-41173 | 1 | $10.00 | |||
| 130 | Lock Nut (Locknut) - M6x1.25 W2336-06100 02552-50060 | 1 | $1.51 | |||
| 150 | CORD, BATTERY (+ RB411-53223 | 1 | $281.05 | |||
| 170 | CORD, BATTERY (- RB411-53263 | 1 | $75.16 | |||
| 180 | CORD RB411-53250 | 1 | $26.32 | |||
| 190 | BOLT T1060-30370 | 1 | $1.91 | |||
| 200 | Bolt - M10 x 1.25 x 20mm 01135-51020 | 1 | $1.99 | |||
| 210 | COVER, BATTERY RB411-53280 | 1 | $13.27 | |||
| 210 | COVER,BATTERY RB411-53282 | 1 | $11.24 | |||
| 230 | Plain Washer (Flat Washer) 04015-50060 | 1 | $0.60 | |||
Showing 1 to 22 of 22 parts
