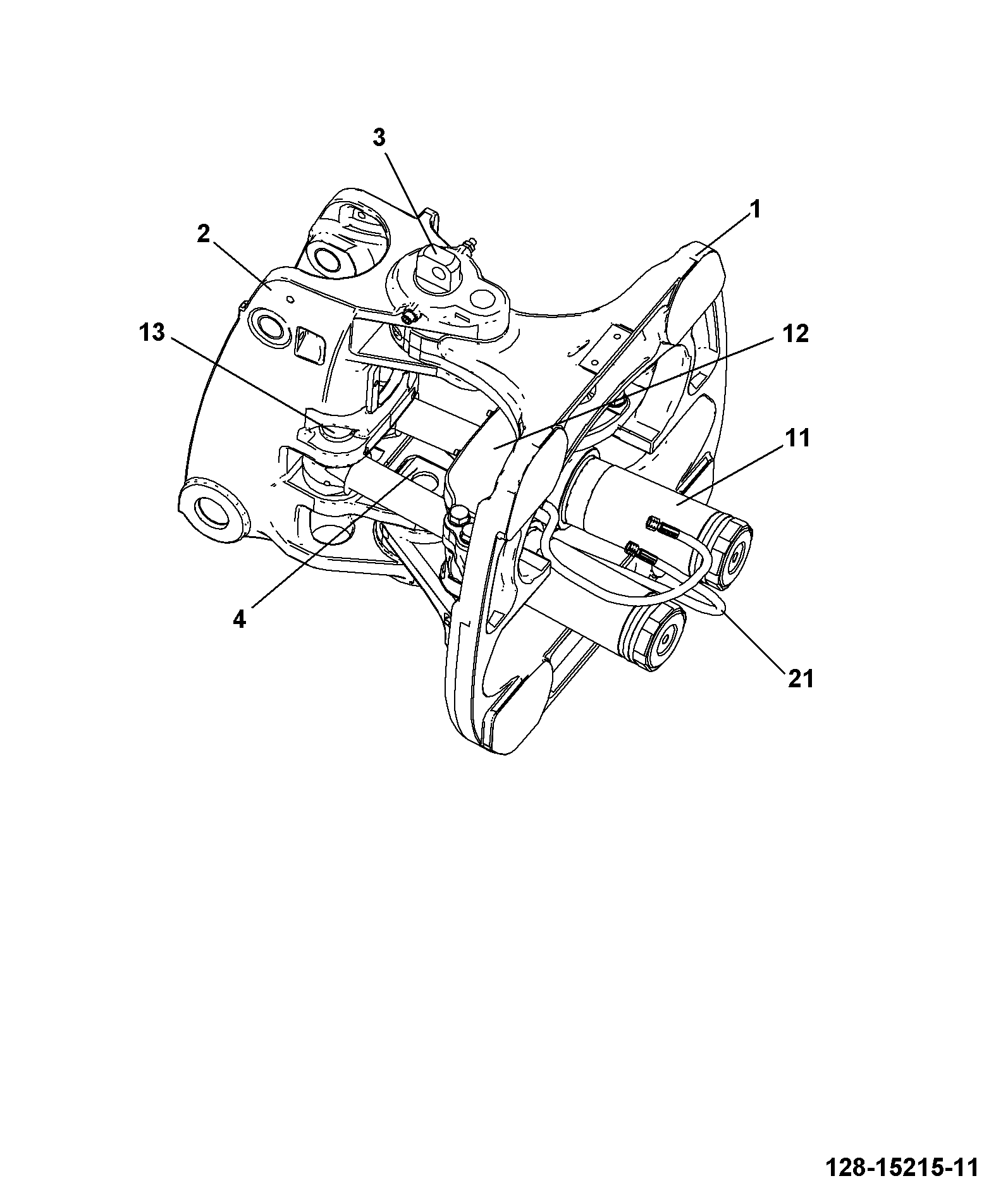

B400-11-103 EXCAVATOR INSTALLATION ASSEMBLIES 15’6″ EXTENDING DIPPER, SIDESHIFT Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
2	MCD CARRIER 15FT6 128/F8877	1	AVAILABLE TO ORDER	$6,845.13	Quantity
3	GA INNER 15FT EXTDIP (PAINTED) 128/10773 128/A1071	1	AVAILABLE TO ORDER	$4,545.01	Quantity

Showing 1 to 2 of 2 parts

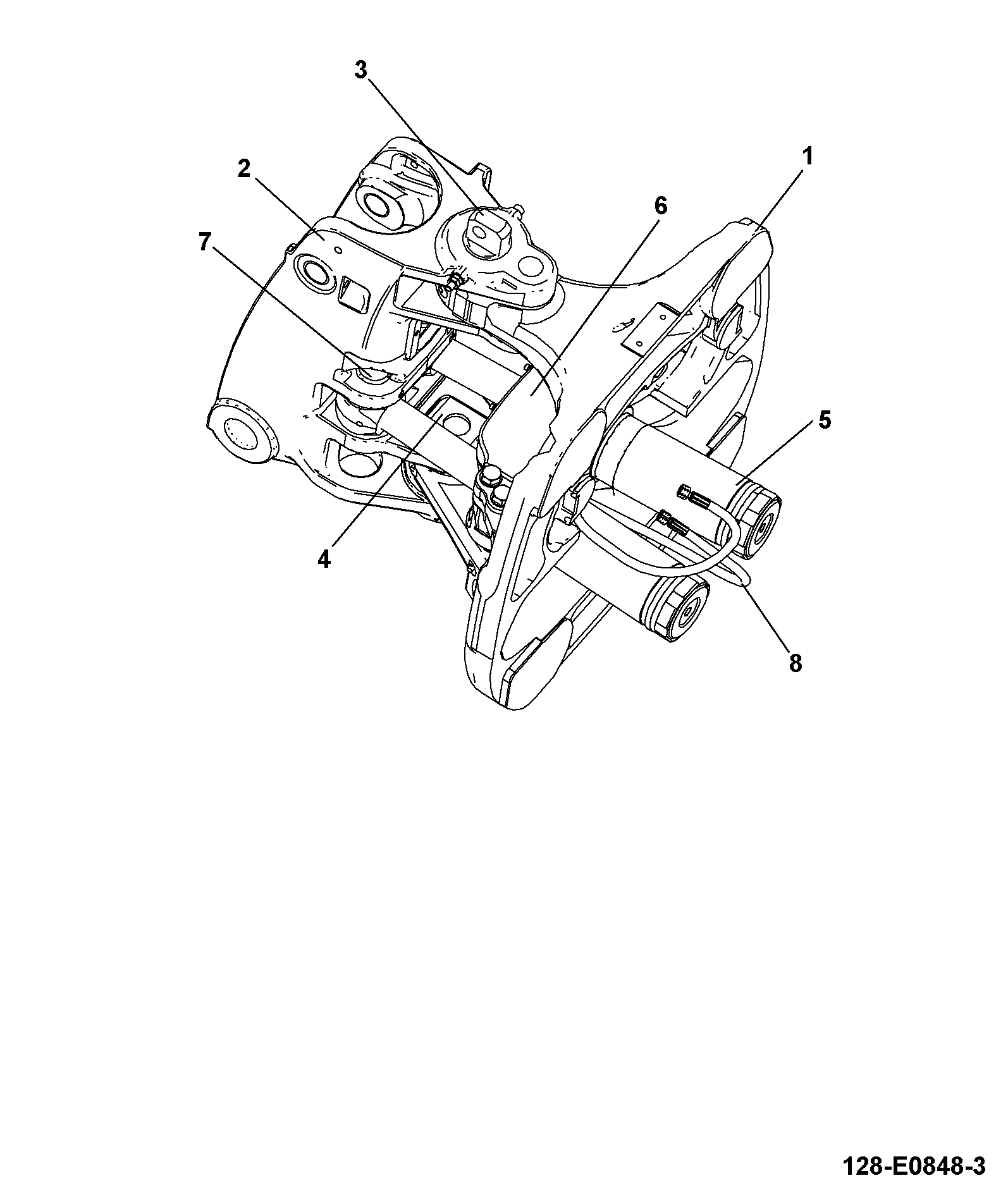

DIAG-B400-11-104-394936 B400-11-104 EXCAVATOR INSTALLATION ASSEMBLIES 15'6" EXTENDING DIPPER, SIDESHIFT
