B400-100-1 EXCAVATOR INSTALLATION ASSEMBLIES 14’0″ FIXED DIPPER, STANDARD LIFT Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	GA BOOM 14ft stdli 126/02332 128/E0990	1	AVAILABLE TO ORDER	$7,258.33	Quantity	Quantity
2	GA DIPPER 14' stdlift 126/01881 128/15167	1	AVAILABLE TO ORDER	$3,879.46	Quantity	Quantity

Showing 1 to 2 of 2 parts

DIAG-B440-30-1-394817 B440-30-1 DIPPER 14'0" STANDARD LIFT
View Diagram

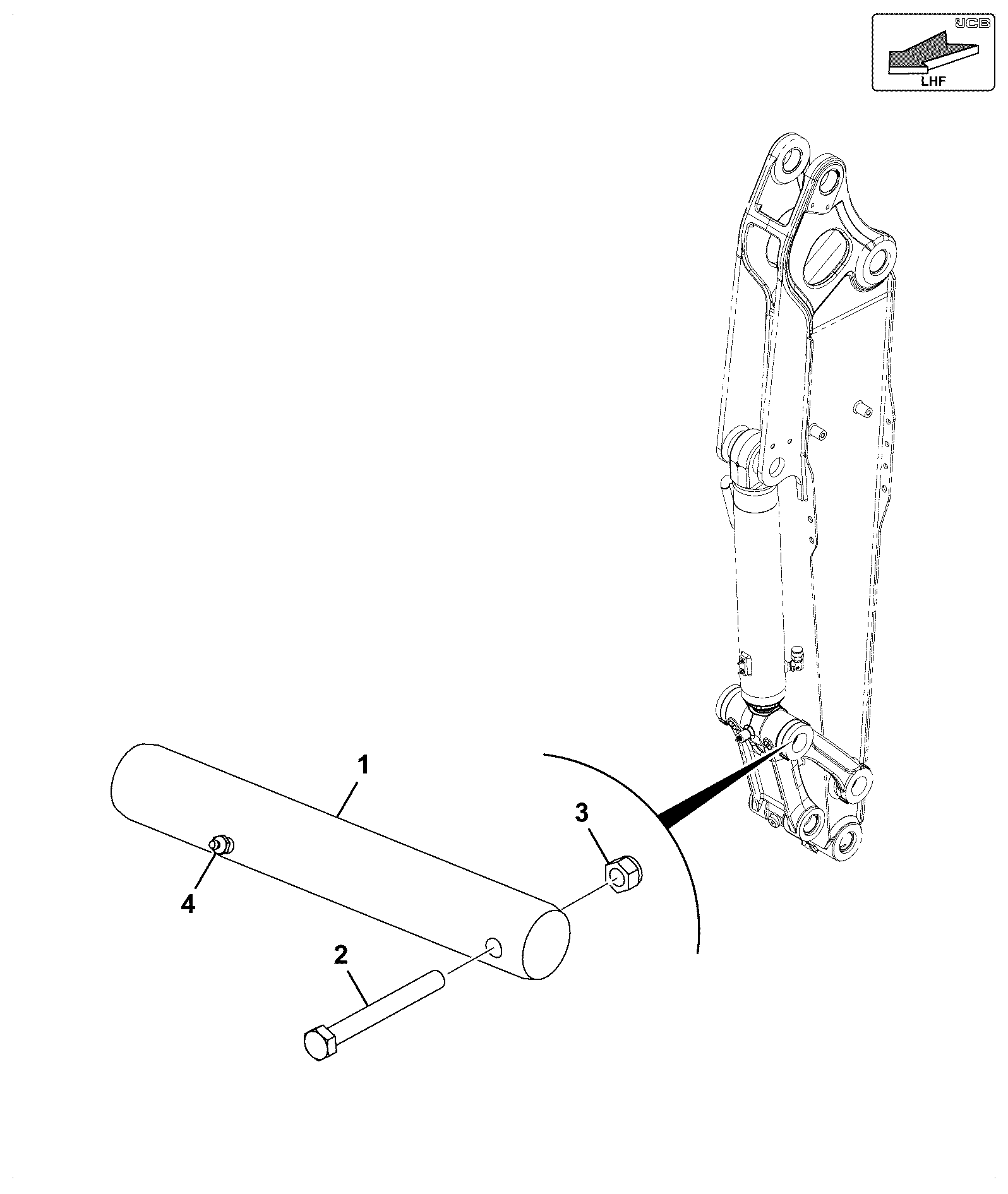

DIAG-B445-120-1-394817 B445-120-1 EXCAVATOR PIVOT PINS ASSEMBLY DIPPER RAM TO DIPPER, 14' FIXED DIPPER
