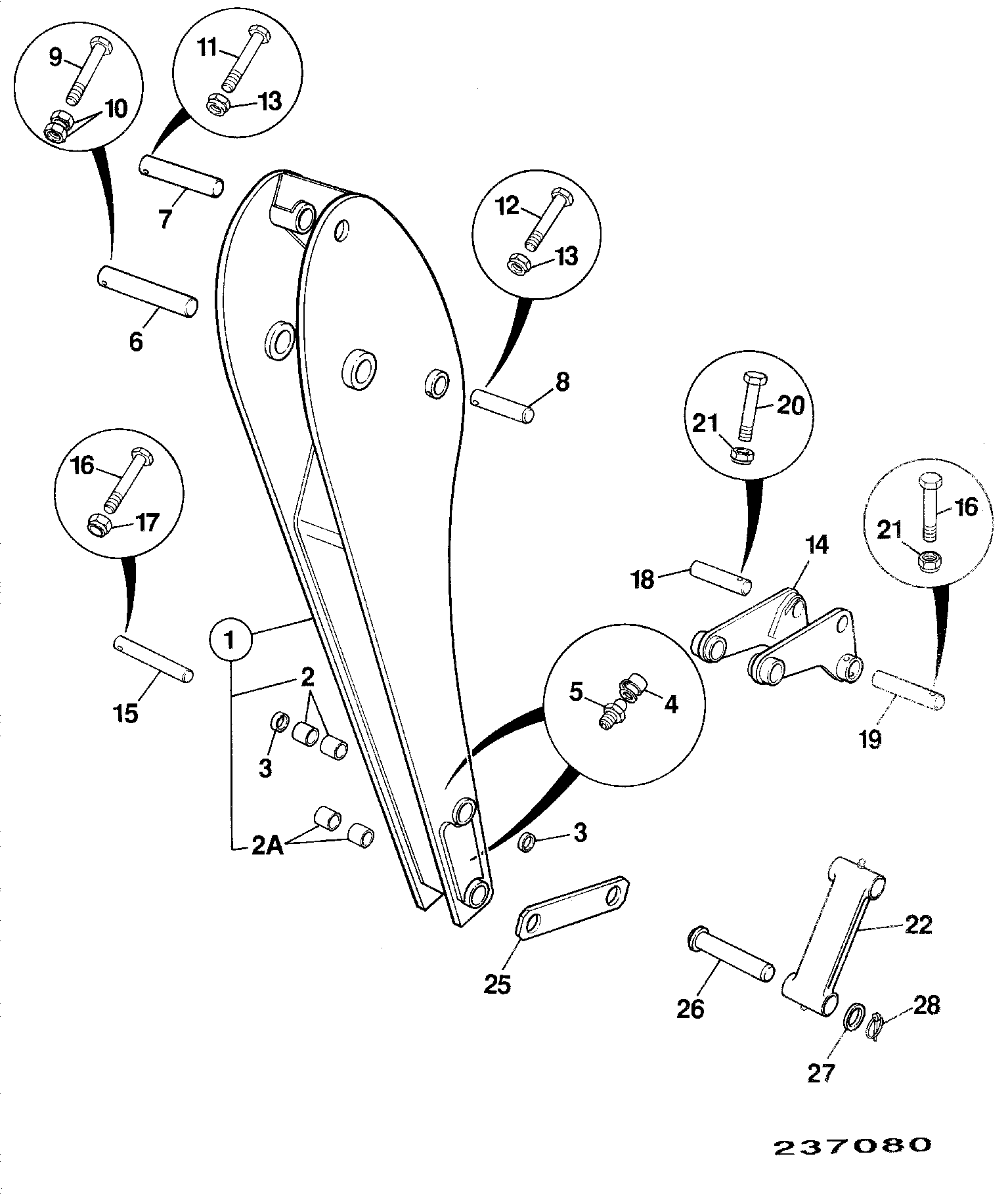

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| BOLT 3/8UNFx3-1/2" 1305/3226Z | 1 | $5.64 | ||||
| LOCKING BOSS 829/01201 | 1 | $11.19 | ||||
| PAINTED INNER 14' EXTDIP H/L 128/10774 | 1 | $5,925.23 | ||||
| PIVOT BOSS 46x63.5x170 829/31219 | 1 | $186.36 | ||||
| SHIM 2mm 823/10536 | 1 | $9.12 | ||||
| WASHER 1/2 SPRING 1416/0008Z | 1 | $0.71 | ||||
| 1 | CARRIER 14' JAW HE 125/76400 | 1 | $7,536.73 | |||
| 1 | M/Cd CARRIER 14ft hvylift 331/19806 333/P7730 | 1 | $7,646.19 | |||
| 1 | M/Cd CARRIER 14ft stdlift 331/19807 333/P7728 | 1 | $4,835.80 | |||
| 1 | WA CARRIER 14' stdlift 335/07836 | 1 | $2,289.16 | |||
| 1A | THREADED BOSS M20 826/10345 | 1 | $99.94 | |||
| 2 | P/PIN 44.92/44.82 * 320 348/00046 811/90583 | 1 | $198.94 | |||
| 3 | BOLT M8x75 1315/3317Z | 1 | $3.61 | |||
| 4 | NUT M12 STD SELF LOCK 1370/0403Z | 1 | $2.11 | |||
| 4 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 5 | P/PIN 49.95/49.85 * 275 332/C9680 811/90183 | 1 | $145.65 | |||
| 5 | Pin pivot 811/90183A | 1 | $364.67 | |||
| 5 | Pin pivot 811/90183B | 1 | $705.91 | |||
| 6 | BOLT M10x80(KANBAN) 1315/3418Z | 1 | $1.63 | |||
| 6 | BOLT M12x100 1315/3520Z | 1 | $10.52 | |||
| 7 | P/PIN 59.95/59.87 * 350 332/C8620 811/50372 | 1 | $389.30 | |||
| 7 | PIVOT PIN 60x350 811/50372A | 1 | $205.94 | |||
| 7 | PIVOT PIN 60x350 811/50372B | 1 | $266.81 | |||
| 8 | CAP SCREW M12 120mm LONG 826/01642 | 1 | $20.97 | |||
| 11 | BUSH 809/00125 809/00125A | 1 | $56.41 | |||
| 11A | LINER BEARING 54.85*47 809/00176 | 1 | $45.81 | |||
| 12 | P/PIN 44.92/44.82 * 216 332/E5130 811/50367 | 1 | $308.48 | |||
| 13 | WA LOCKING PIN 911/40092 333/G6734 | 1 | $43.60 | |||
| 14 | HAIRPIN SPRING 122/34401 | 1 | $28.77 | |||
| 16 | GREASE NIPPLE STRAIGHT 1450/0002 | 1 | $5.55 | |||
| 17 | P/PIN 44.99/44.87 * 199 348/00020 811/90585 | 1 | $122.22 | |||
| 18 | WA BUCKET LEVER spd/pwr 335/05601 335/05602 | 1 | $1,767.96 | |||
| 18 | WA BUCKET LEVER spd/pwr 335/05603 | 1 | $2,012.22 | |||
| 19 | P/PIN 44.95/44.85 * 300 332/E3412 811/20061 | 1 | $164.70 | |||
| 20 | BOLT 1/2 X 2-1/2 UNF 1305/3418Z | 1 | $9.37 | |||
| 20 | BOLT M10x90 1315/3419Z | 1 | $8.20 | |||
| 21 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 22 | P/PIN 44.95/44.85 * 206 125/79800 811/90409 | 1 | $132.94 | |||
| 24 | P/PIN 44.92/44.82 * 290 332/E3435 811/50369 | 1 | $96.35 | |||
| 26 | PIVOT PIN SEAL 45-55-5 813/00425 | 1 | $13.48 | |||
| 28 | P/PIN 44.45/44.35 * 354 811/50051 911/12400 | 1 | $185.93 | |||
| 29 | LOCKING STRUT 106/50001 | 1 | $150.84 | |||
| 30 | WASHER 823/00470 | 1 | $4.32 | |||
| 31 | LYNCH PIN 826/00512 | 1 | $3.76 | |||
| 32 | SHIM 819/00100 | 1 | $7.27 | |||
| 33 | DECAL EXT. DIPPER 817/00502 | 1 | $30.35 | |||
| 34 | SHOULDER RING 1 3/4 823/00334 | 1 | $2.94 | |||
| 35 | WEAR STRIP TOP 123/06189 333/Y8357 | 1 | $48.79 | |||
| 36 | BOLT M10X40 TUF-LOK 1318/3410Z | 1 | $4.23 | |||
| 37 | WEAR STRIP BOTTOM 331/27389 333/Y8358 | 1 | $63.58 | |||
| 38 | SET SCREW M20x45 1315/0811Z | 1 | $8.72 | |||
| 39 | NUT M20 THIN PLAIN 1370/0702Z | 1 | $2.57 | |||
| 42 | SPACER 123/06256 | 1 | $4.23 | |||
| 42 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 43 | WA BUCKET PIN 270mm 911/16600 | 1 | $184.79 | |||
| 44 | WA STOP extdip 335/08895 | 1 | $778.95 | |||
| 45 | Bolt 1316/3507Z | 1 | $2.35 | |||
| 46 | WASHER M12 PLAIN(KANBAN) 1420/0009Z | 1 | $0.65 | |||
Showing 1 to 58 of 58 parts
