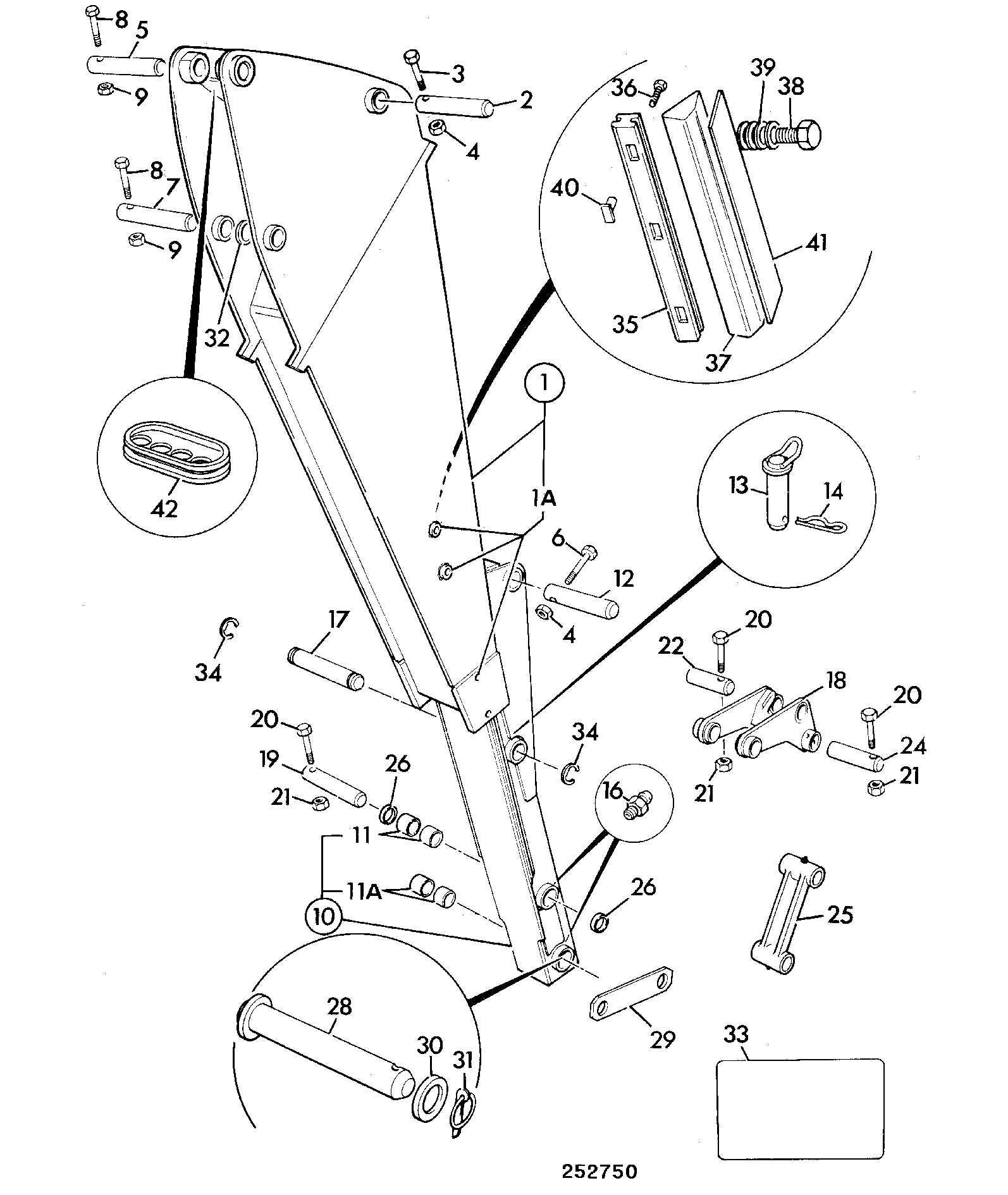

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | BUSH 809/00125 809/00125A | 1 | $56.41 | |||
| 2A | LINER BEARING 54.85*47 809/00176 | 1 | $45.81 | |||
| 3 | PIVOT PIN SEAL 45-55-5 813/00425 | 1 | $13.48 | |||
| 4 | CAP NIPPLE 835/00017 835/00017A | 1 | $4.12 | |||
| 5 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | |||
| 6 | PIVOT PIN 65X370MM 811/50378 | 1 | $430.13 | |||
| 7 | P/PIN 59.95/49.85 * 255 Oiled 811/50384 | 1 | $268.70 | |||
| 8 | P/PIN 44.92/44.82 * 260 332/D0739 811/50375 | 1 | $75.90 | |||
| 9 | CAP SCREW M12 x 150 G12.9 1391/3525D | 1 | $24.43 | |||
| 10 | NUT M12 STD SELF LOCK 1370/0403Z | 1 | $2.11 | |||
| 11 | BOLT M12x110 1315/3521Z | 1 | $7.62 | |||
| 12 | BOLT M10x80(KANBAN) 1315/3418Z | 1 | $1.63 | |||
| 13 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 14 | WA BUCKET LEVER 15/17' 335/05604 | 1 | $636.44 | |||
| 15 | P/PIN 44.95/44.85 * 300 332/E3412 811/20061 | 1 | $164.70 | |||
| 18 | P/PIN 44.95/44.85 * 206 125/79800 811/90409 | 1 | $132.94 | |||
| 19 | P/PIN 44.92/44.82 * 290 332/E3435 811/50369 | 1 | $96.35 | |||
| 20 | BOLT M10x90 1315/3419 | 1 | $2.38 | |||
| 25 | LOCKING STRUT 106/50001 | 1 | $150.84 | |||
| 26 | P/PIN 44.45/44.35 * 354 811/50051 911/12400 | 1 | $185.93 | |||
| 27 | WASHER 823/00470 | 1 | $4.32 | |||
| 28 | LYNCH PIN 826/00512 | 1 | $3.76 | |||
| 29 | SHIM 819/00101 | 1 | $27.81 | |||
Showing 1 to 23 of 23 parts
