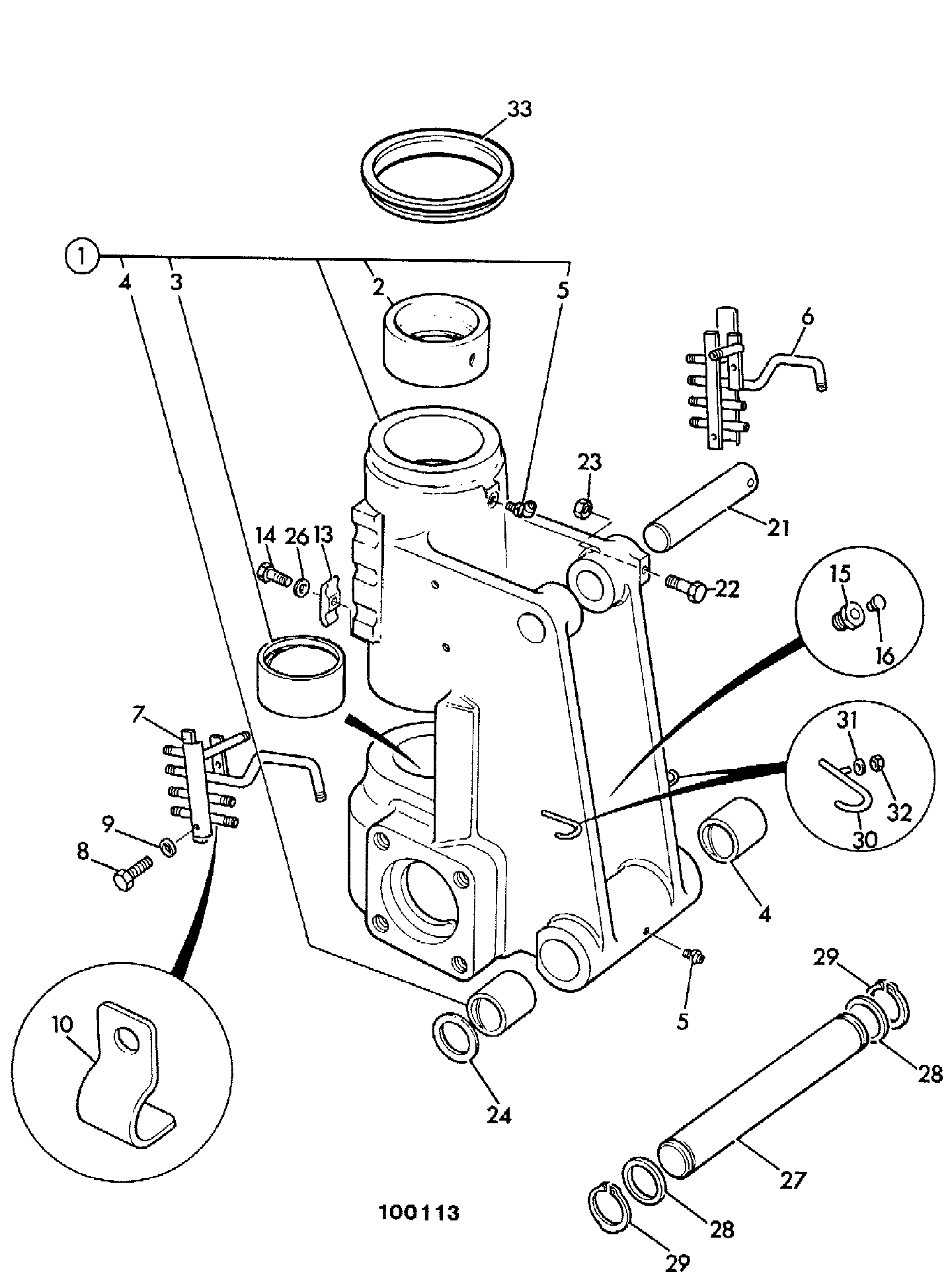

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| PIPE 980/78300 | 1 | $661.94 | ||||
| 2A | BUSHING, NICKEL - PLAIN 808/00261 | 1 | $444.35 | |||
| 3 | MIDDLE BUSH 808/00201 | 1 | $123.61 | |||
| 3A | BUSH 808/00241 | 1 | $190.67 | |||
| 5 | LOCTITE 638 - 50ml 4101/0600 4101/0602 | 1 | $293.84 | |||
| 7 | NIPPLE GREASE 816/60056 816/60056A | 1 | $0.23 | |||
| 8 | PIPE 124/72400 | 1 | $809.20 | |||
| 8 | PIPE 124/72500 | 1 | $1,768.70 | |||
| 9 | PIPE 124/72600 | 1 | $867.38 | |||
| 9 | WASHER 3/8 SMALL PLAIN(KANBAN) 1410/0003Z | 1 | $0.00 | |||
| 10 | (P) SET 3/8UNFx1 HT 1305/0206Z | 1 | $2.49 | |||
| 11 | WASHER 3/8" SPRING 1416/0006Z | 1 | $0.45 | |||
| 15 | P/PIN 49.95/49.85 * 240 Oiled 811/50400 | 1 | $174.46 | |||
| 16 | BOLT M12x100 1315/3520Z | 1 | $10.52 | |||
| 17 | NUT M12 STD SELF LOCK 1370/0403Z | 1 | $6.91 | |||
| 23 | PIN PIVOT 811/50167 | 1 | $426.19 | |||
| 24 | BOLT 1/2UNFx4.1/2 HT 1305/3432Z | 1 | $17.12 | |||
| 25 | NUT 1/2UNF STD SELF LOCK 1340/0403Z | 1 | $3.41 | |||
| 26 | SHIM 819/00100 | 1 | $7.27 | |||
| 27 | SEAL 206/20705 | 1 | $8.55 | |||
| 28 | PIN PIVOT 811/70078 | 1 | $182.34 | |||
| 29 | SPACER 60/8x5mm 819/00099 | 1 | $29.72 | |||
| 30 | CIRCLIP-60mm H/DUTY 821/00297 | 1 | $23.80 | |||
| 31 | GUARD 123/01130 | 1 | $85.43 | |||
| 32 | WASHER 3/8in MEDIUM 1411/0003D | 1 | $3.83 | |||
| 33 | NUT 3/8UNF THIN SELF LOCK 1340/0204Z | 1 | $2.94 | |||
Showing 1 to 26 of 26 parts
Related Assemblies
-
DIAG-B4-3-5-395103-11187414 B4-3-5 KINGPOST SIDESHIFT
View Diagram -
DIAG-B4-3-6-395103-11187416 B4-3-6 KINGPOST CENTREMOUNT
View Diagram -
DIAG-B4-3-5-395103-11187413 B4-3-5 KINGPOST SIDESHIFT
View Diagram
