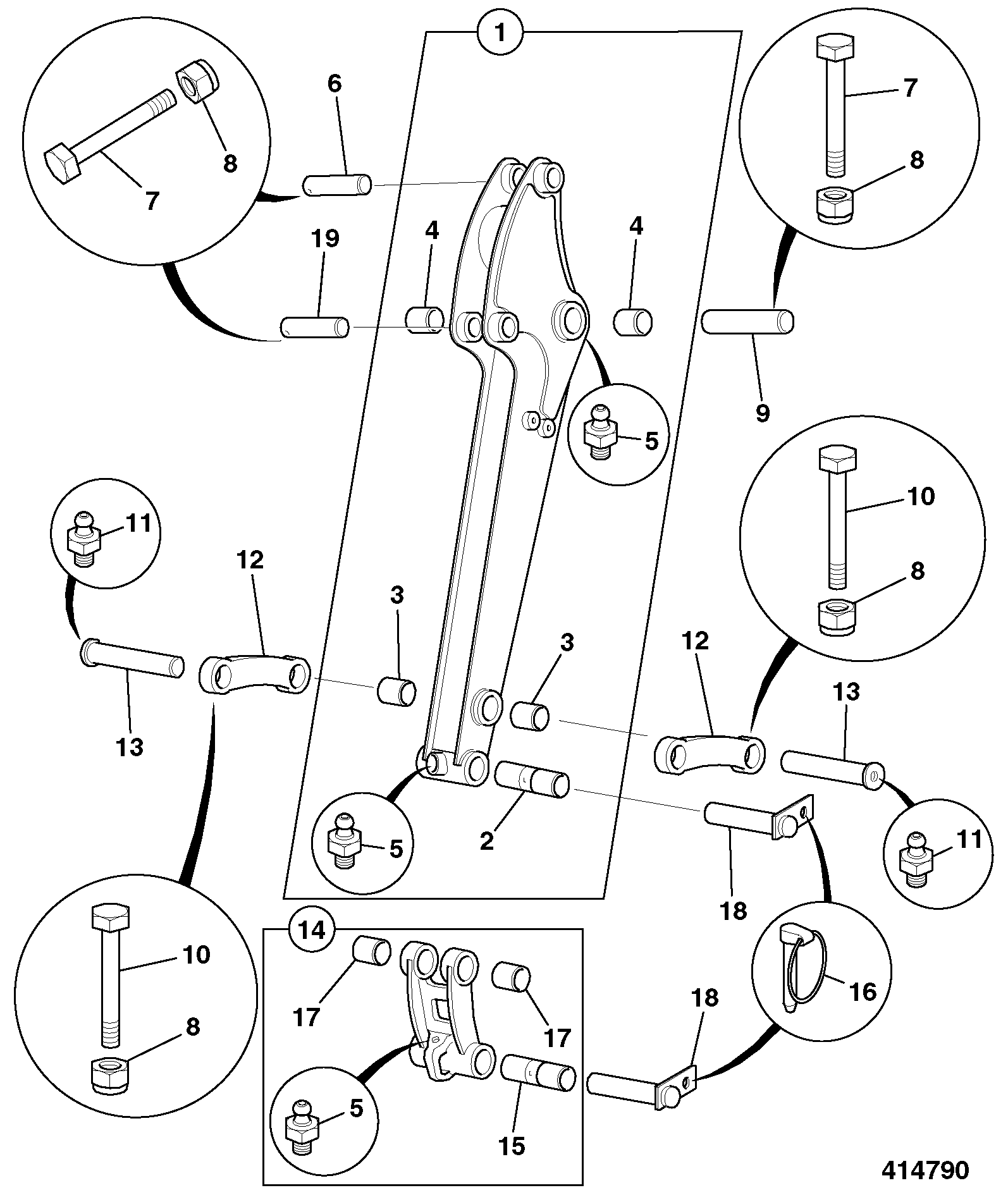

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | LONG BOOM M/C 335/90015 | 1 | $6,505.32 | |||
| 2 | P/PIN 29.98/29.97 * 200 811/90345 | 1 | $137.78 | |||
| 3 | BOLT M12x65 1315/3515Z | 1 | $8.83 | |||
| 4 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 5 | PIN 811/90344 | 1 | $80.71 | |||
| 6 | PIVOT PIN 811/50177 | 1 | $93.68 | |||
| 7 | PIVOT PIN.DIPPER 811/50178 | 1 | $114.53 | |||
Showing 1 to 7 of 7 parts
Related Assemblies
-
DIAG-B4-2-1-398241 B4-2-1 BOOM SHORT MICRO
View Diagram -
DIAG-B4-4-1-398241 B4-4-1 DIPPER SHORT & EXTRA SHORT
View Diagram -
DIAG-B4-1-1-398241 B4-1-1 KINGPOST
View Diagram
