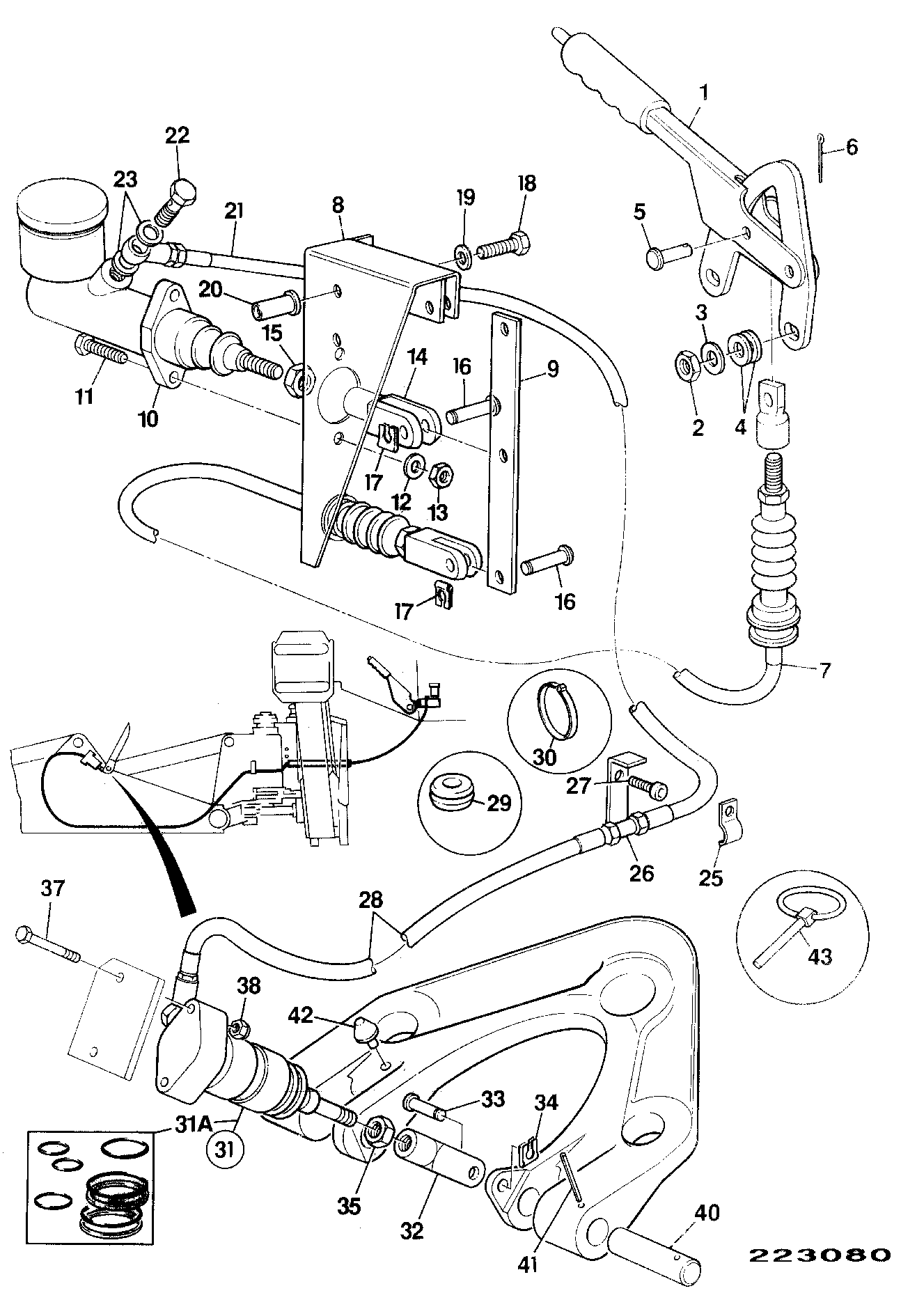

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| HOSE PVC 647/04701 | 1 | $3.97 | ||||
| LOCK-BOOM 123/03969 | 1 | $1,852.44 | ||||
| LOCK-BOOM 123/03998 | 1 | $2,069.10 | ||||
| PLUNGER 123/04894 | 1 | $76.32 | ||||
| RESERVOIR C/W CAP 15/912502 | 1 | $61.68 | ||||
| ROD 123/01378 | 1 | $212.88 | ||||
| ROD 123/01379 | 1 | $38.61 | ||||
| SCREW M8x25 BUTTON SOCKET (P564) 826/01554 | 1 | $3.46 | ||||
| 1 | LEVER BOOM LOCK HA 123/04830 | 1 | $611.80 | |||
| 3 | WASHER 3/8in MEDIUM 1411/0003D | 1 | $0.48 | |||
| 6 | SPLIT PIN 1/8X1" 2103/0709 | 1 | $1.07 | |||
| 7 | CABLE 910/46100 | 1 | $226.30 | |||
| 9 | LEVER MASTER CYL 123/04829 | 1 | $9.31 | |||
| 10 | CYLINDER-MASTER (ATB) 15/912500 | 1 | $176.86 | |||
| 11 | SET SCREW M8x30(KANBAN) 1315/0308Z | 1 | $2.17 | |||
| 12 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 13 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 14 | PIN-CLEVIS 913/04401 | 1 | $4.41 | |||
| 15 | NUT M10 THIN PLAIN 1370/0302Z | 1 | $0.62 | |||
| 16 | CLEVIS PIN 8MMX17MM 913/04402 | 1 | $9.42 | |||
| 17 | SAFETY CLIP 529/38603 | 1 | $0.62 | |||
| 18 | SET-SCREW M10 L-_30mm 1315/0408Z | 1 | $1.22 | |||
| 19 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 20 | NUT RIVET 826/01105 826/01105A | 1 | $6.66 | |||
| 21 | HOSE 85" STR/STR 629/15700 | 1 | $71.79 | |||
| 22 | Banjo Bolt 816/75016 | 1 | $24.17 | |||
| 23 | COPPER WASHER(KANBAN) (BR3) 823/00372 | 1 | $4.00 | |||
| 25 | CLIP 123/01414 | 1 | $1.64 | |||
| 26 | ADAPTOR 123/00549 | 1 | $284.58 | |||
| 28 | HOSE 629/95062 | 1 | $95.26 | |||
| 28 | HOSE 96-1/2 STR/STR 629/13000 | 1 | $57.82 | |||
| 29 | GROMMET 828/00199 | 1 | $9.75 | |||
| 30 | CABLE TIE - BLACK 200mm 826/01144 | 1 | $0.20 | |||
| 31 | CYLINDER -SLAVE 15/107600 | 1 | $142.22 | |||
| 31A | KIT REPAIR 15/107601 | 1 | $119.34 | |||
| 32 | CLEVIS, BOOM LOCK 123/04082 | 1 | $22.67 | |||
| 33 | CLEVIS PIN 529/38602 403/H9313 | 1 | $2.75 | |||
| 35 | NUT M8 THIN PLAIN 1370/0202Z | 1 | $0.71 | |||
| 37 | BOLT M8x45 1315/3311Z | 1 | $2.08 | |||
| 40 | PIN PIVOT 811/50220 | 1 | $27.30 | |||
| 41 | PIN TENSION 5/16X3/4 2102/0919 | 1 | $3.28 | |||
| 42 | RUBBER STOP 828/00150 | 1 | $12.01 | |||
| 43 | LYNCH PIN 826/00512 | 1 | $3.76 | |||
Showing 1 to 43 of 43 parts
