Kubota SVL97-2C B39800 BATTERY Parts Diagram
Exploded-view parts diagram "B39800 BATTERY" for the Kubota SVL97-2C and Kubota SVL97-2CC. 13 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | BRACKET,KIT(BATTERY) V0211-93122 | 1 | $126.36 | |||
| 010 | KIT, BRACKET (BATTERY) V0211-93120 | 1 | $133.34 | |||
| 020 | Bolt 01135-61030 01135-51030 | 1 | $2.36 | |||
| 030 | CUSHION 5H801-12120 | 1 | $8.12 | |||
| 040 | BOLT,HOOK(BATTERY) V0211-43822 | 1 | $21.24 | |||
| 050 | COVER(BATTERY) V0211-43840 | 1 | $32.37 | |||
| 060 | RETAINER(BATTERY) V0211-43832 V0651-43830 | 1 | $64.67 | |||
| 070 | BOLT(BATTERY) V0211-43850 | 1 | $27.00 | |||
| 080 | NUT,FLANGE V0621-43860 | 1 | $1.87 | |||
| 090 | Plain Washer (Flat Washer) 04015-50060 | 1 | $0.60 | |||
| 110 | LABEL(BATTERY) V1311-53230 | 1 | $3.53 | |||
| 110 | LABEL(BATTERY) V1311-53233 Discontinued | 1 | $2.10 | |||
| 110 | LABEL(BATTERY) *** V1311-53232 Discontinued | 1 | $2.02 | |||
Showing 1 to 13 of 13 parts
Related Assemblies
-

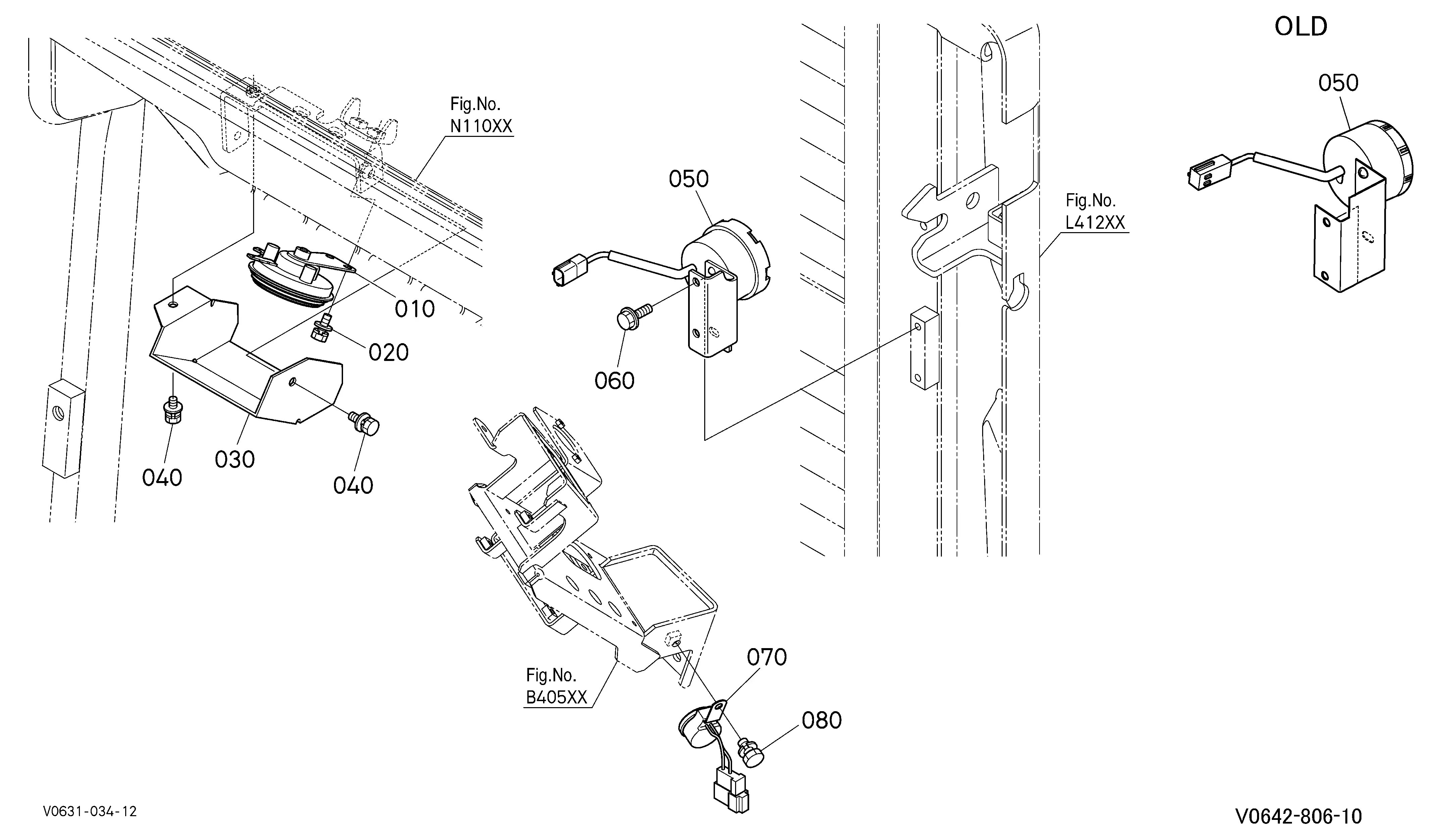

DIAG-B40100-194422 B40100 HORN/BUZZER
View Diagram -

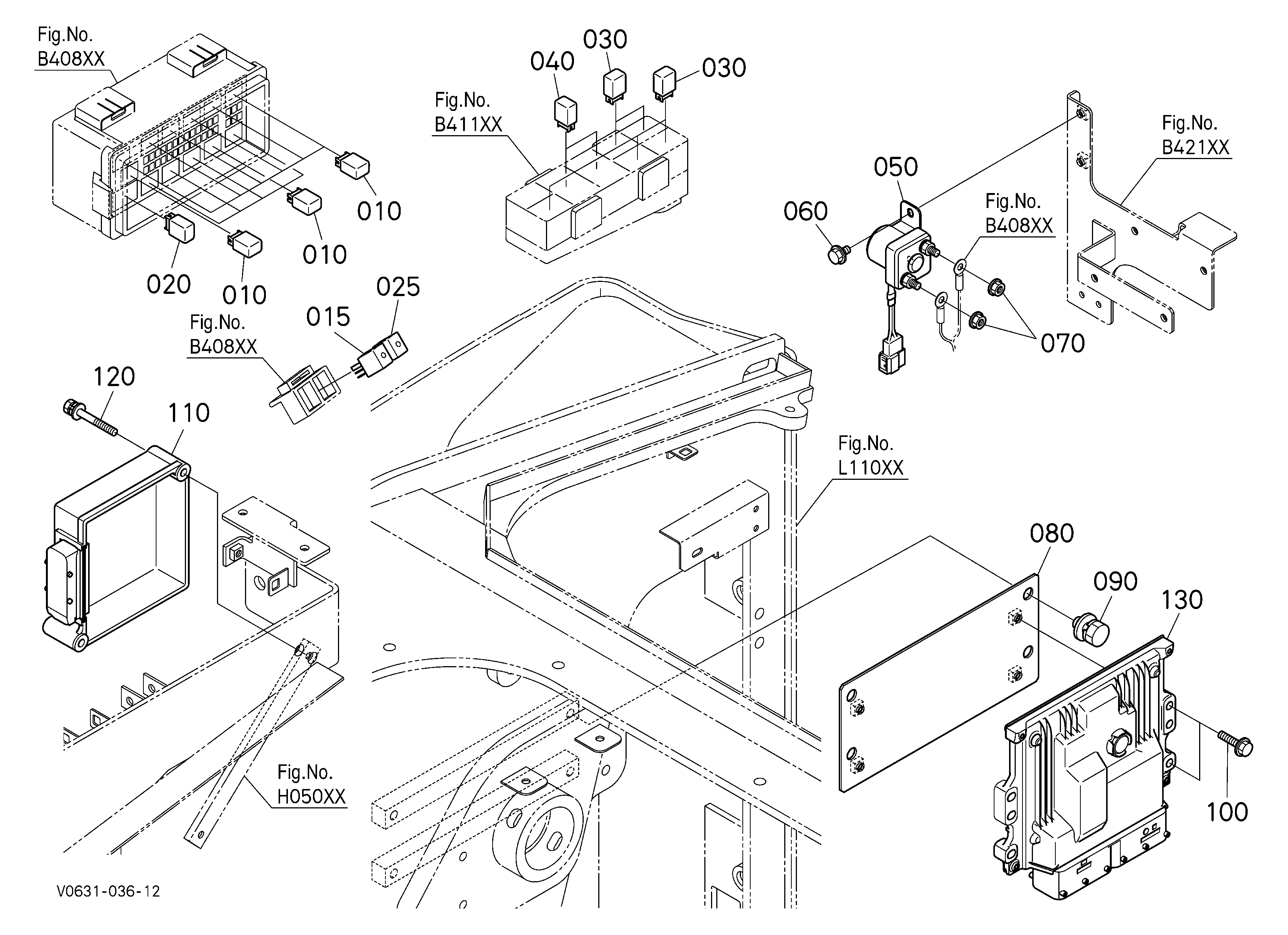

DIAG-B40202-194422 B40202 RELAY/ECU
View Diagram -

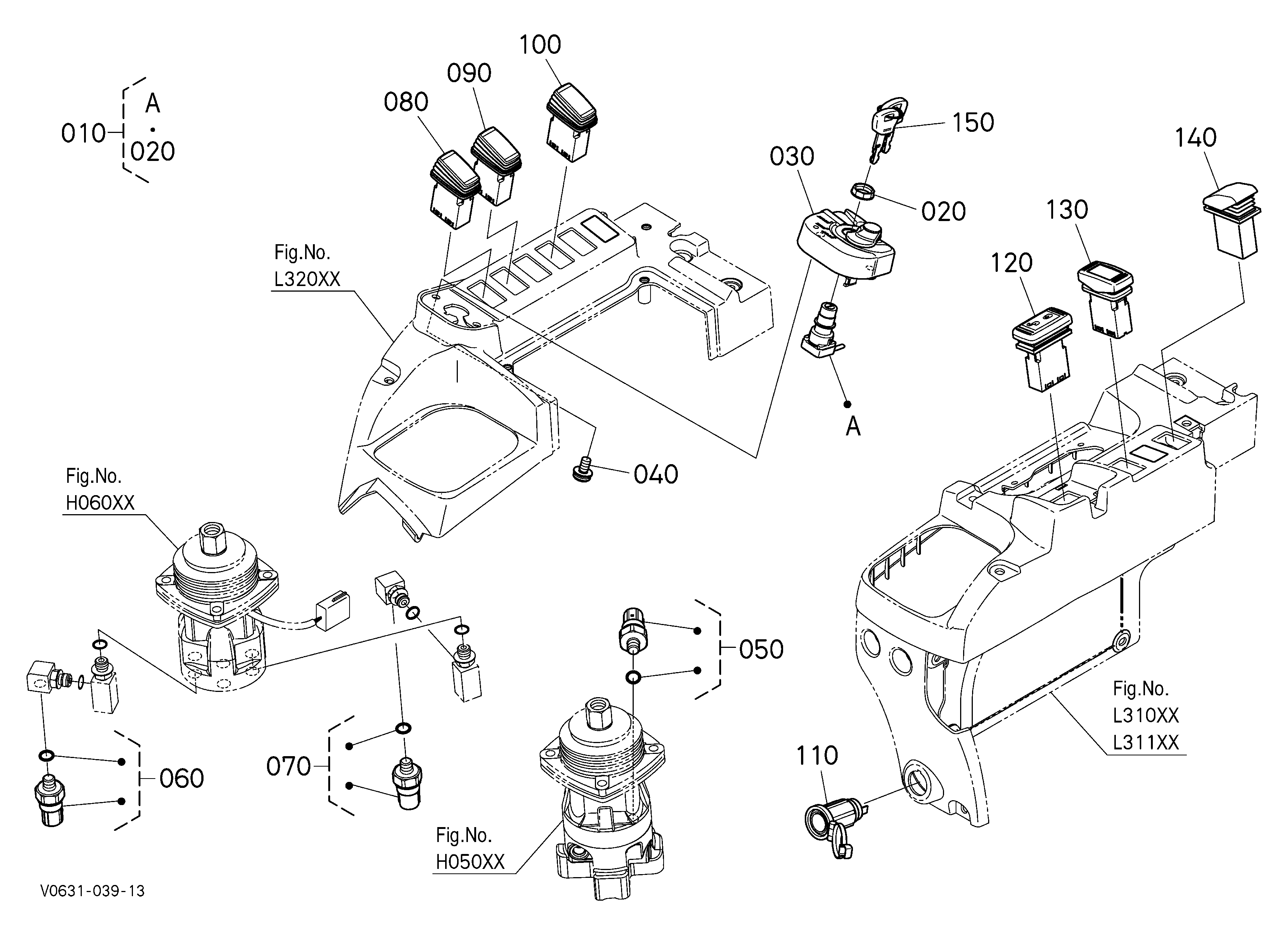

DIAG-B40402-194422 B40402 SWITCH
