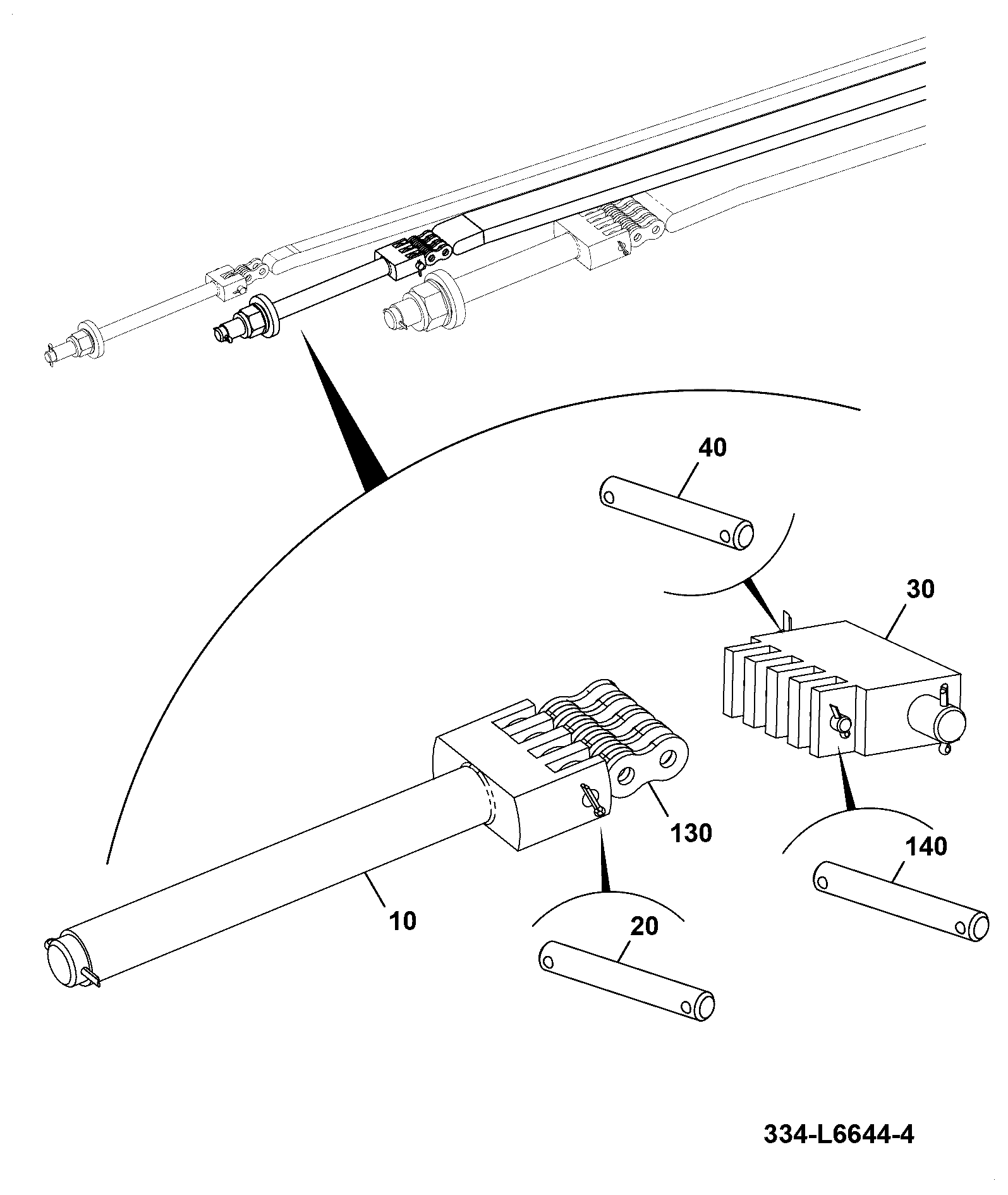

B390-60-1 OTHER LOADER PARTS RETRACTION ASSEMBLY STAGE 2 Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Part Number	Qty.	Avl.	Price (USD)	Action
ANCHOR PIN 334/L4235	1	AVAILABLE TO ORDER	$36.51	Quantity
BL666 CLEVIS PIN STAGE 2 334/L4533	1	AVAILABLE TO ORDER	$30.47	Quantity
BL666 RETRACTION ANCHOR BLK ST 2 334/L4225	1	AVAILABLE TO ORDER	$157.70	Quantity
BL666 RETRACTION BOLT STAGE 2 334/L4535	1	AVAILABLE TO ORDER	$261.49	Quantity
STAGE 2 RETRACTION ASSEMBLY 334/L6776	1	AVAILABLE TO ORDER	$2,084.86	Quantity

Showing 1 to 5 of 5 parts

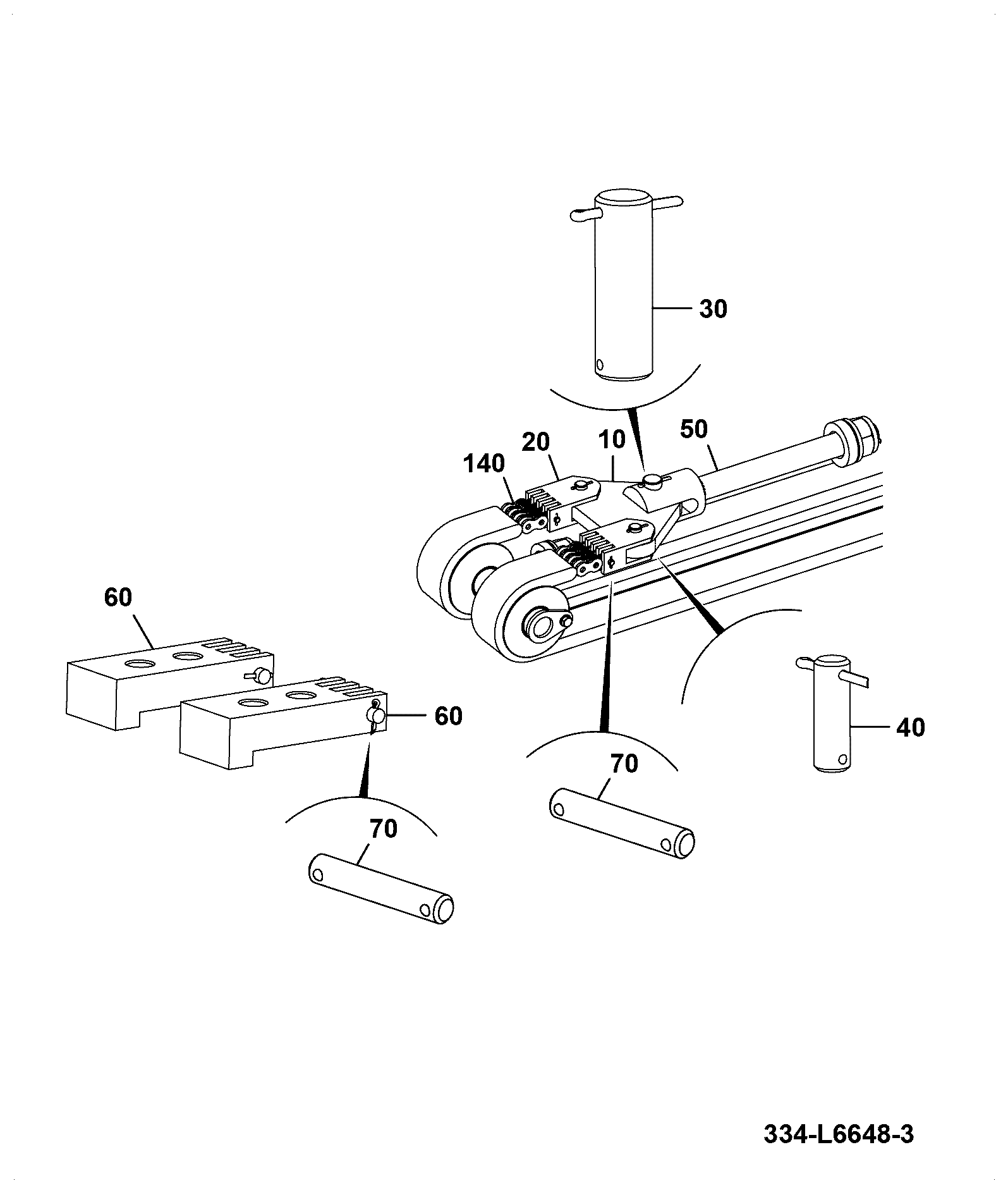

DIAG-B390-55-1-400289 B390-55-1 OTHER LOADER PARTS EXTENSION ASSEMBLY STAGE 2
