Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| Installation Kit, Loader 336/F1188 | 1 | $2,735.97 | ||||
| 3.1 | ADAPTER REDUCER 983/10951 | 1 | $42.89 | |||
| 3.2 | ADAPTOR ELBOW 983/10945 | 1 | $70.84 | |||
| 3.3 | Adapter straight 983/10955 | 1 | $36.19 | |||
| 3.4 | MALE STUD ELBOW R1/8" -DI 983/10956 335/F4358 | 1 | $37.14 | |||
| 3.5 | Cutting Ring 10 mm ST-G 400/K3307 | 1 | $1.64 | |||
| 3.6 | Nut M16 x 1.5 10 mm ST-G 400/K3314 | 1 | $1.73 | |||
| 3.7 | Clamp lined ?12mm - M5 334/C6209 | 1 | $4.11 | |||
| 3.8 | Clamp 332/F0297 | 1 | $7.18 | |||
| 3.9 | Clamp Clamp 983/10958 | 1 | $36.41 | |||
| 3.10 | Clamp Clamp 983/10954 | 1 | $48.02 | |||
| 3.11 | Plate 983/10960 | 1 | $12.71 | |||
| 3.12 | Plate 983/10959 | 1 | $22.67 | |||
| 3.13 | Self-tapping screw M5x10 334/C6207 | 1 | $0.55 | |||
| 3.14 | Allan screw M6x35 334/C6231 | 1 | $0.27 | |||
| 3.15 | Allen screw M6x40 ST-G 336/C7928 | 1 | $0.55 | |||
| 3.16 | Hexagonal Bolt M8 x 20 ST 400/K3333 | 1 | $0.68 | |||
| 3.17 | Hexagonal bolt M8x30 ST-G 336/C7926 | 1 | $0.81 | |||
| 3.18 | Hexagonal bolt M10x20 336/B5070 | 1 | $0.65 | |||
| 3.19 | Bolt 332/F0351 | 1 | $6.87 | |||
| 3.20 | Self-locking nut M8 334/C6198 | 1 | $0.30 | |||
| 3.24 | Hexagonal Threaded Bush M 400/K3365 | 1 | $11.25 | |||
| 3.25 | Bolt banjo 332/E8336 | 1 | $15.95 | |||
| 3.26 | Bush banjo 332/C5324 | 1 | $119.81 | |||
| 3.27 | Tube 983/10962 | 1 | $236.71 | |||
| 3.28 | Bracket 983/10961 | 1 | $190.36 | |||
| 3.30 | Cable tie kit small 334/C6215 | 1 | $141.79 | |||
Showing 1 to 27 of 27 parts
Related Assemblies
-

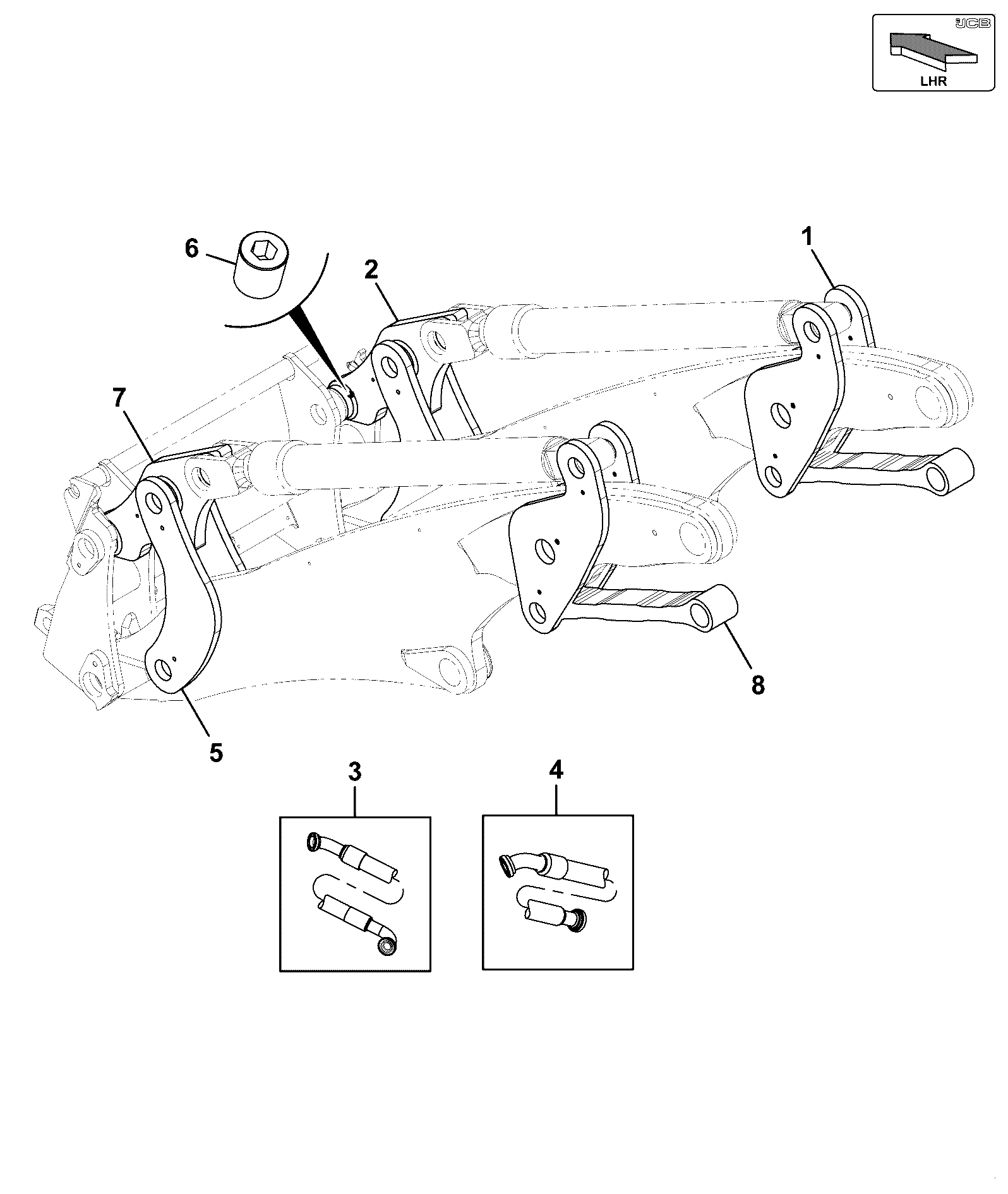

DIAG-B330-30-1-404975 B330-30-1 LOADER PIVOTS ASSEMBLY HT HL NON // LINKS
View Diagram -
DIAG-B390-5-1-404975 B390-5-1 OTHER LOADER PARTS LIFT RAM SAFETY STRUT, TOOLBOX MOUNTED ASSEMBLY
View Diagram -

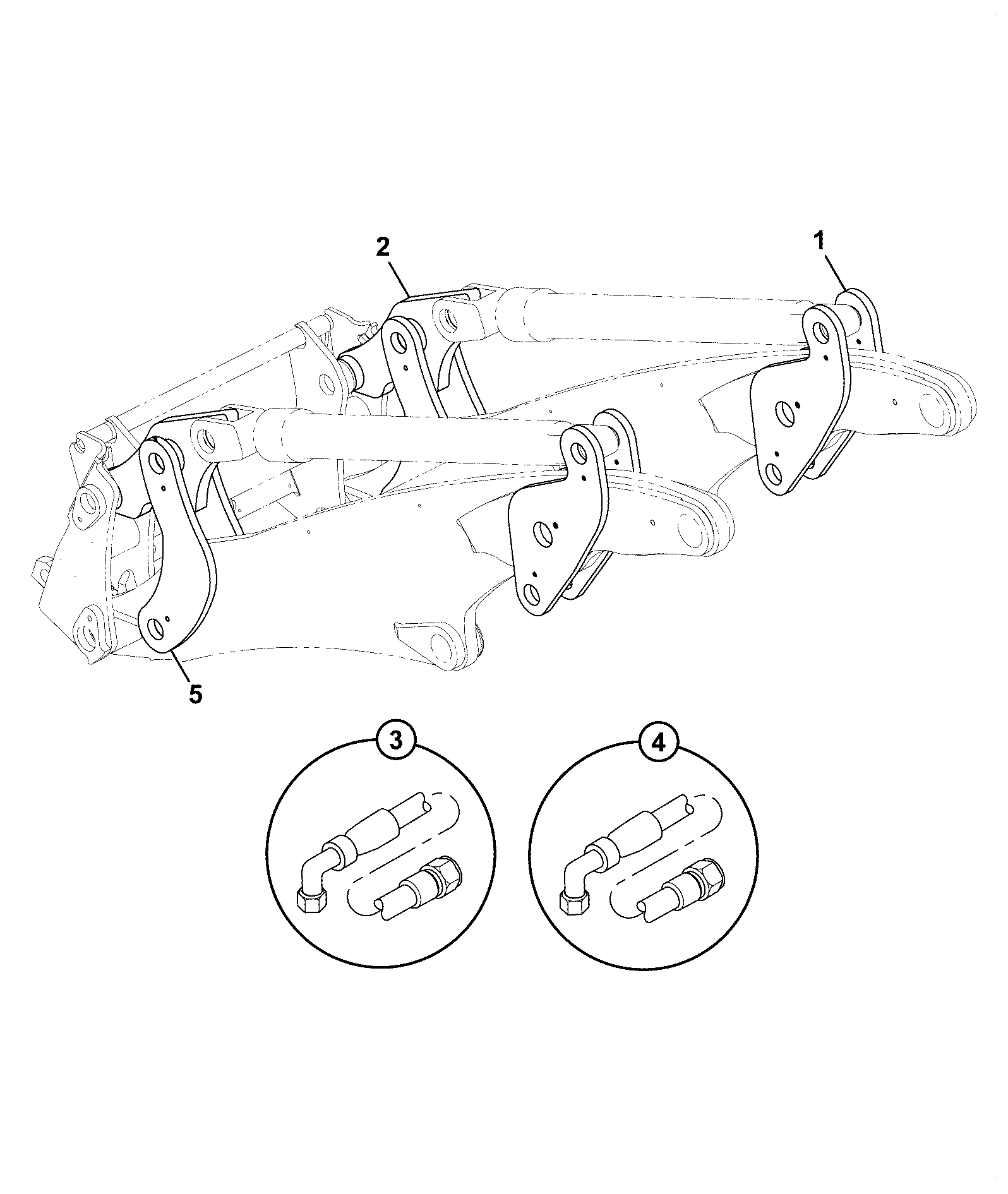

DIAG-B330-15-1-404975 B330-15-1 LOADER PIVOTS ASSEMBLY HT HL NON // LINK KIT
View Diagram
