Kubota SVL97-2 B35200 ALTERNATOR SUPPORT Parts Diagram

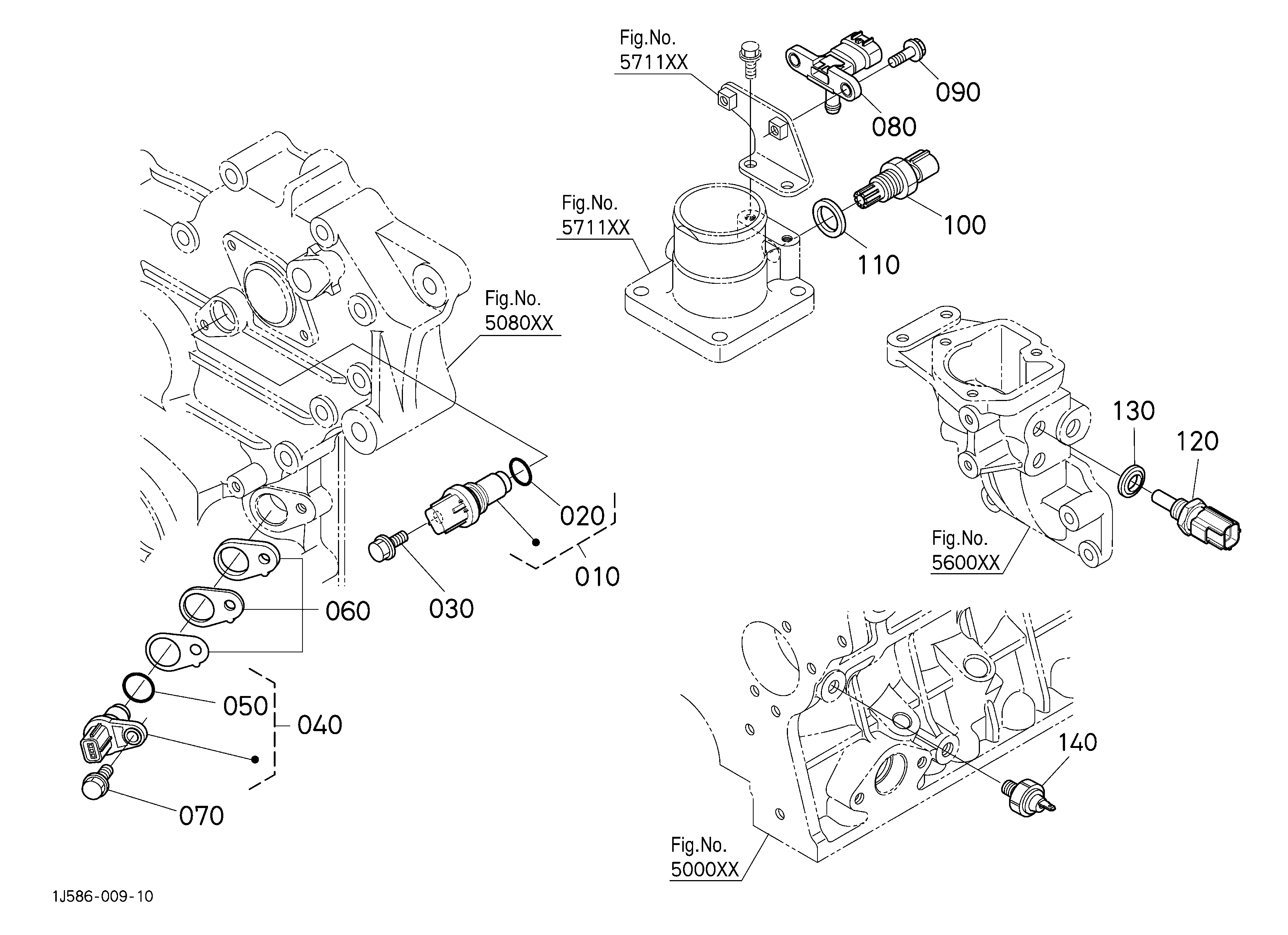

Exploded-view parts diagram "B35200 ALTERNATOR SUPPORT" for the Kubota SVL97-2, Kubota SVL97-2C and Kubota SVL97-2CC. 10 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | SUPPORT, ALTERNA 1J586-64352 | 1 | $85.54 | |||
| 020 | BOLT, FLANGE 65721-10490 01754-50850 | 1 | $6.07 | |||
| 030 | BOLT, FLANGE 01774-51255 | 1 | $9.70 | |||
| 040 | STAY DYNAMO, 2 1J586-64452 | 1 | $101.16 | |||
| 050 | STAY, ALTERNATOR 1J586-64422 | 1 | $40.97 | |||
| 060 | Flange Bolt 01174-51020 01774-51020 | 1 | $3.34 | |||
| 070 | BOLT, FLANGE 01774-51000 | 1 | $6.57 | |||
| 080 | BOLT,FLANGE 1E404-91020 | 1 | $11.74 | |||
| 090 | BRACKET WH, 2 1J586-65210 | 1 | $22.70 | |||
| 100 | Flange Nut 02771-50100 | 1 | $3.06 | |||
Showing 1 to 10 of 10 parts
