Kubota SVL95-2S B35000 ALTERNATOR Parts Diagram
Exploded-view parts diagram "B35000 ALTERNATOR" for the Kubota SVL95-2S and Kubota SVL95-2SC. 19 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY ALTERNATOR 3T401-64012 | 1 | $303.40 | |||
| 020 | BOLT,FLANGE 1J586-91020 01774-51004 | 1 | $9.06 | |||
| 030 | STAY, DYNAMO 17490-64472 | 1 | $12.97 | |||
| 040 | SUPPORT, ALTERNA 1J586-64352 | 1 | $85.54 | |||
| 050 | BOLT, FLANGE 65721-10490 01754-50850 | 1 | $6.07 | |||
| 060 | BOLT, FLANGE 01774-51255 | 1 | $9.70 | |||
| 070 | STAY DYNAMO, 2 1J586-64452 | 1 | $101.16 | |||
| 080 | STAY, ALTERNATOR 1J586-64422 | 1 | $40.97 | |||
| 090 | Flange Bolt 01174-51020 01774-51020 | 1 | $3.34 | |||
| 100 | BOLT, FLANGE 01774-51000 | 1 | $6.57 | |||
| 110 | BOLT,FLANGE 1E404-91020 | 1 | $11.74 | |||
| 120 | BRACKET WH, 2 1J586-65210 | 1 | $22.70 | |||
| 130 | Flange Nut 02771-50100 | 1 | $3.06 | |||
| 140 | SPACER, ALTERNAT 1J586-64462 | 1 | $12.69 | |||
| 150 | Flange Bolt - M8 x 1.25 x 20 mm 01754-50820 | 1 | $4.70 | |||
| 160 | SHAFT(ALTERNATOR) 1J586-64410 V0651-44280 | 1 | $46.11 | |||
| 170 | Flange Nut TA140-18310 02751-50080 | 1 | $4.62 | |||
| 180 | BOLT 1E352-74940 | 1 | $33.22 | |||
| 190 | Plain Washer (Flat Washer) 04015-50080 | 1 | $0.36 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-

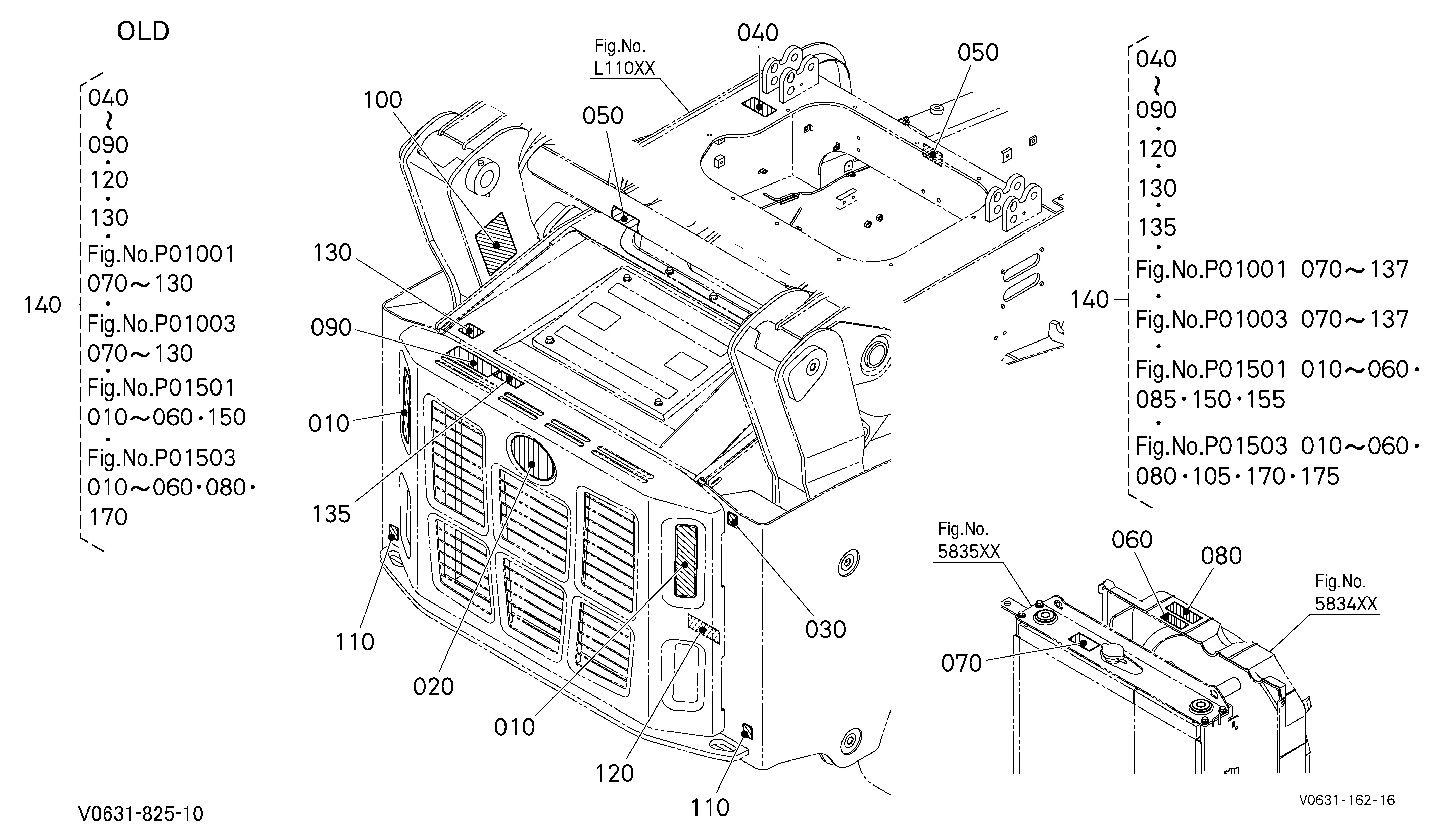

DIAG-P02002-93502 P02002 LABEL (REAR) [FRENCH]
View Diagram -
DIAG-P02001-93502 P02001 LABEL (REAR) [ENGLISH]
View Diagram -

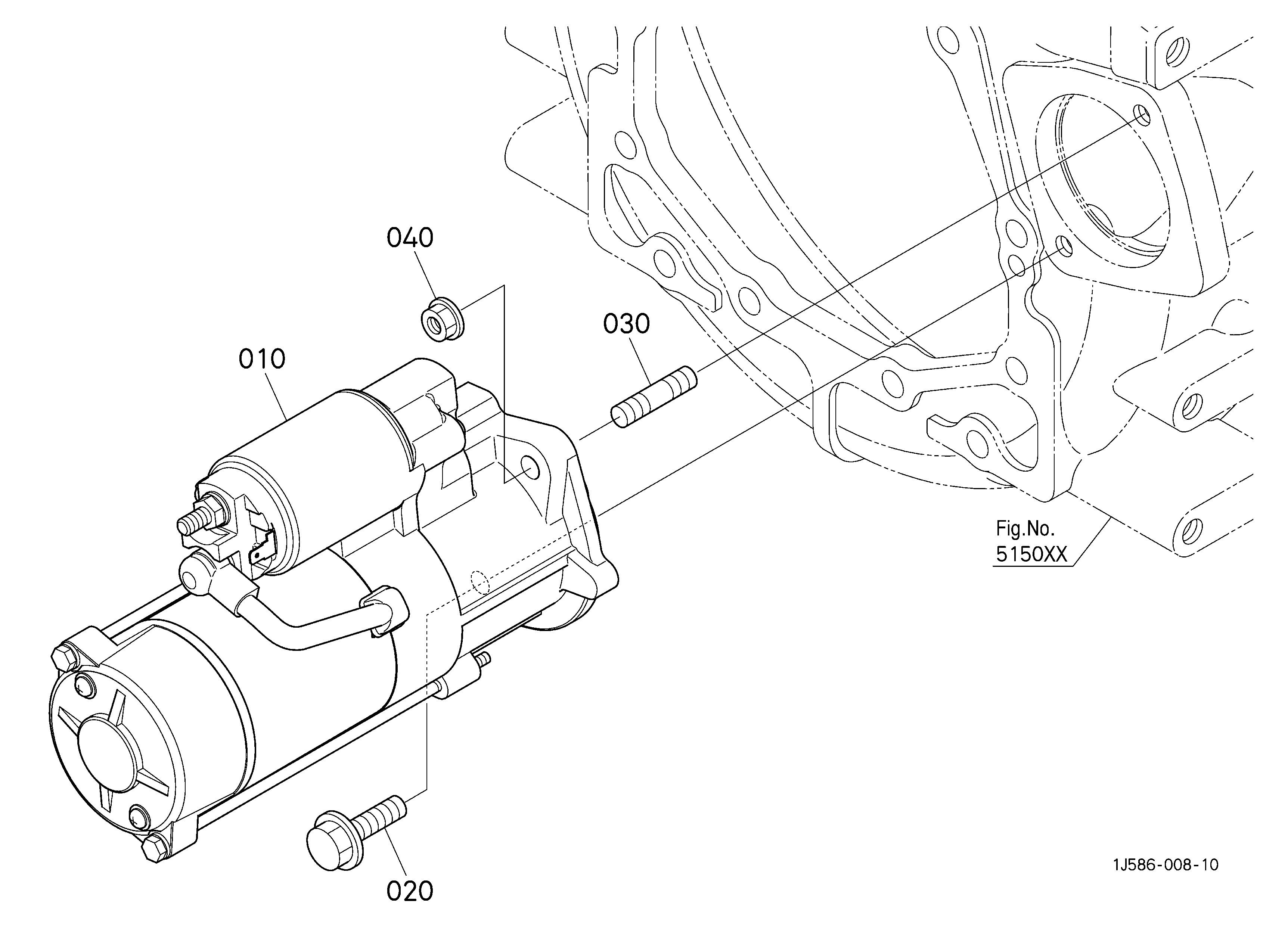

DIAG-B35400-93502 B35400 STARTER
