Kubota SVL110-3 B35000 ALTERNATOR Parts Diagram

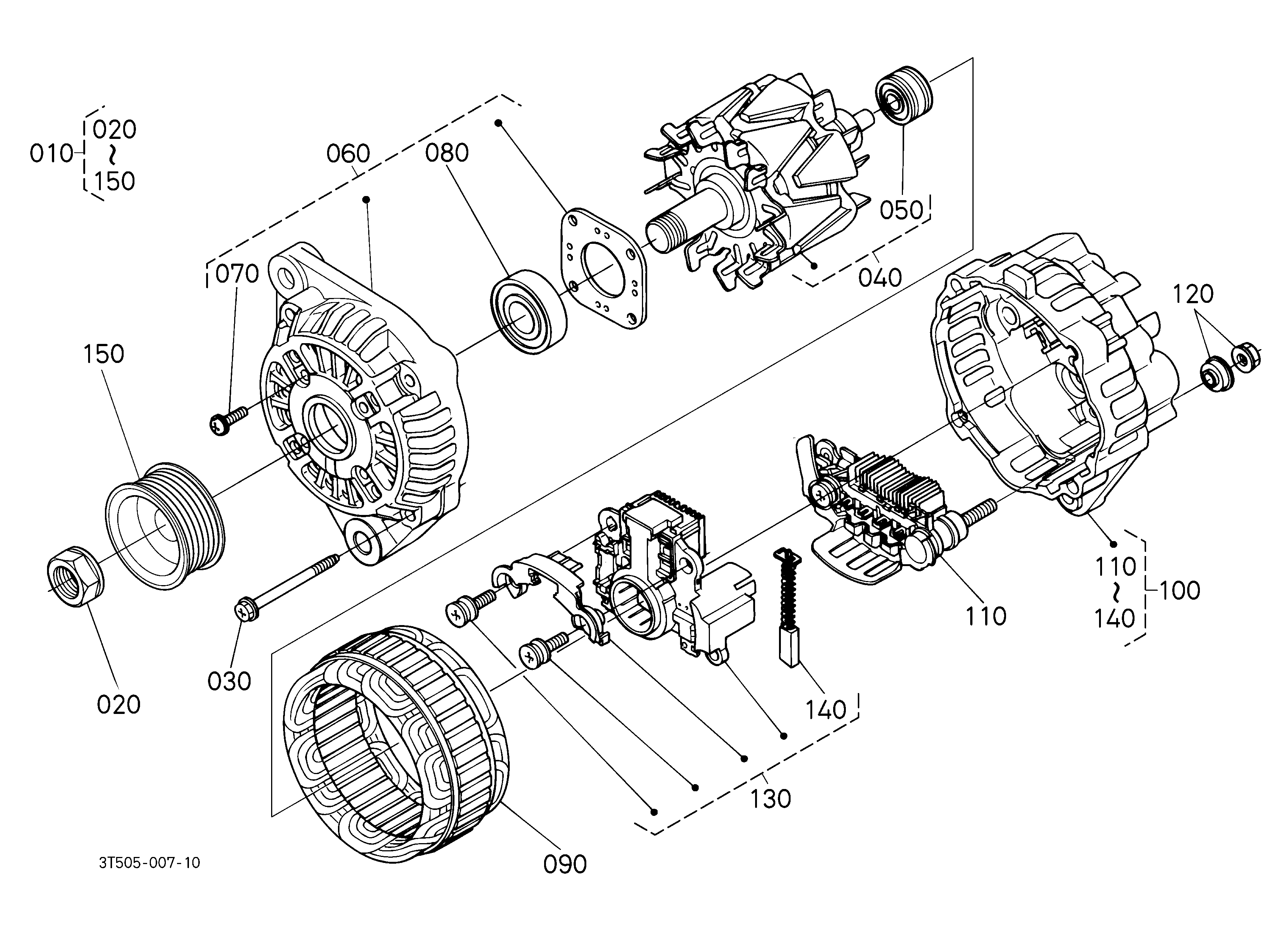

Exploded-view parts diagram "B35000 ALTERNATOR" for the Kubota SVL110-3, Kubota SVL97-3 and Kubota SVL97-3C. 13 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY ALTERNATOR 3T401-64012 | 1 | $303.40 | |||
| 020 | SPACER, ALTERNAT 1J586-64462 | 1 | $12.69 | |||
| 030 | Flange Bolt - M8 x 1.25 x 20 mm 01754-50820 | 1 | $4.70 | |||
| 036 | PLATE(ALTERNATOR) V0641-44220 | 1 | $5.43 | |||
| 037 | BOLT(SHOULDER) V0641-44230 | 1 | $2.71 | |||
| 040 | BOLT,FLANGE 1J586-91020 01774-51004 | 1 | $9.06 | |||
| 050 | STAY, DYNAMO 17490-64472 | 1 | $12.97 | |||
| 060 | Flange Bolt 01174-51020 01774-51020 | 1 | $3.34 | |||
| 070 | SHAFT(ALTERNATOR) 1J586-64410 V0651-44280 | 1 | $46.11 | |||
| 080 | Flange Nut TA140-18310 02751-50080 | 1 | $4.62 | |||
| 090 | BOLT(ALTERNATOR,ADJU V0651-44290 | 1 | $231.49 | |||
| 100 | Plain Washer (Flat Washer) 04015-50080 | 1 | $0.36 | |||
| 110 | BELT, FAN V RIBB 1J586-97010 | 1 | $40.64 | |||
Showing 1 to 13 of 13 parts
