| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | Nut 333/D2974 | 1 | $9.75 | |||
| 2 | Nut self lock 3/4 333/C0526 | 1 | $27.60 | |||
| 3 | BOLT - 3/8-16 X 1/2 333/C0524 | 1 | $5.48 | |||
| 4 | Washer Flat 333/C0523 | 1 | $8.73 | |||
| 5 | Retainer 333/C0514 | 1 | $5.24 | |||
| 6 | Guide 333/C0396 | 1 | $645.62 | |||
| 7 | Capscrew 333/C0516 | 1 | $5.24 | |||
| 8 | Chain Guard 333/C0518 | 1 | $128.81 | |||
| 9 | Circlip 1 25 snap 333/C0424 | 1 | $5.27 | |||
| 10 | Washer 333/C0415 | 1 | $14.22 | |||
| 11 | Screw socket screw 333/C0530 | 1 | $4.72 | |||
| 12 | Washer 333/C0529 | 1 | $5.27 | |||
| 13 | Shim 333/C0506 | 1 | $9.78 | |||
| 14 | Capscrew 333/C0503 | 1 | $5.31 | |||
| 15 | Shaft 333/C0504 | 1 | $476.94 | |||
| 16 | Shaft 333/C0508 | 1 | $292.66 | |||
| 17 | Plate 333/C0454 | 1 | $63.41 | |||
| 18 | Pin cotter pin 333/C0409 | 1 | $5.27 | |||
| 19 | Pin pin 333/C0408 | 1 | $52.85 | |||
| 20 | Anchor 333/C0531 | 1 | $187.80 | |||
| 21 | Anchor bolt chain 333/C0401 | 1 | $185.68 | |||
| 23 | Washer lockwasher 333/C0520 | 1 | $5.67 | |||
| 25 | Bearing roller bea 333/C0450 | 1 | $317.63 | |||
| 26 | Spacer shim 333/C0394 | 1 | $9.46 | |||
| 27 | Cap 333/C0509 | 1 | $53.71 | |||
| 28 | Guide 333/C0512 | 1 | $211.18 | |||
| 29 | Washer 333/C0510 | 1 | $5.27 | |||
| 30 | Capscrew 333/C0511 | 1 | $22.92 | |||
| 31 | Band freelift cyli 333/C0528 | 1 | $144.71 | |||
| 32 | Block 333/C0517 | 1 | $2,059.60 | |||
| 33 | Circlip snap ring 29mm shaft 333/C0513 | 1 | $9.90 | |||
Showing 1 to 31 of 31 parts
Related Assemblies
-
DIAG-B340-435-1-399487 B340-435-1 MAST MAST VIEW ASSEMBLY
View Diagram -
DIAG-B340-305-1-399487 B340-305-1 MAST ASSEMBLY 945, 4.5M FREE LIFT, 4.5T
View Diagram -

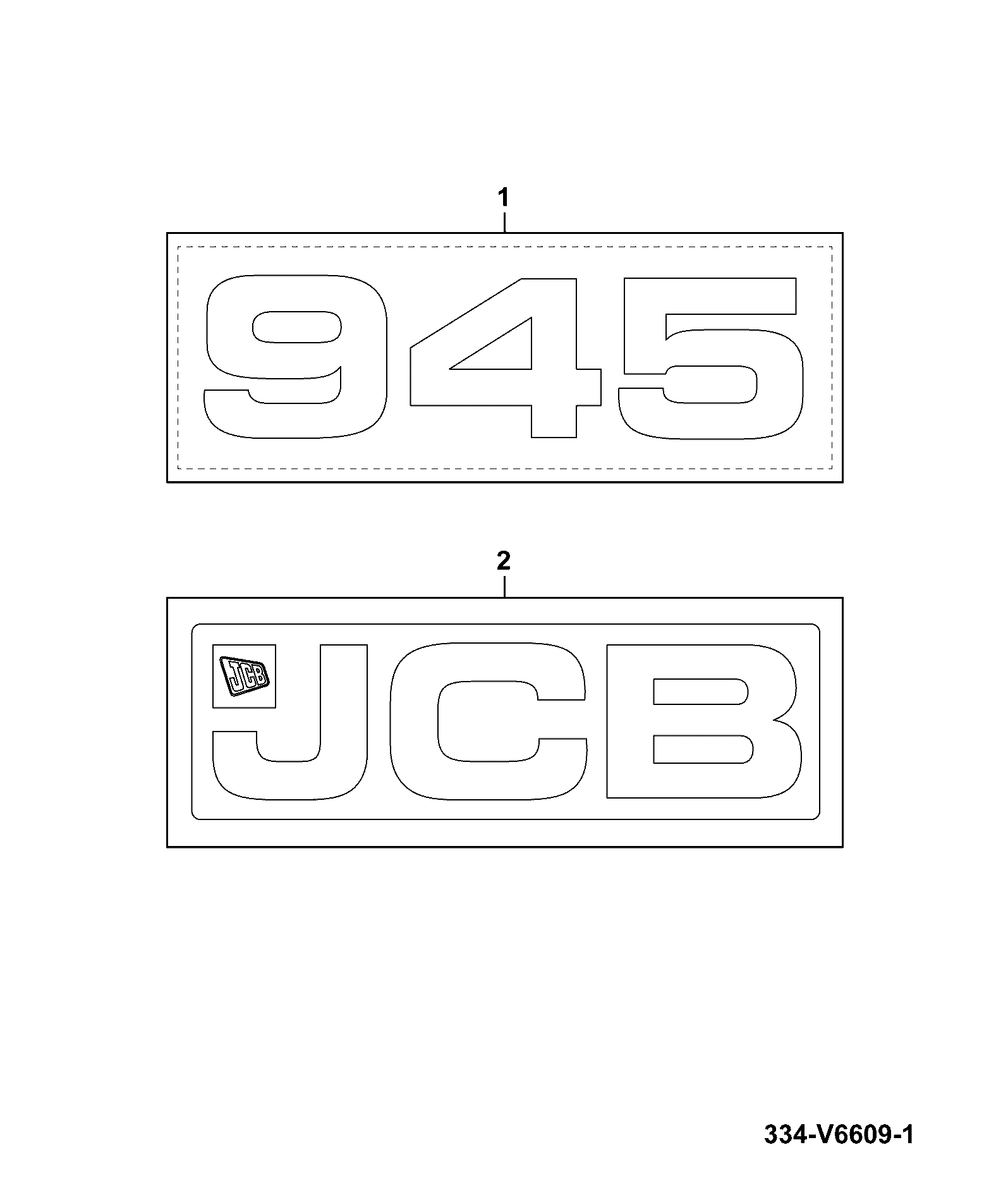

DIAG-B510-75-1-399487 B510-75-1 DECALS MACHINE IDENTIFICATION KIT DECAL ,FENDER
View Diagram
