Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | PIN PIVOT 811/90153 | 1 | $543.06 | |||
| 2 | P/PIN 49.95/49.85 * 370 403/H0065 811/90156 | 1 | $354.39 | |||
| 3 | Pin Pivot 811/90155 | 1 | $281.59 | |||
| 4 | PIN PIVOT 811/10117 | 1 | $249.20 | |||
| 5 | WA PIVOT PIN 63.45/63.37 403/F5087 | 1 | $787.70 | |||
| 6 | Pin Pivot 811/90157 | 1 | $116.38 | |||
| 7 | P/PIN 50.80/50.70 * 230 403/C7671 811/50559 | 1 | $215.29 | |||
| 8 | P/PIN 49.95/49.85 * 215 403/C8812 811/90158 | 1 | $231.70 | |||
| 9 | P/PIN 49.95/49.85 * 164 403/C8888 811/90190 | 1 | $91.03 | |||
| 10 | PIVOT PIN 811/90195 | 1 | $273.74 | |||
| 11 | PIN PIVOT 811/50585 | 1 | $293.88 | |||
| 12 | P/PIN 49.92/49.82 * 188 403/H0040 334/F3918 | 1 | $96.35 | |||
| 13 | SHIM 1.0mm 823/00237 | 1 | $0.00 | |||
| 14 | SPACER 48 LONG 333/D8673 | 1 | $24.34 | |||
| 15 | BOSS 25 OD X 17 ID 829/00570 | 1 | $56.52 | |||
| 16 | PIVOT PIN RETAINER (FINISH NONE) 162/00525 332/H6616 | 1 | $2.18 | |||
| 17 | BOLT 1315/3825D | 1 | $39.57 | |||
| 18 | NUT M20 STD SELF LOCK 1370/0703D | 1 | $4.40 | |||
| 19 | BOLT M12x100 1315/3520D | 1 | $2.94 | |||
| 21 | Bolt M12 X 90 1315/3519D | 1 | $13.57 | |||
| 22 | WASHER M12 PLAIN 1420/0009D | 1 | $0.00 | |||
| 23 | CAP SCREW M12 120mm LONG 826/01642 | 1 | $20.97 | |||
| 24 | BOLT M10x80 1315/3418D | 1 | $2.43 | |||
| 25 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.00 | |||
| 26 | BOLT M16 X 50 TUFLOK 826/01730 | 1 | $40.57 | |||
| 27 | CIRCLIP 826/01048 | 1 | $19.50 | |||
| 28 | THIN HD CAP SCREW M8x16LG 400/X4368 | 1 | $7.21 | |||
| 32 | SHIM 101 X 64 X 1.6 332/D8259 | 1 | $12.91 | |||
| 33 | Nut M12 STD SELF LOCK 1370/0403D | 1 | $2.11 | |||
| 36 | WASHER 76 X 52 X 2 332/D8665 | 1 | $14.99 | |||
| 37 | WASHER 76 X 52 X 4 332/D8666 | 1 | $10.91 | |||
| 38 | WASHER 823/00175 | 1 | $8.91 | |||
Showing 1 to 32 of 32 parts
Related Assemblies
-
DIAG-B330-5-1-401686 B330-5-1 LOADER PIVOTS PIVOT PINS & BUSHES
View Diagram -

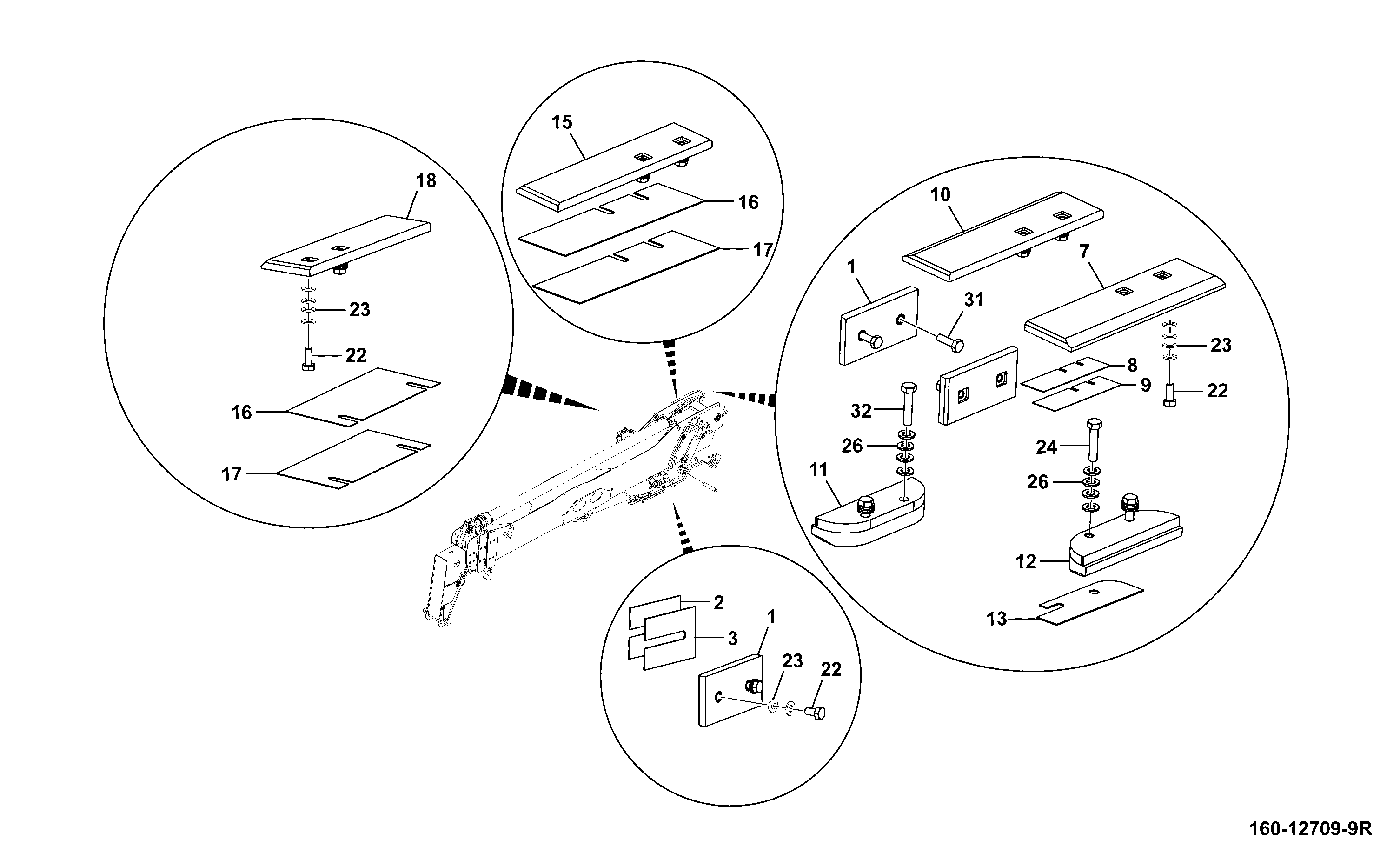

DIAG-B390-10-1-401686 B390-10-1 OTHER LOADER PARTS BOOM WEAR PADS - REAR
View Diagram -

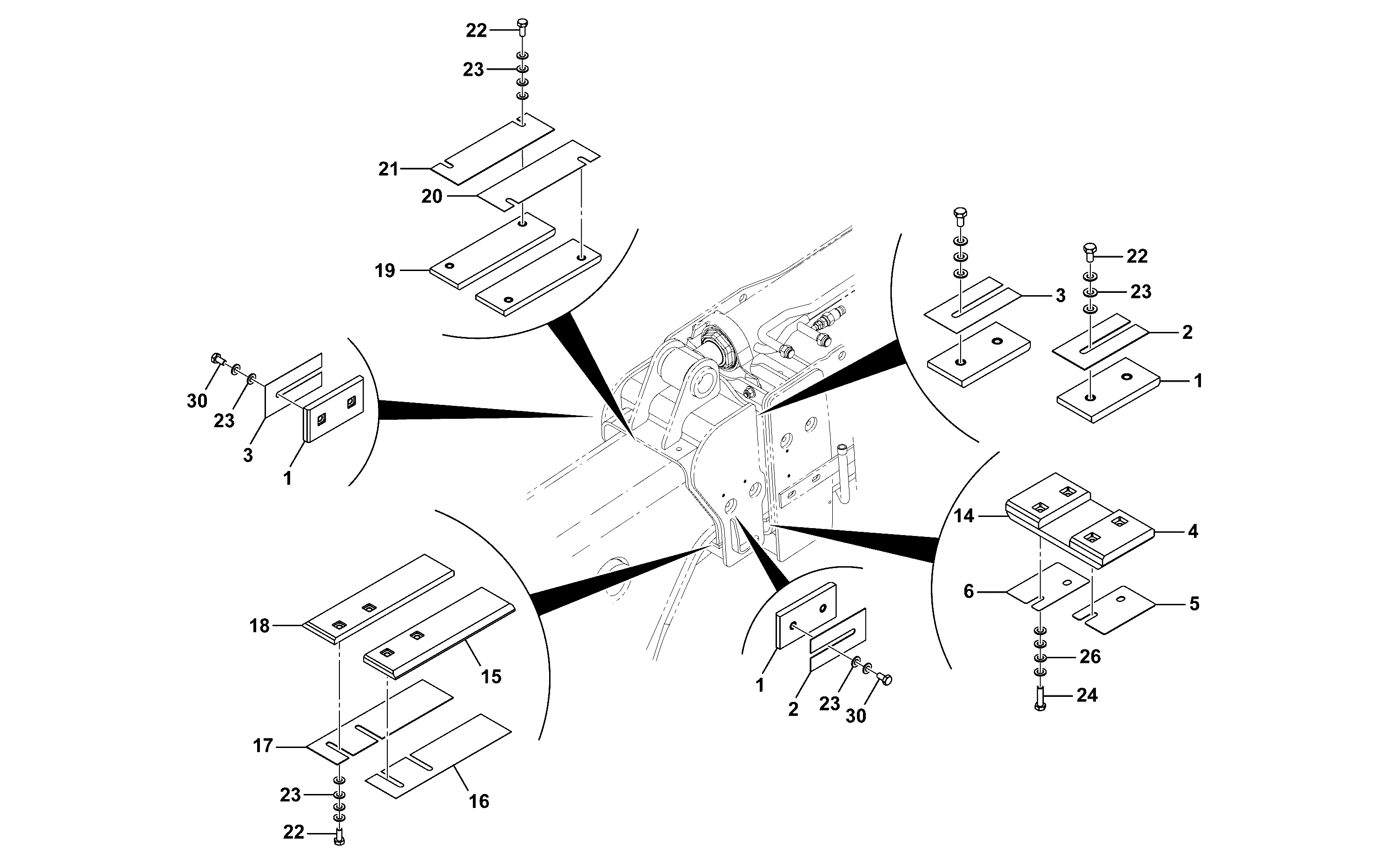

DIAG-B390-11-1-401686 B390-11-1 OTHER LOADER PARTS BOOM WEAR PADS - REAR
View Diagram
