Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | PIVOT PIN - LINK BOOM END 332/X7258 | 1 | $28.16 | |||
| 2 | PIVOT PIN - LOWER LINK 332/X7257 | 1 | $261.79 | |||
| 3 | PIVOT PIN - BOOM TAPER 332/X6160 333/X2923 | 1 | $289.99 | |||
| 4 | PIVOT PIN - 50 x 192 332/X7261 | 1 | $47.85 | |||
| 5 | PIVOT PIN SP- 40 DIAx93 332/X7255 | 1 | $41.51 | |||
| 6 | PIVOT PIN - TILT RAM 400/L9128 | 1 | $762.05 | |||
| 7 | WA - PIVOT PIN 263x40 332/X7234 | 1 | $90.82 | |||
| 8 | BUSH BI- METALLIC LOWER LINK SP 332/X7249 | 1 | $20.82 | |||
| 10 | TAPERED SPACER-BOOM PIVOT 333/X3610 | 1 | $371.82 | |||
| 11 | LINER BEARING 809/00153 | 1 | $22.34 | |||
| 12 | LOCKING COLLAR 242/00195 | 1 | $115.24 | |||
| 13 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | |||
| 14 | SHIM 1.4MM 823/00471 | 1 | $12.29 | |||
| 15 | NUT M12 STD SELF LOCK 1370/0403Z | 1 | $2.11 | |||
| 16 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 17 | BOLT M10x90 1315/3419Z | 1 | $8.20 | |||
| 18 | BOLT M12x100 1315/3520Z | 1 | $10.52 | |||
| 19 | BOLT M10x80(KANBAN) 1315/3418Z | 1 | $1.63 | |||
| 21 | BOLT M12X120 1315/3522Z | 1 | $7.65 | |||
| 24 | BOLT M20 x 120 - grade 10.9 1316/3822Z | 1 | $39.04 | |||
| 25 | CIRCLIP 60MM 821/00517 | 1 | $17.40 | |||
| 27 | WASHER-65X10X21 400/M9442 | 1 | $28.47 | |||
| 28 | SPACER.SHORT.ZINC.506B 191/00666 | 1 | $68.95 | |||
| 29 | WASHER 1/2 LARGE PLAIN 1412/0005Z | 1 | $2.73 | |||
| 30 | SET SCREW M12X20 1315/0505Z | 1 | $2.18 | |||
| 31 | BUSH BI-METALLIC 332/L3550 | 1 | $27.84 | |||
| 32 | BUSH BI-METALLIC 332/L3544 | 1 | $43.66 | |||
| 33 | 12 GAUGE SPACER 333/X1790 | 1 | $50.18 | |||
| 34 | PIN-END CAP 333/X2922 | 1 | $124.84 | |||
| 35 | FILLER SPACER 333/X3622 | 1 | $70.46 | |||
| 36 | WASHER HARDENED M2 823/00353 823/00604 | 1 | $1.78 | |||
| 37 | M20 NORD LOCK WASHER 335/F4793 | 1 | $15.93 | |||
| 38 | TAPERED SPACER-TILT CYL PIN SP 400/L9463 | 1 | $1,137.71 | |||
Showing 1 to 33 of 33 parts
Related Assemblies
-

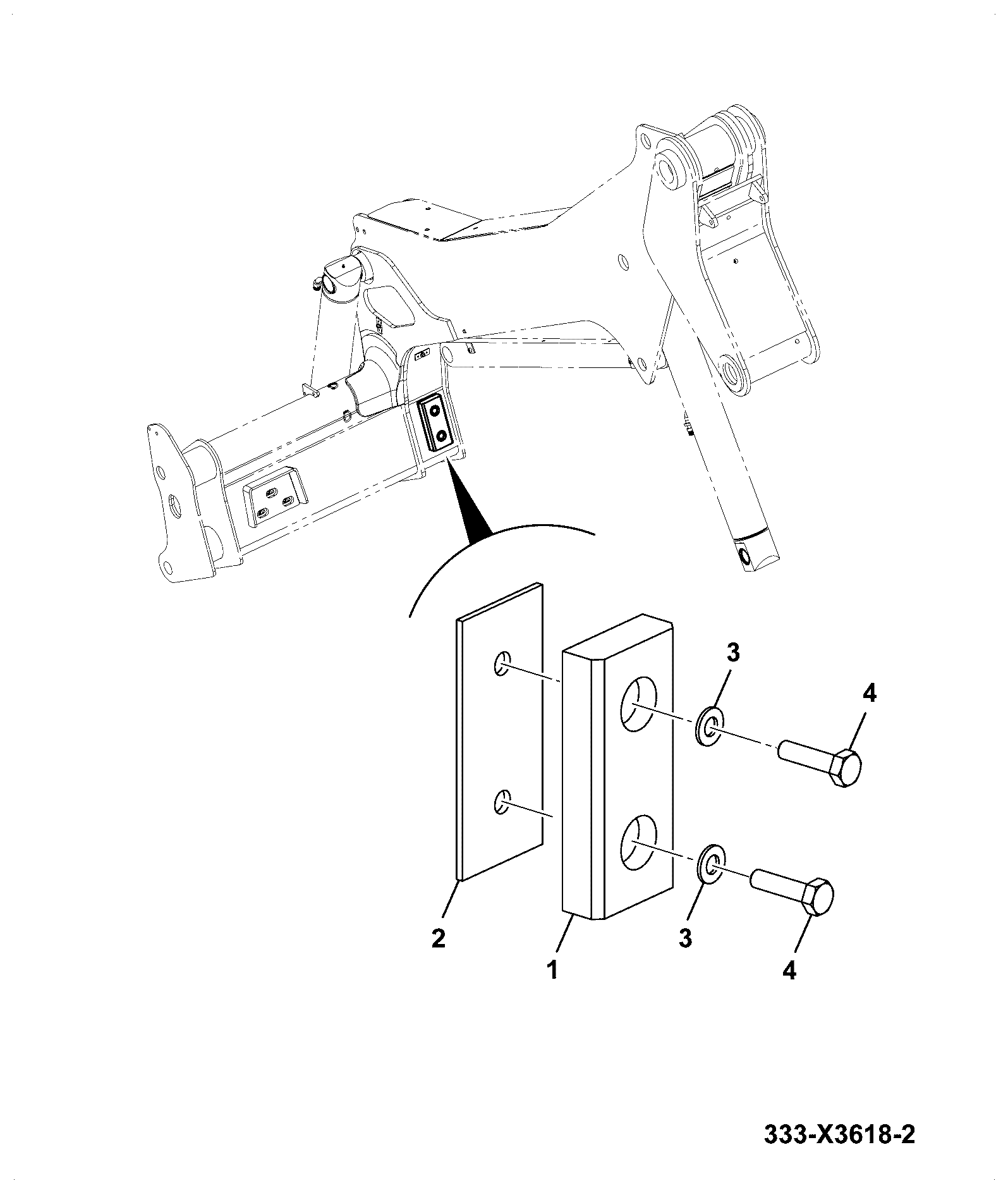

DIAG-B390-10-1-399698 B390-10-1 OTHER LOADER PARTS ASSEMBLY BOOM GUIDE, VERTICAL LIFT
View Diagram -

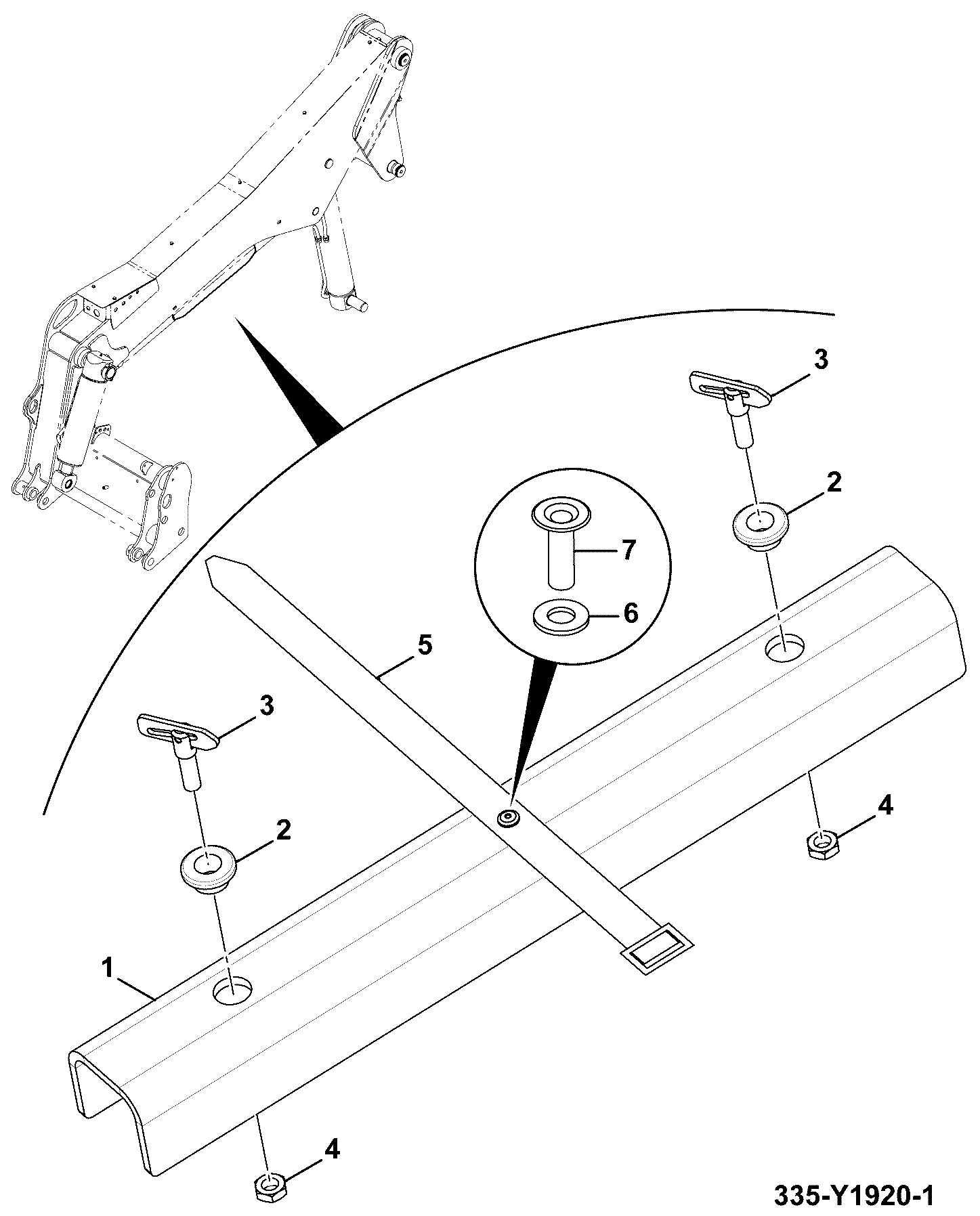

DIAG-B390-20-1-399698 B390-20-1 OTHER LOADER PARTS ASSEMBLY SAFETY STRUT. VERTICAL LIFT
