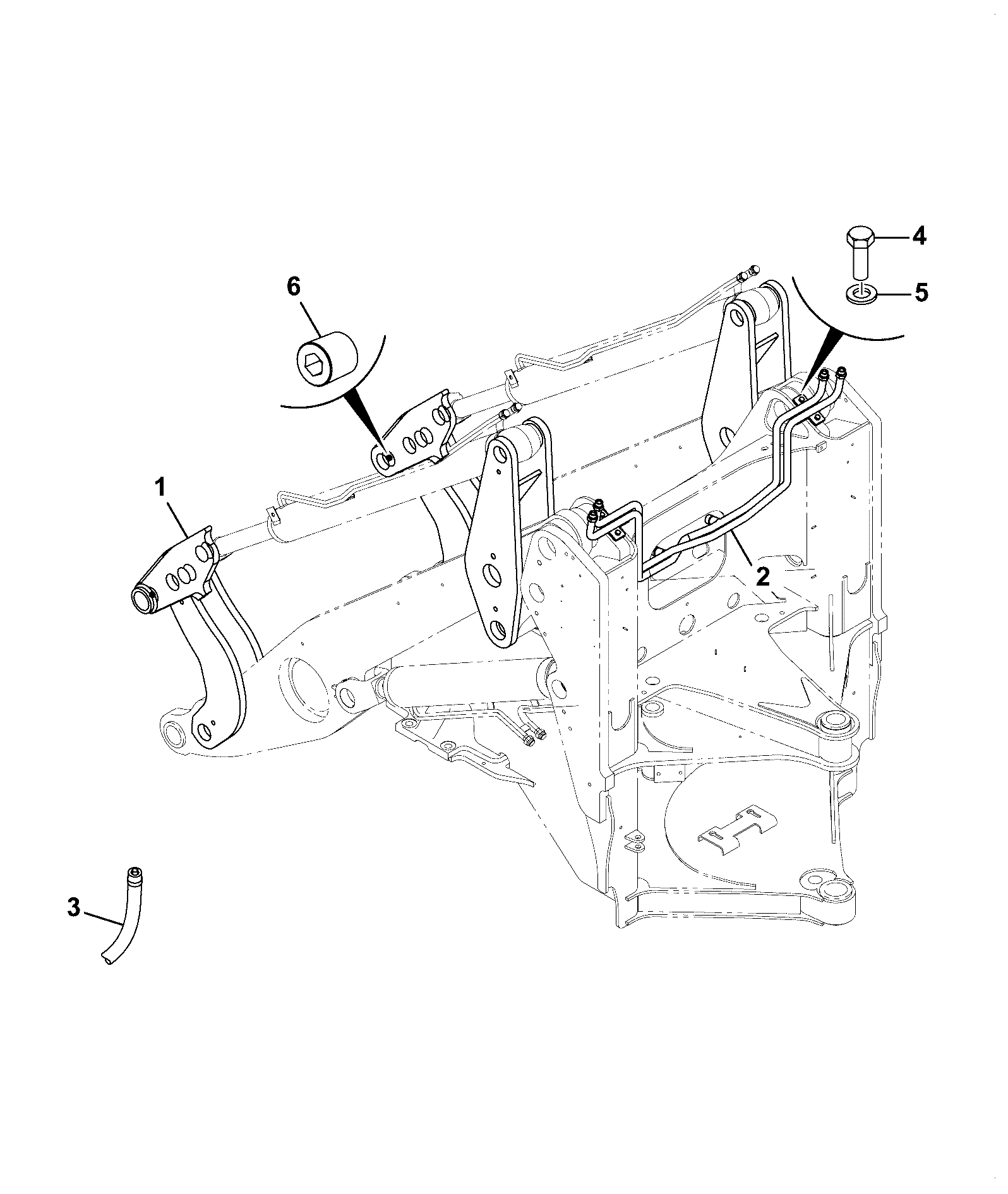

B320-75-1 LOADER LINKAGES LINKAGE ASSEMBLY – AUTOLUBE KIT Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	WA LH SHOVEL RAM LEVER 331/28355	1	AVAILABLE TO ORDER	$1,965.38	Quantity
2	WA RH SHOVEL RAM LEVER 331/28356	1	AVAILABLE TO ORDER	$1,965.38	Quantity
3	PLATE INTER SIDEPLATE 331/16536	1	AVAILABLE TO ORDER	$1,357.90	Quantity
4	M/C SHOVEL LINK //426/436HT 332/U7112	1	AVAILABLE TO ORDER	$1,608.28	Quantity

Showing 1 to 4 of 4 parts

DIAG-B320-40-1-404880 B320-40-1 LOADER LINKAGES PARALLEL LINKAGE HT SL ASSEMBLY
View Diagram

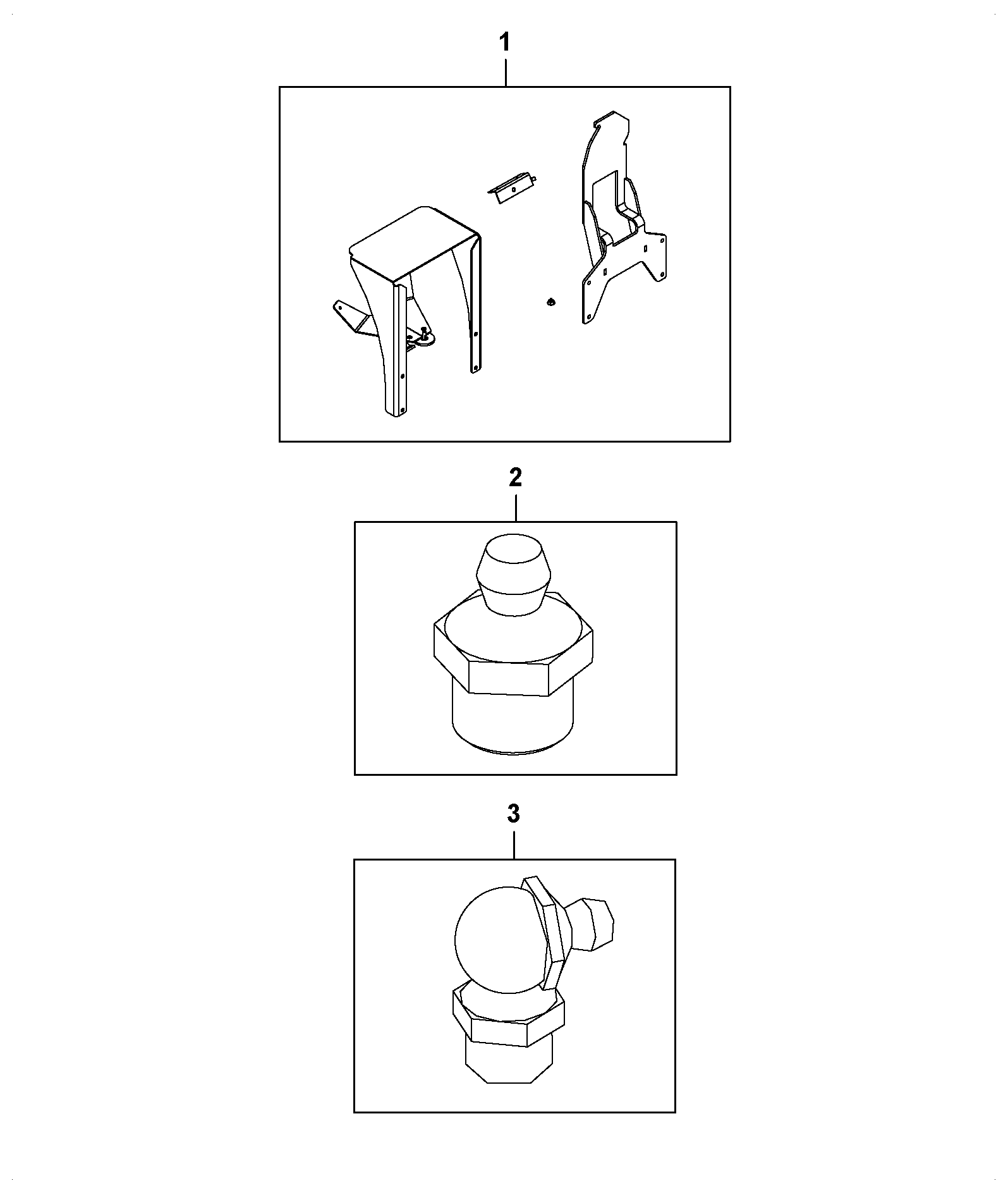

DIAG-B501-1-1-404880 B501-1-1 REFURBISHMENT SALES SPECIALS KIT AUTOLUBE
