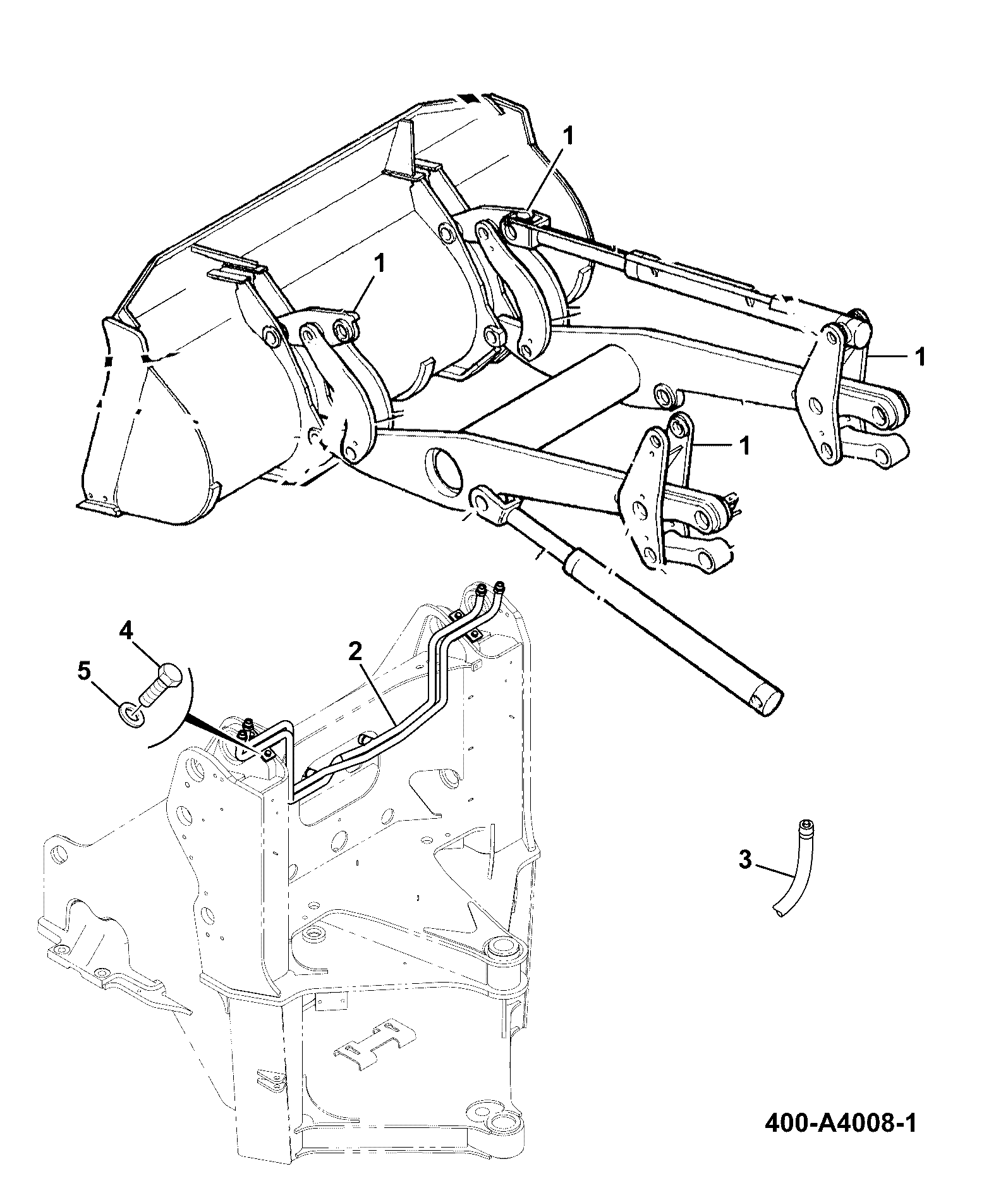

B320-60-1 LOADER LINKAGES HT NON PARALLEL LINKAGE Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Lever shovel ram l 331/28357	1	AVAILABLE TO ORDER	$2,290.40	Quantity
2	Lever shovel ram r 331/28358	1	AVAILABLE TO ORDER	$2,531.11	Quantity
3	PLATE INTER SIDEPLATE 331/16536	1	AVAILABLE TO ORDER	$1,357.90	Quantity
4	M/C SHOVEL LEVER NON//426/436HT 332/U7099	1	AVAILABLE TO ORDER	$3,089.59	Quantity

Showing 1 to 4 of 4 parts
