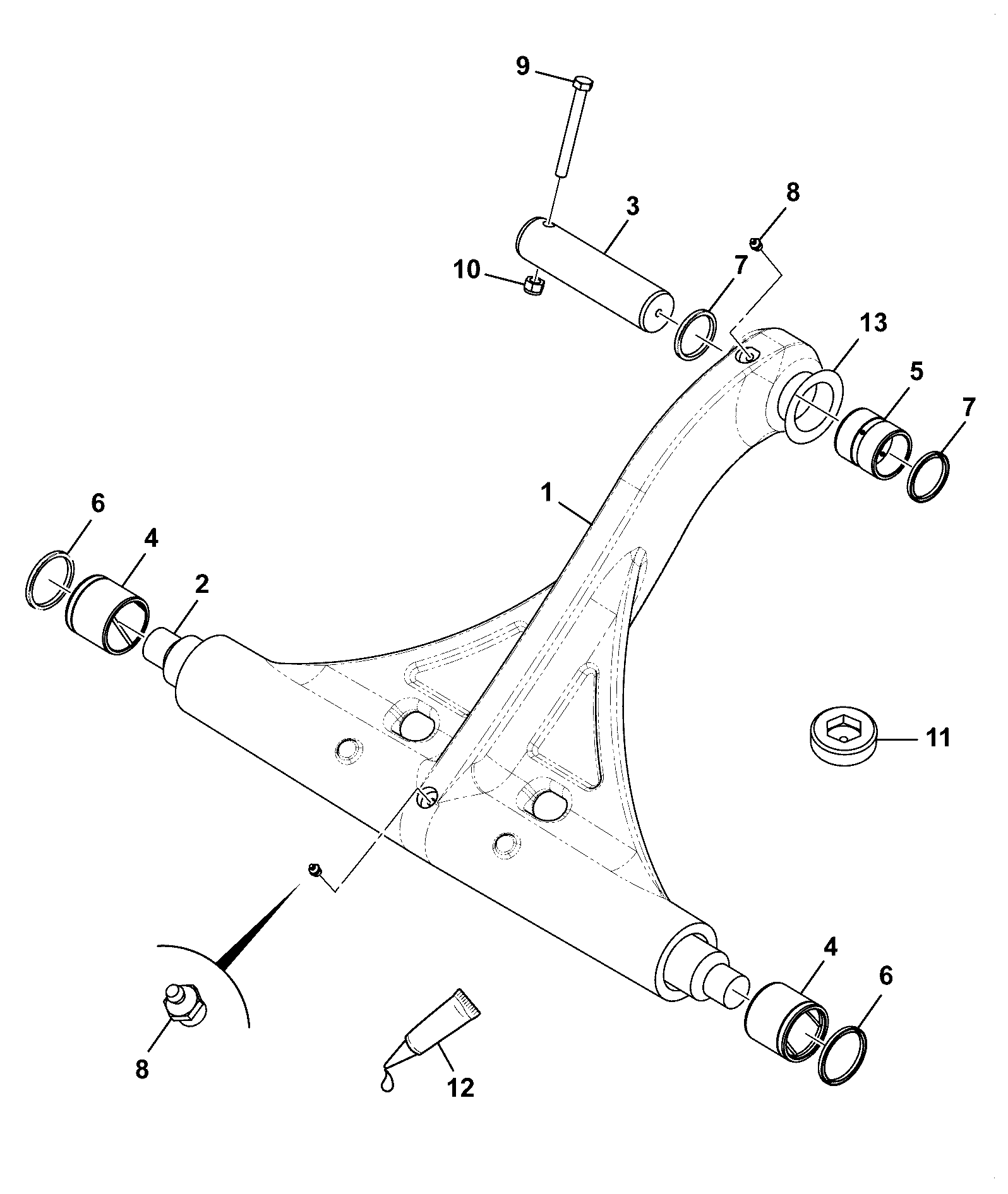

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | 409 Crowd Link (Painted) 333/R4592 M/C 333/S6158 | 1 | $2,062.84 | |||
| 2 | PIN - 60 X 235 332/S3787 | 1 | $241.99 | |||
| 3 | BOBBIN 331/51460 | 1 | $52.63 | |||
| 4 | PLATE 331/51440 | 1 | $62.64 | |||
| 5 | PERFORATED SPACER 332/S5233 | 1 | $18.66 | |||
| 6 | LINER BEARING LINE 333/S3344 | 1 | $66.85 | |||
| 7 | PIVOT PIN SEAL 60-70-5 813/00427 | 1 | $31.91 | |||
| 8 | Screw cap hd M10x3 1392/3408D | 1 | $4.11 | |||
| 9 | M10 CAPSCREW C/SNK 331/13004 826/10858 | 1 | $9.52 | |||
| 10 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 11 | Bolt 1315/3524D | 1 | $15.72 | |||
| 12 | Nut M12 STD SELF LOCK 1370/0403D | 1 | $1.01 | |||
| 13 | WA - HOSE GUIDE 400/M5821 | 1 | $93.34 | |||
| 14 | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $10.29 | |||
| 15 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
Showing 1 to 15 of 15 parts
Related Assemblies
-
DIAG-B320-20-1-404433 B320-20-1 LOADER LINKAGES TIPPING LINK ASSEMBLY
View Diagram -
DIAG-B320-35-1-404433 B320-35-1 LOADER LINKAGES ASSEMBLY SHIPPING LINK
View Diagram -
DIAG-B310-5-1-404433 B310-5-1 LOADER ARM/LOADER BOOM ASSEMBLY
View Diagram
