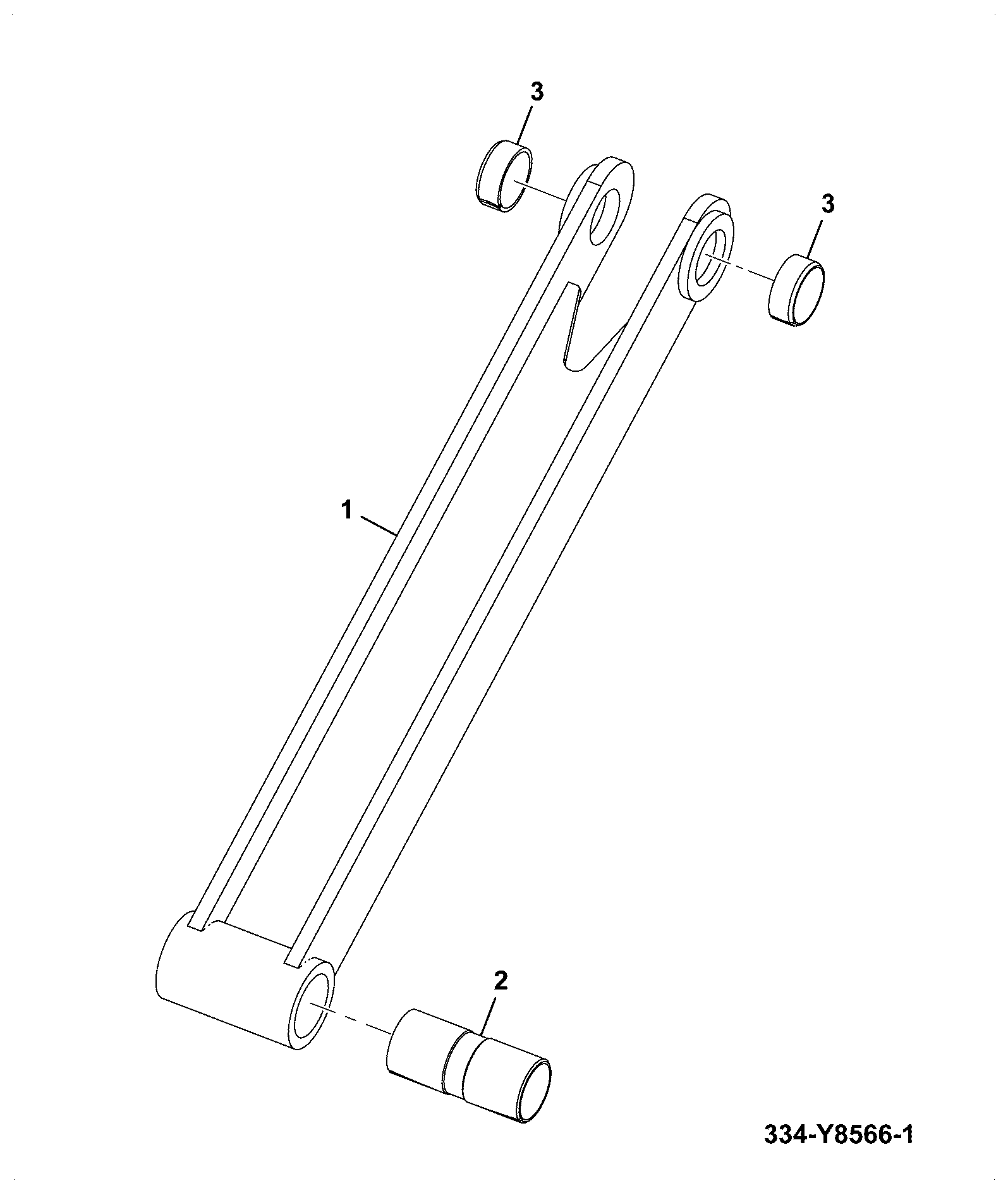

B320-25-1 LOADER LINKAGES LEVEL LINK, LH Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	GA LEVEL LINK -L/H black 128/F1657	1	AVAILABLE TO ORDER	$174.75	Quantity
2	LINER BEARING 808/00297	1	AVAILABLE TO ORDER	$142.94	Quantity
3	BUSH - SPRING STEEL 1208/0023	1	4 IN STOCK	$63.18	Quantity
4	GREASE NIPPLE STRAIGHT 1450/0002	1	6 IN STOCK	$5.55	Quantity

Showing 1 to 4 of 4 parts
