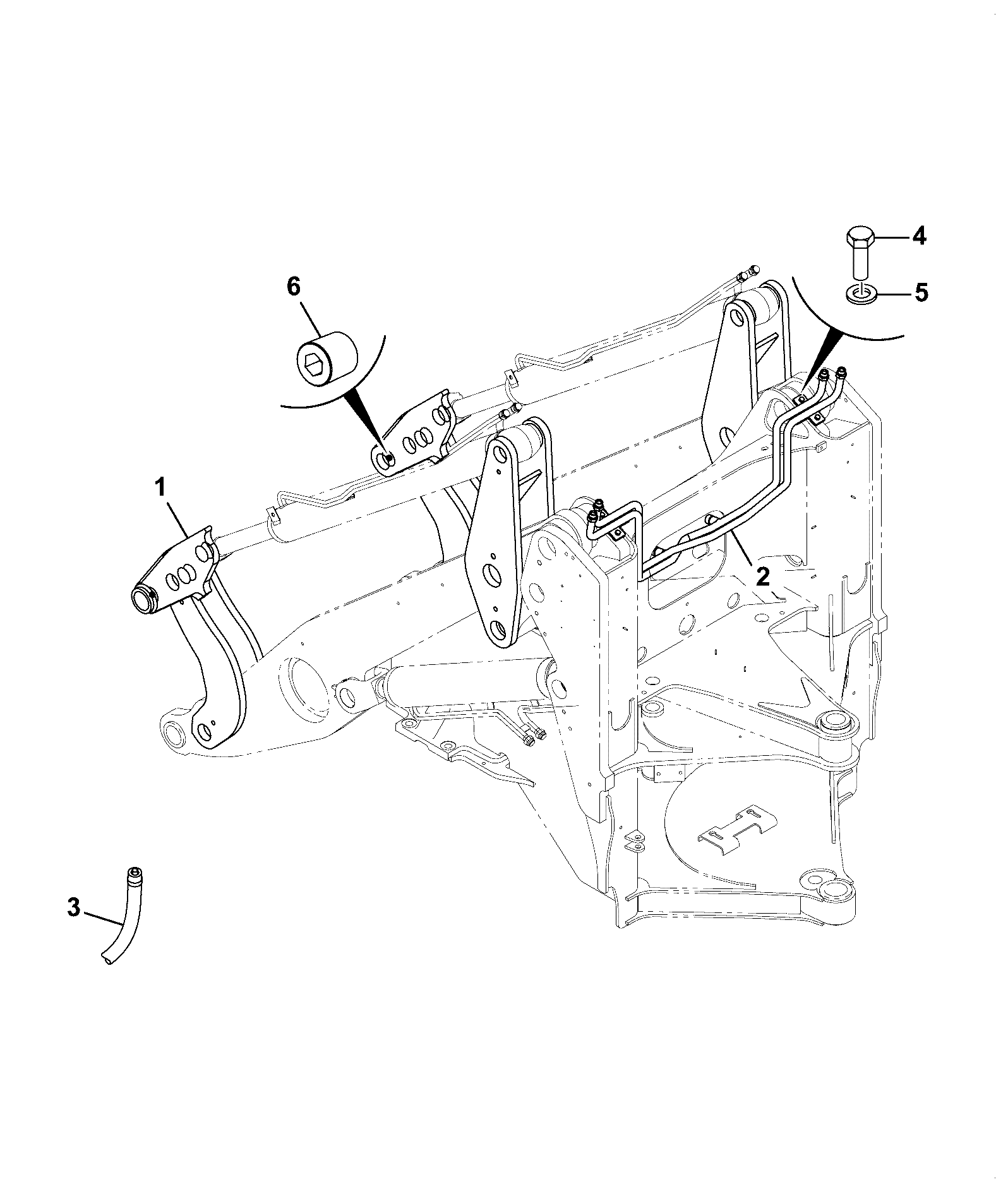

B320-15-1 LOADER LINKAGES SUPER HIGH LIFT LINKAGE KIT Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	PLATE INTER SIDEPLATE 331/16536	1	AVAILABLE TO ORDER	$1,357.90	Quantity
2	Lever shovel ram l 331/28359	1	AVAILABLE TO ORDER	$4,159.98	Quantity
3	Lever shovel ram r 331/28360	1	AVAILABLE TO ORDER	$3,535.92	Quantity
4	LINK BUCKET RAM 335/00977	1	AVAILABLE TO ORDER	$3,111.21	Quantity

Showing 1 to 4 of 4 parts
