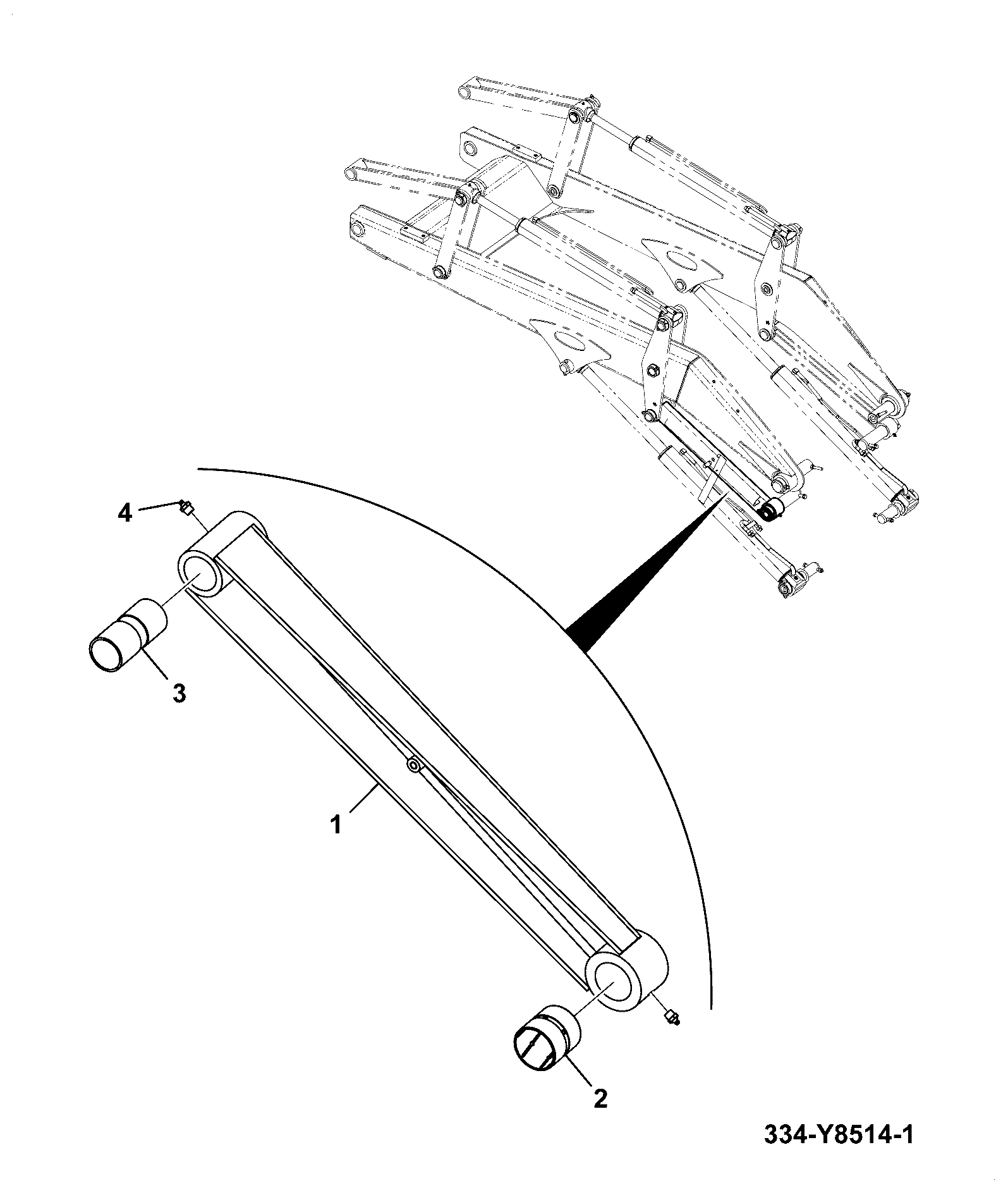

B320-10-1 LOADER LINKAGES RIGHT HAND SIDE LEVEL LINK Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	GA LEVEL LINK -R/H black 334/Y8516	1	AVAILABLE TO ORDER	$223.52	Quantity
2	LINER BEARING 808/00297	1	AVAILABLE TO ORDER	$142.94	Quantity
3	BUSH - SPRING STEEL 1208/0023	1	4 IN STOCK	$63.18	Quantity
4	GREASE NIPPLE STRAIGHT 1450/0002	1	6 IN STOCK	$5.55	Quantity

Showing 1 to 4 of 4 parts

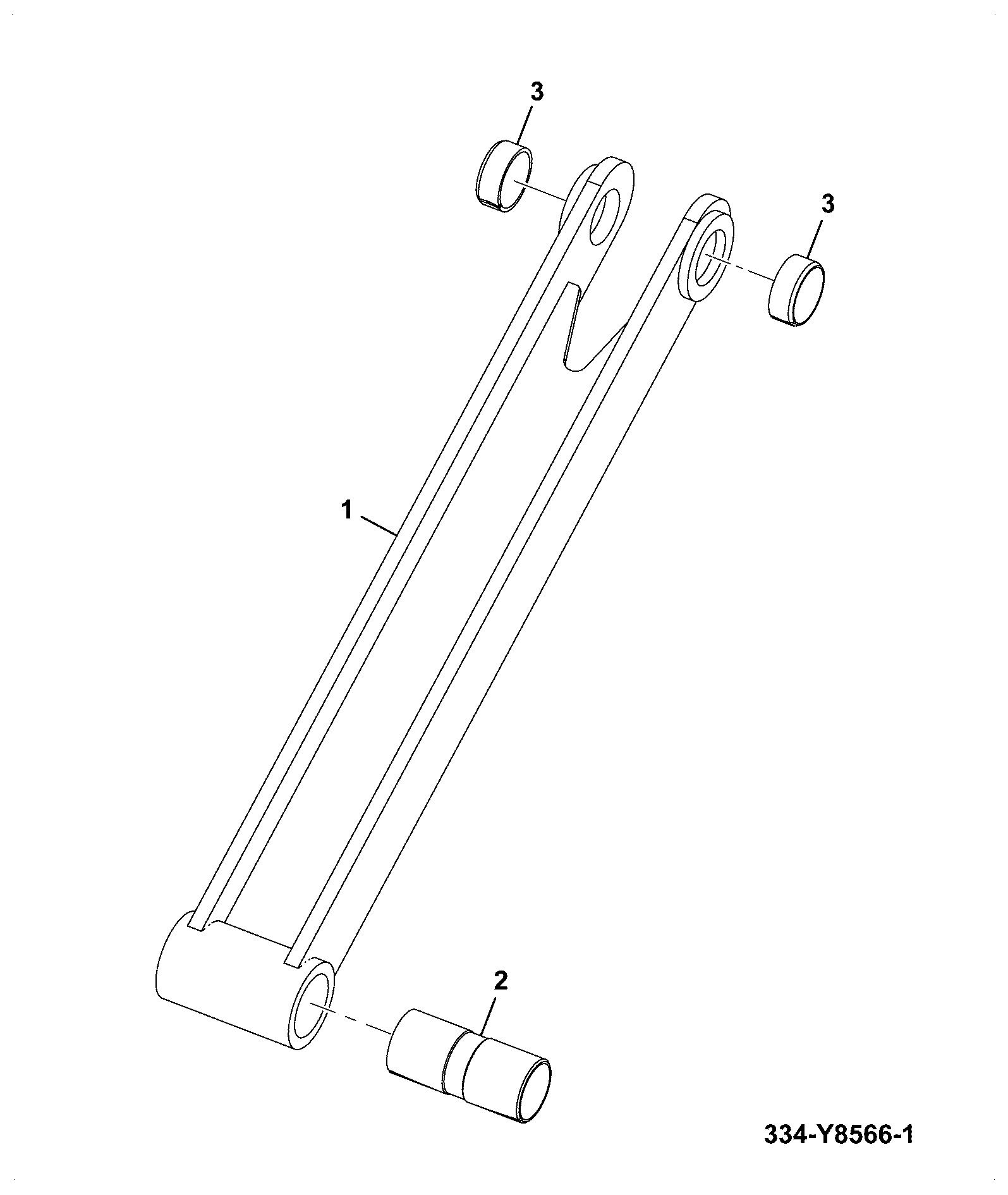

DIAG-B320-5-1-394738 B320-5-1 LOADER LINKAGES LEFT HAND LEVEL LINK
View Diagram

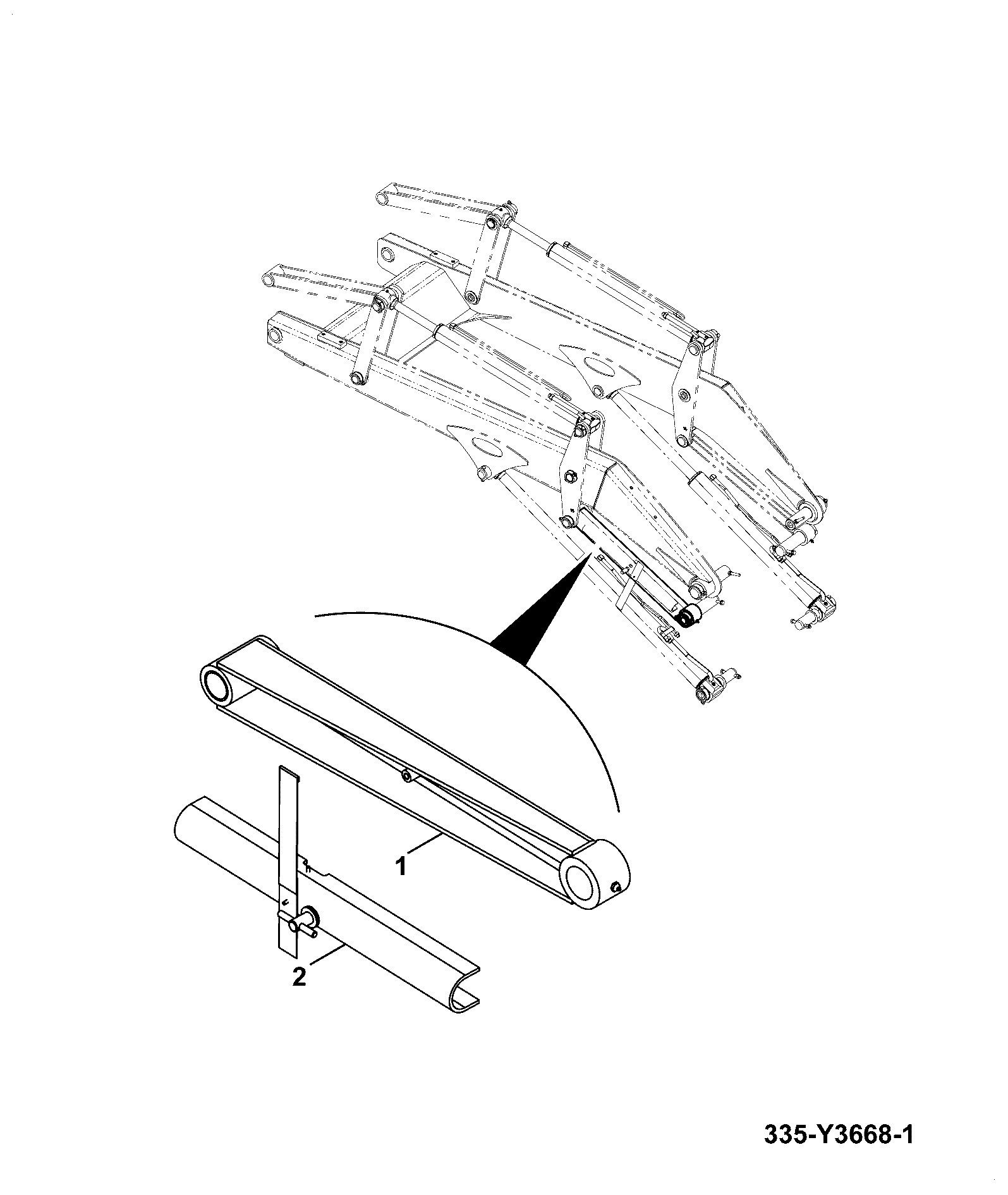

DIAG-B320-15-1-394738 B320-15-1 LOADER LINKAGES SHOVEL LINK
View Diagram
DIAG-B320-1-1-394738 B320-1-1 LOADER LINKAGES LEVEL LINK, LH
View Diagram

Previous Assembly DIAG-B320-5-1-394738 B320-5-1 LOADER LINKAGES LEFT HAND LEVEL LINK Next Assembly DIAG-B320-15-1-394738 B320-15-1 LOADER LINKAGES SHOVEL LINK
