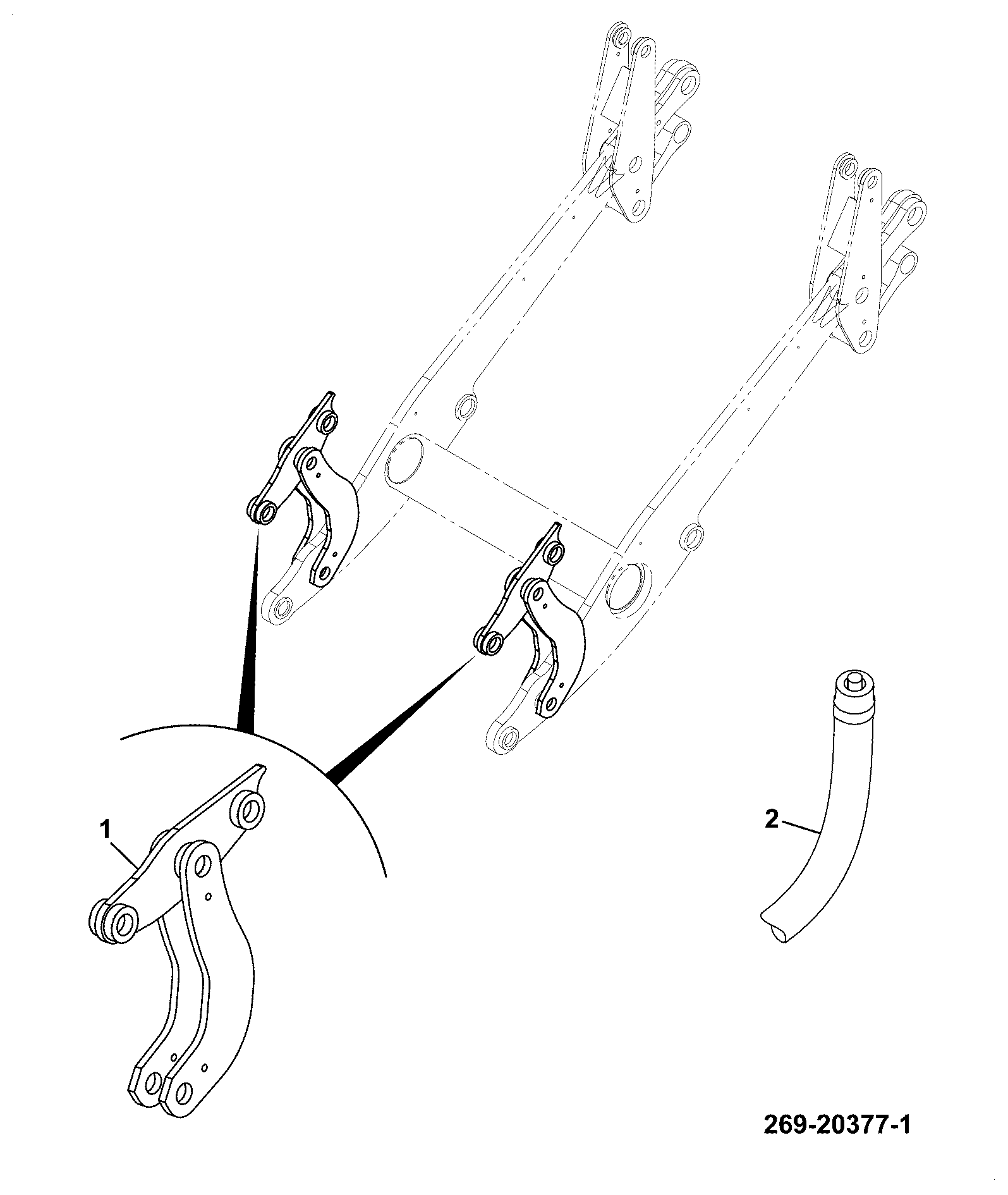

B320-1-1 LOADER LINKAGES SUPER HIGH LIFT Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	PLATE INTER SIDEPLATE 331/16536	1	AVAILABLE TO ORDER	$1,357.90	Quantity
2	Lever shovel ram l 331/28359	1	AVAILABLE TO ORDER	$4,159.98	Quantity
3	Lever shovel ram r 331/28360	1	AVAILABLE TO ORDER	$3,535.92	Quantity
4	LINK BUCKET RAM 335/00977	1	AVAILABLE TO ORDER	$3,111.21	Quantity

Showing 1 to 4 of 4 parts

DIAG-B320-2-1-404889 B320-2-1 LOADER LINKAGES HT HI-LIFT, NON PARALLEL LINKAGE, KIT
View Diagram
DIAG-B320-2-10-404889 B320-2-10 LOADER LINKAGES HT HI-LIFT, NON PARALLEL LINKAGE
View Diagram
DIAG-B330-3-1-404889 B330-3-1 LOADER PIVOTS HT BUILDS, SHL (SUPER HIGH LIFT)
View Diagram
