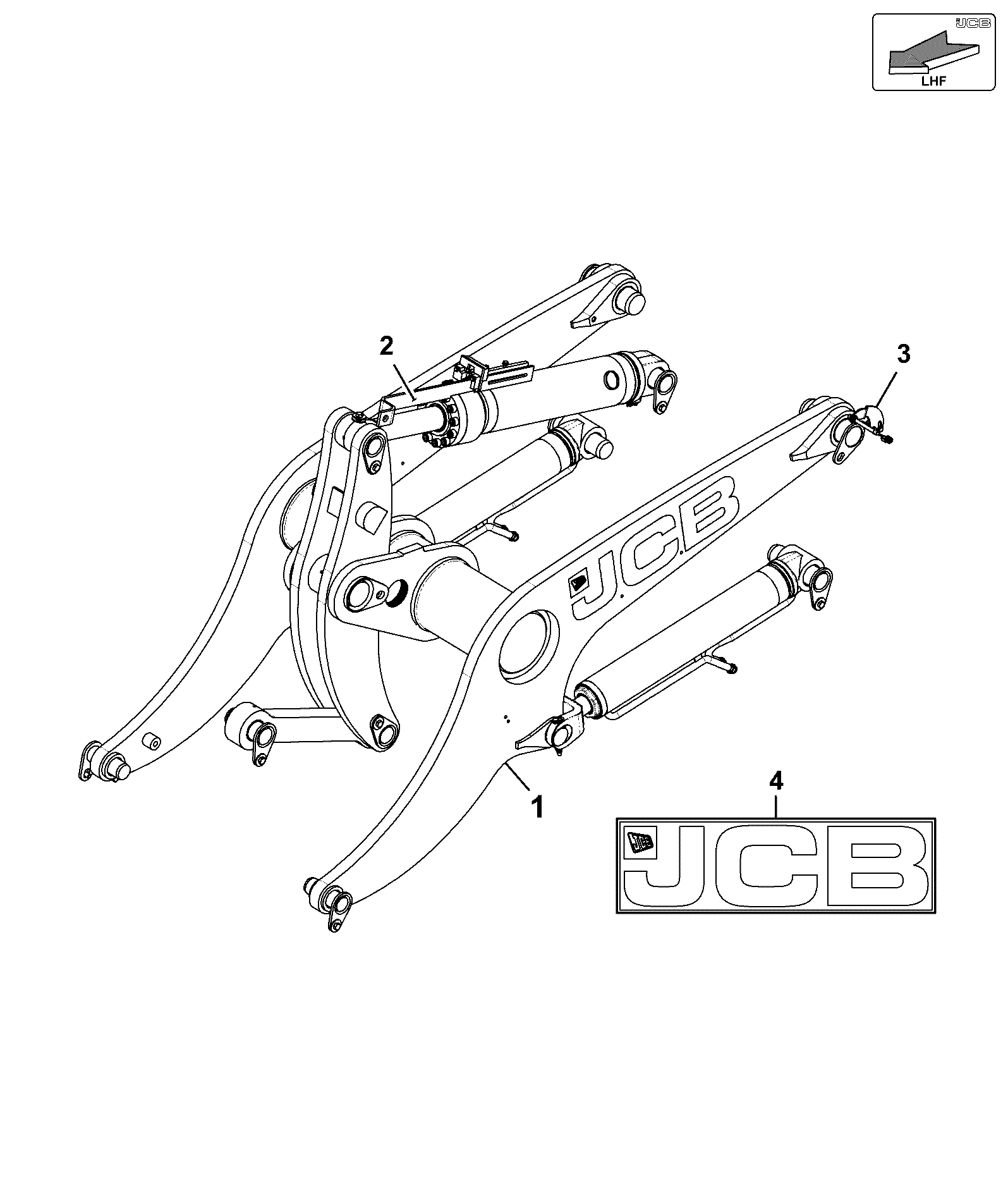

B320-1-1 LOADER LINKAGES ASSEMBLY PARALLEL LINKAGE Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	G.A. LINKAGE KIT 269/30343	1	AVAILABLE TO ORDER	$3,750.46	Quantity
2	HOSE 3/4BSP 940mm 615/04700	1	AVAILABLE TO ORDER	$83.70	Quantity

Showing 1 to 2 of 2 parts
