B310-5-1 LOADER ARM/LOADER BOOM INSTALLATION LONG Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Part Number	Qty.	Avl.	Price (USD)	Action
GA LEVEL LINK -R/H black 334/Y8516	1	AVAILABLE TO ORDER	$223.52	Quantity

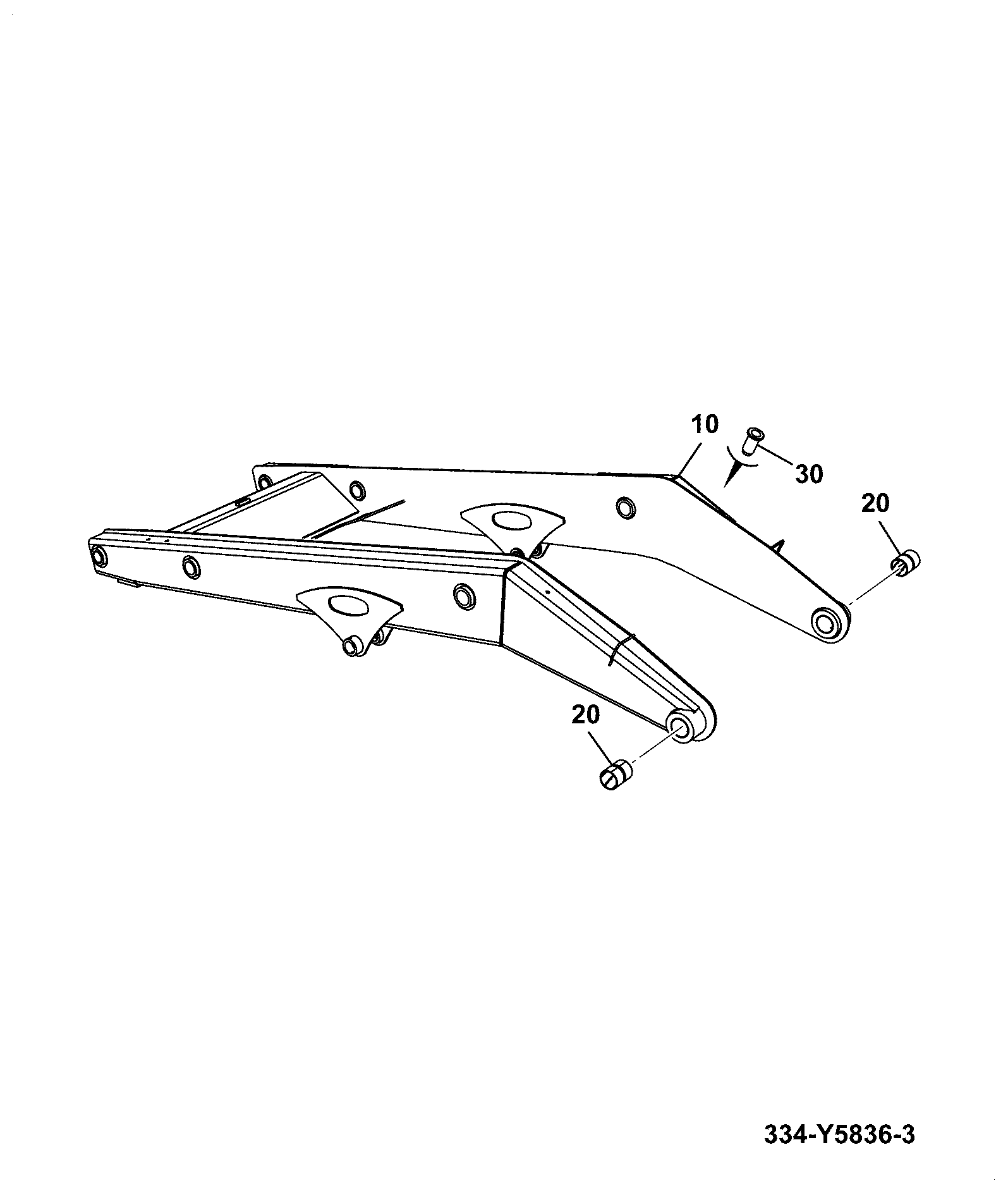

GA LOADER ARMS-LONG 334/Y5836	1	AVAILABLE TO ORDER	$3,595.67	Quantity
RAM LIFT 335/Y6210	1	AVAILABLE TO ORDER	$1,162.91	Quantity
RAM SHOVEL 400/R4023	1	AVAILABLE TO ORDER	$767.87	Quantity

Showing 1 to 4 of 4 parts

DIAG-B310-1-1-394869 B310-1-1 LOADER ARM/LOADER BOOM ASSEMBLY
View Diagram
DIAG-B310-15-1-394869 B310-15-1 LOADER ARM/LOADER BOOM GA LOADER ARM-HD
View Diagram

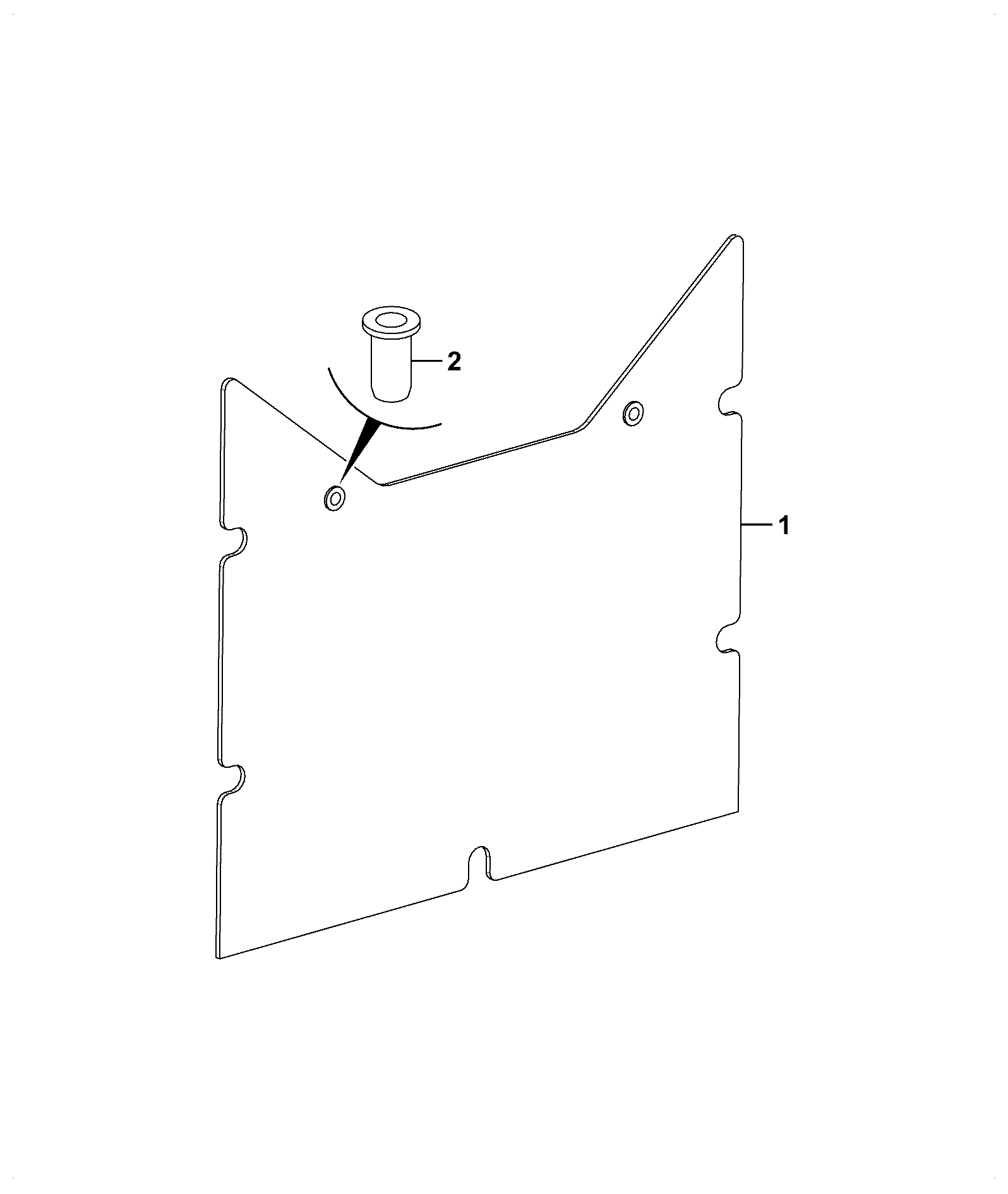

DIAG-B290-95-1-394869 B290-95-1 OTHER OPERATOR ENCLOSURE ITEMS GA COVER EXC.
