B310-5-1 LOADER ARM/LOADER BOOM LOADER ARM MOUNTING Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	GA LOADER ARMS-SHORT 128/E2615	1	AVAILABLE TO ORDER	$5,220.58	Quantity
2	LINER BEARING 808/00296	1	2 IN STOCK	$210.31	Quantity
3	RIVET NUT M8 826/01254 826/01106	1	AVAILABLE TO ORDER	$1.04	Quantity

Showing 1 to 3 of 3 parts

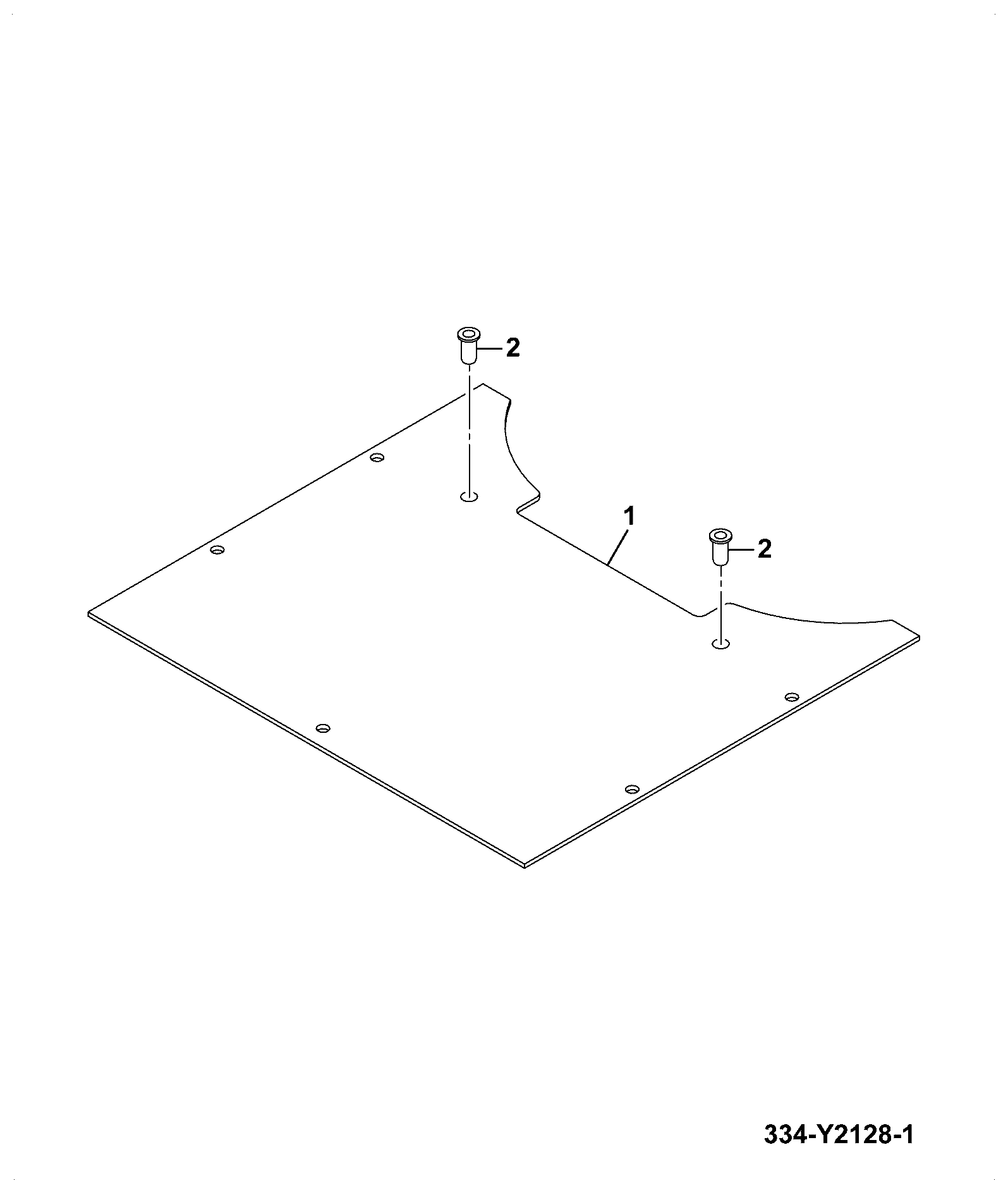

DIAG-B290-190-1-394763 B290-190-1 OTHER OPERATOR ENCLOSURE ITEMS PLATE ACCESS COVER, EXCAVATOR VALVE
View Diagram
DIAG-B310-10-1-394763 B310-10-1 LOADER ARM/LOADER BOOM INSTALLATION
View Diagram

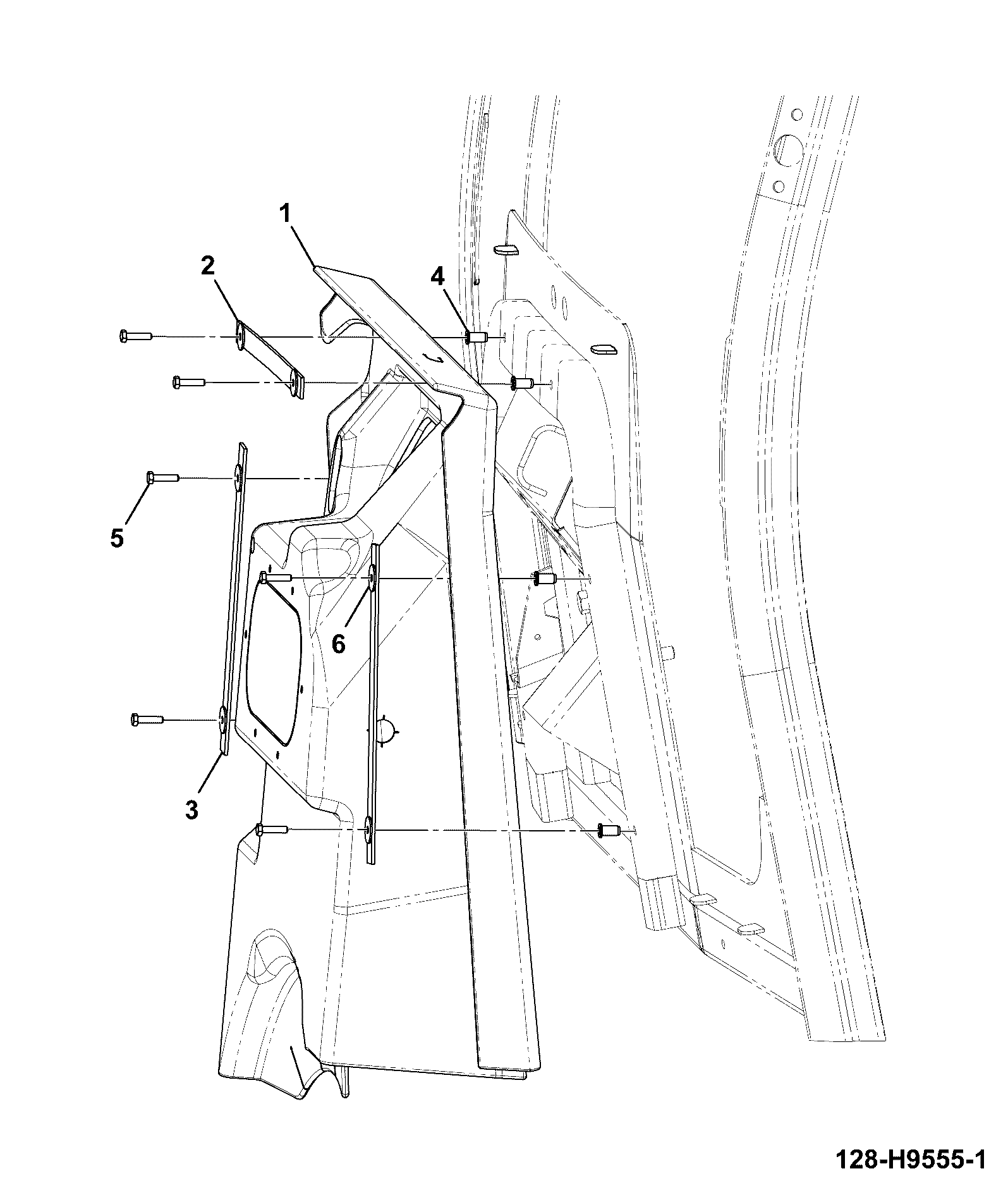

DIAG-B290-185-1-394763 B290-185-1 OTHER OPERATOR ENCLOSURE ITEMS BULKHEAD SEAL, HVAC
