Scroll to zoom Click a part # to view details

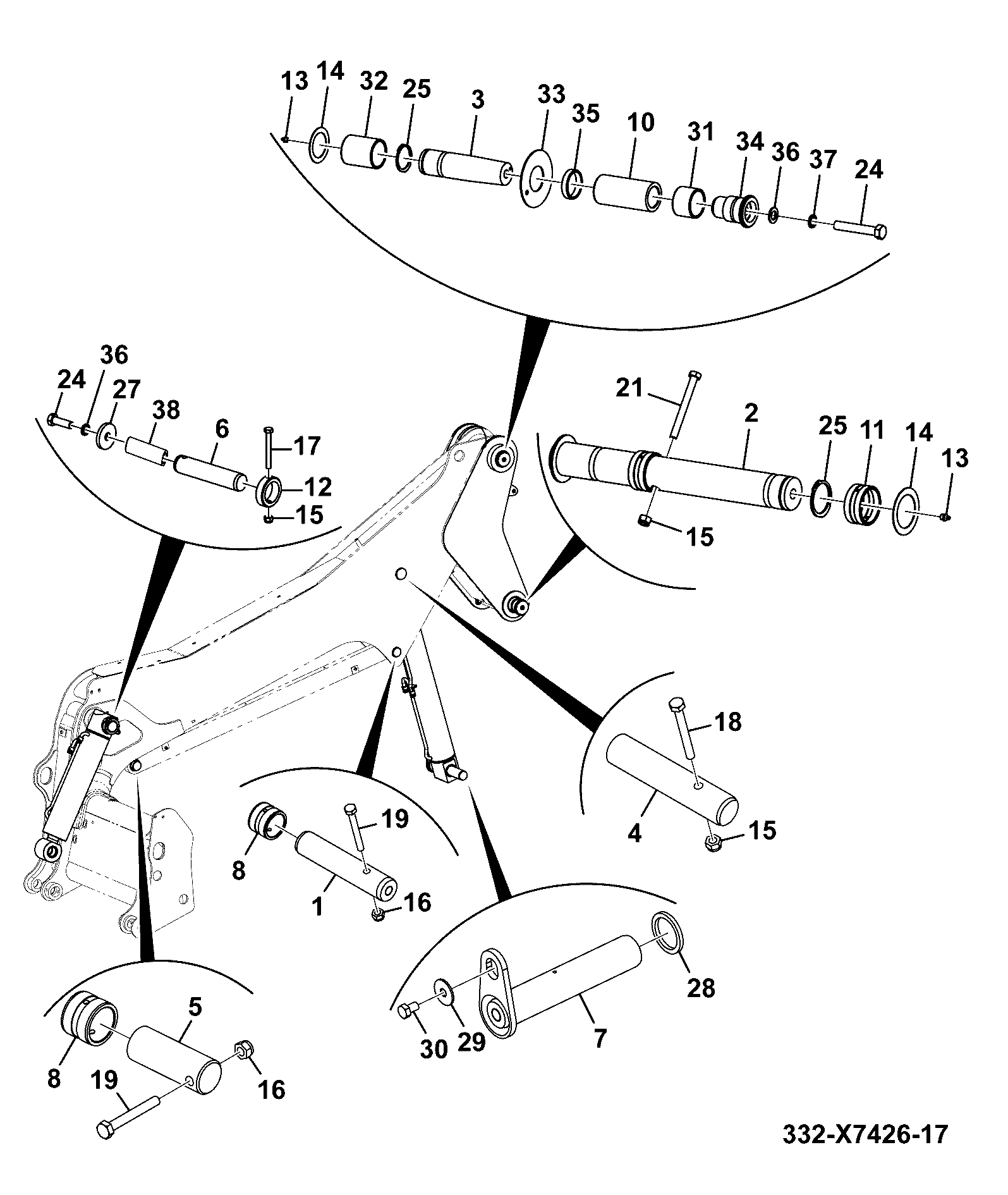

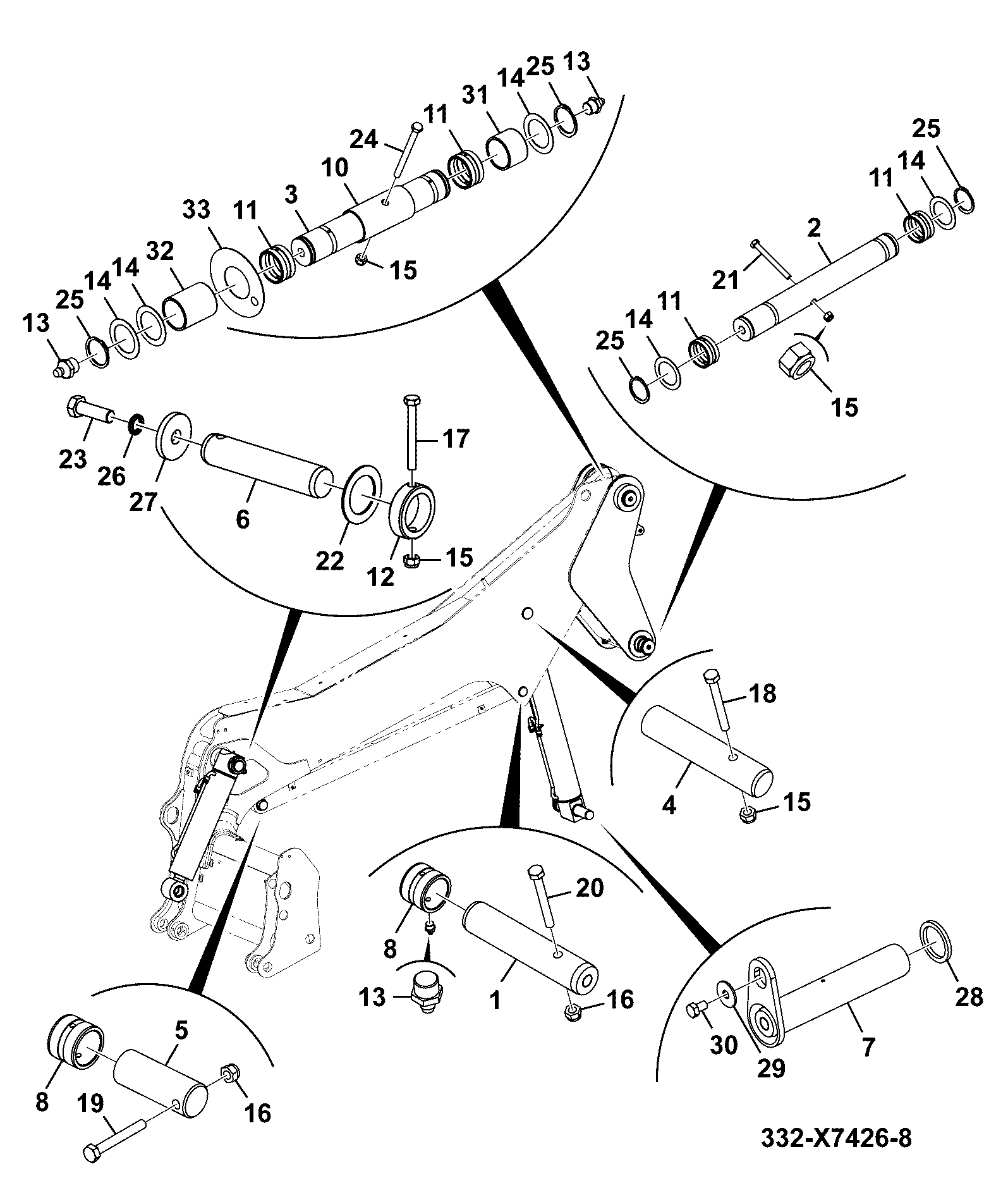

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | PIVOT PIN - LINK BOOM END 332/X7258 | 1 | $28.16 | |||
| 2 | PIVOT PIN - LOWER LINK 332/X7257 | 1 | $261.79 | |||
| 3 | PIVOT PIN - BOOM SP 332/X7259 | 1 | $181.63 | |||
| 4 | PIVOT PIN - 50 x 192 332/X7261 | 1 | $47.85 | |||
| 5 | PIVOT PIN SP- 40 DIAx93 332/X7255 | 1 | $41.51 | |||
| 6 | PIVOT PIN - TILT RAM 332/X6261 335/D2757 | 1 | $120.24 | |||
| 7 | WA - PIVOT PIN 263x40 332/X7234 | 1 | $90.82 | |||
| 8 | BUSH BI- METALLIC LOWER LINK SP 332/X7249 | 1 | $20.82 | |||
| 9 | SPACER - SP UPPER LINK 332/X7266 | 1 | $91.14 | |||
| 10 | SPACER - BOOM PIVOT SP 332/X6164 | 1 | $42.89 | |||
| 11 | LINER BEARING 809/00153 | 1 | $22.34 | |||
| 12 | LOCKING COLLAR 242/00195 | 1 | $115.24 | |||
| 13 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | |||
| 14 | SHIM 1.4MM 823/00471 | 1 | $12.29 | |||
| 15 | NUT M12 STD SELF LOCK 1370/0403Z | 1 | $2.11 | |||
| 16 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 17 | BOLT M10x90 1315/3419 | 1 | $2.38 | |||
| 18 | BOLT 1318/3520Z | 1 | $16.59 | |||
| 19 | BOLT 1318/3418Z | 1 | $51.49 | |||
| 20 | BOLT M10 x 90 -NYLONPATCH 1318/3419Z | 1 | $28.74 | |||
| 21 | BOLT M12*120 1318/3522Z | 1 | $23.40 | |||
| 22 | SPACER 50.5X75X2.67*OLD* 332/X7184 | 1 | $80.76 | |||
| 23 | BOLT M16x50 1315/3712Z | 1 | $9.15 | |||
| 24 | BOLT M12 x 150 -NYLONPATC 1318/3525Z | 1 | $3.82 | |||
| 25 | CIRCLIP 60MM 821/00517 | 1 | $17.40 | |||
| 26 | WASHER LOCK M16 823/10400 | 1 | $2.73 | |||
| 27 | WASHER 823/00369 | 1 | $55.32 | |||
| 28 | SPACER.SHORT.ZINC.506B 191/00666 | 1 | $68.95 | |||
| 29 | WASHER 1/2 LARGE PLAIN 1412/0005Z | 1 | $2.73 | |||
| 30 | SET SCREW M12X20 1315/0505Z | 1 | $2.18 | |||
| 31 | BUSH BI-METALLIC 332/L3550 | 1 | $27.84 | |||
| 32 | BUSH BI-METALLIC 332/L3544 | 1 | $43.66 | |||
| 33 | SHIM 60x130x1.4mm 819/00143 | 1 | $4.08 | |||
Showing 1 to 33 of 33 parts
Related Assemblies
-
DIAG-B310-25-5-395204 B310-25-5 LOADER ARM/LOADER BOOM PIN AND BUSH - VERTICAL LIFT
View Diagram -
DIAG-B310-25-20-395204 B310-25-20 LOADER ARM/LOADER BOOM PIN AND BUSH - VERTICAL LIFT
View Diagram -
DIAG-B310-15-1-395204 B310-15-1 LOADER ARM/LOADER BOOM FITTINGS SMALL PLATFORM
View Diagram
