B300-20-1 LOADER INSTALLATION ASSEMBLIES MAST VIEW ASSEMBLY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
4	Valve 333/C4781	1	AVAILABLE TO ORDER	$922.90	Quantity
6	Ram 333/E1492	1	AVAILABLE TO ORDER	$13,183.76	Quantity
A	5.5m MAST ABI- 4.5T ITA 6 333/W9016	1	AVAILABLE TO ORDER	$49,640.28	Quantity

Showing 1 to 3 of 3 parts

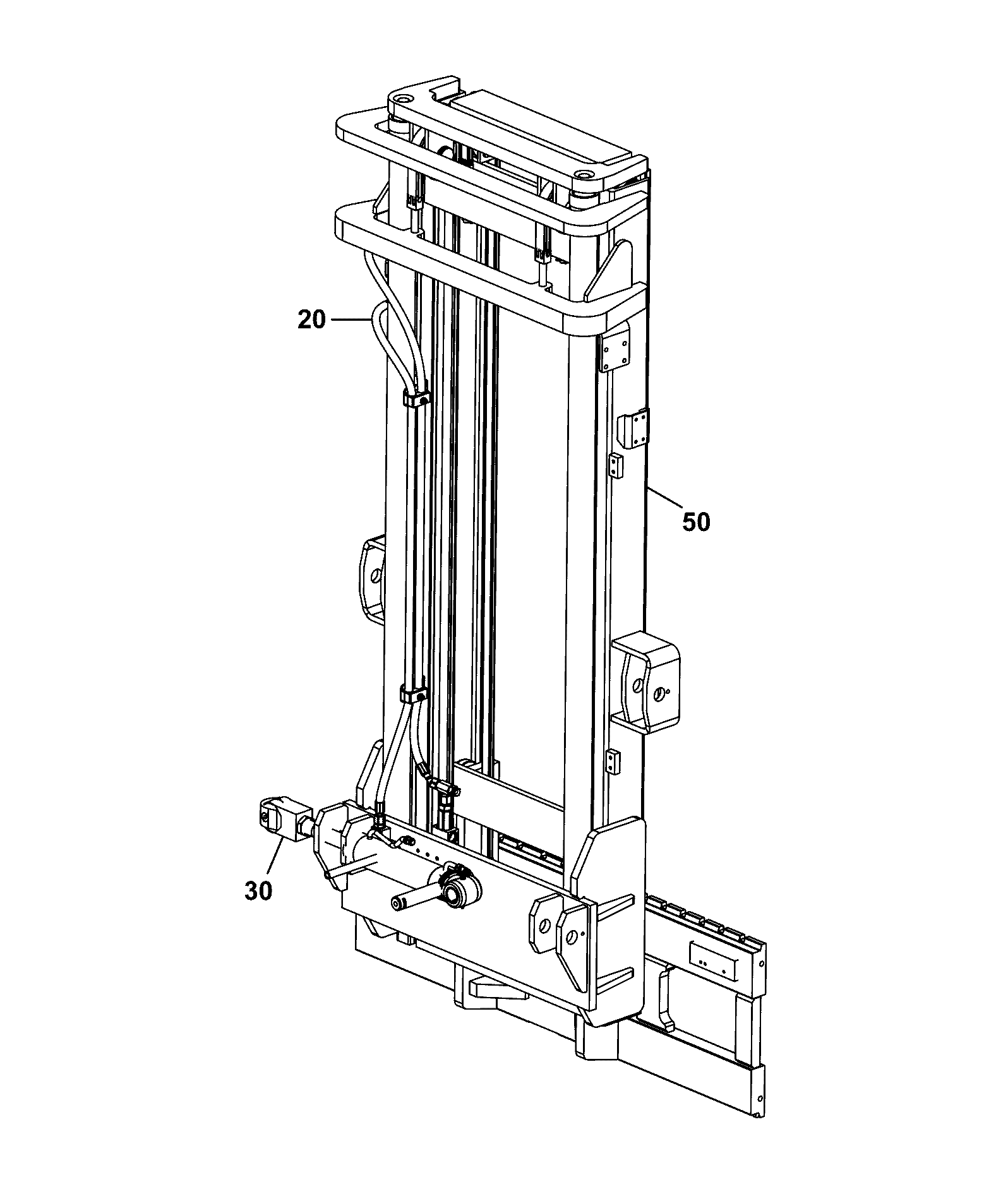

DIAG-B340-295-1-399491 B340-295-1 MAST ASSEMBLY 945, 5.5M, 4.5T
View Diagram
DIAG-B340-460-1-399491 B340-460-1 MAST BASIC MAST ASSEMBLY
View Diagram

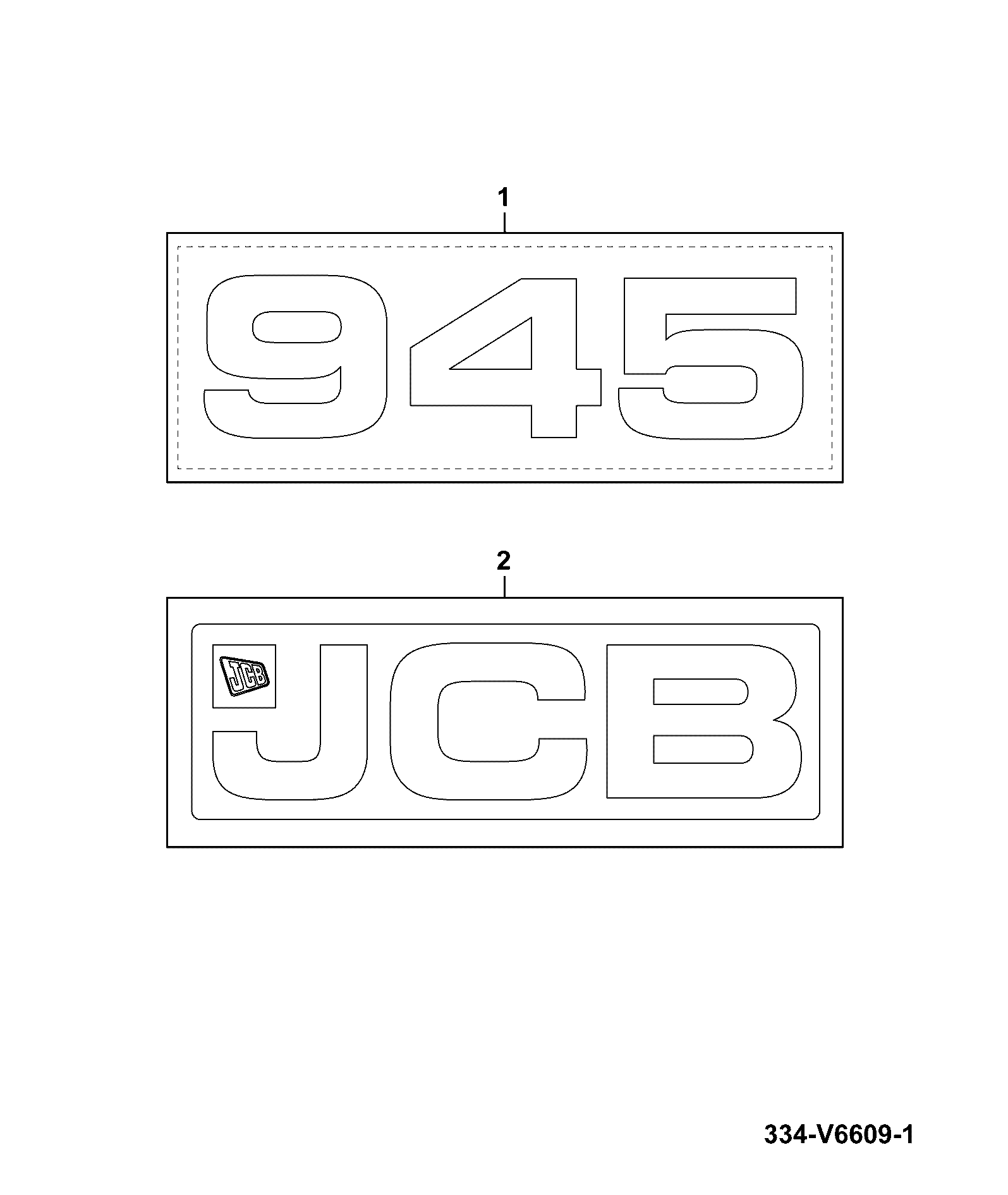

DIAG-B510-70-1-399490 B510-70-1 DECALS MACHINE IDENTIFICATION KIT DECAL , NO FENDER
View Diagram
