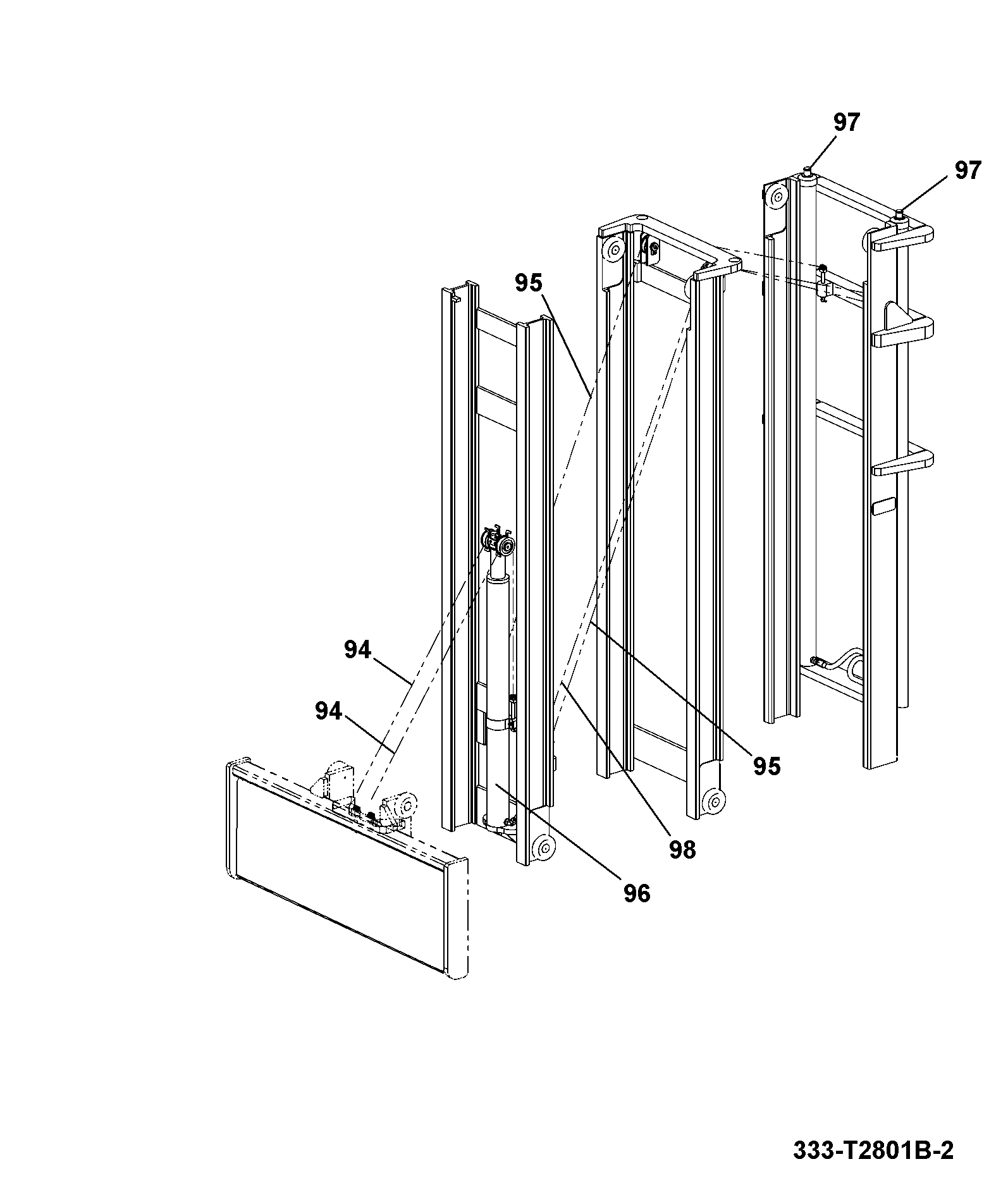

B3-940-33 MAST CHAINS TRIPLEX, 80RT-MM, 22′ LIFT HEIGHT Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
94	Chain 333/C0866	1	AVAILABLE TO ORDER	$1,370.82	Quantity
94	CHAIN-FRONT LIFT-PIN TYPE CARRIAGE 333/C5856	1	AVAILABLE TO ORDER	$968.07	Quantity
95	Chain rear main li 333/C0873	1	AVAILABLE TO ORDER	$1,050.90	Quantity
97	RAM MAIN LIFT CYLINDER 333/C0887	1	AVAILABLE TO ORDER	$6,010.74	Quantity

Showing 1 to 4 of 4 parts
