Scroll to zoom Click a part # to view details

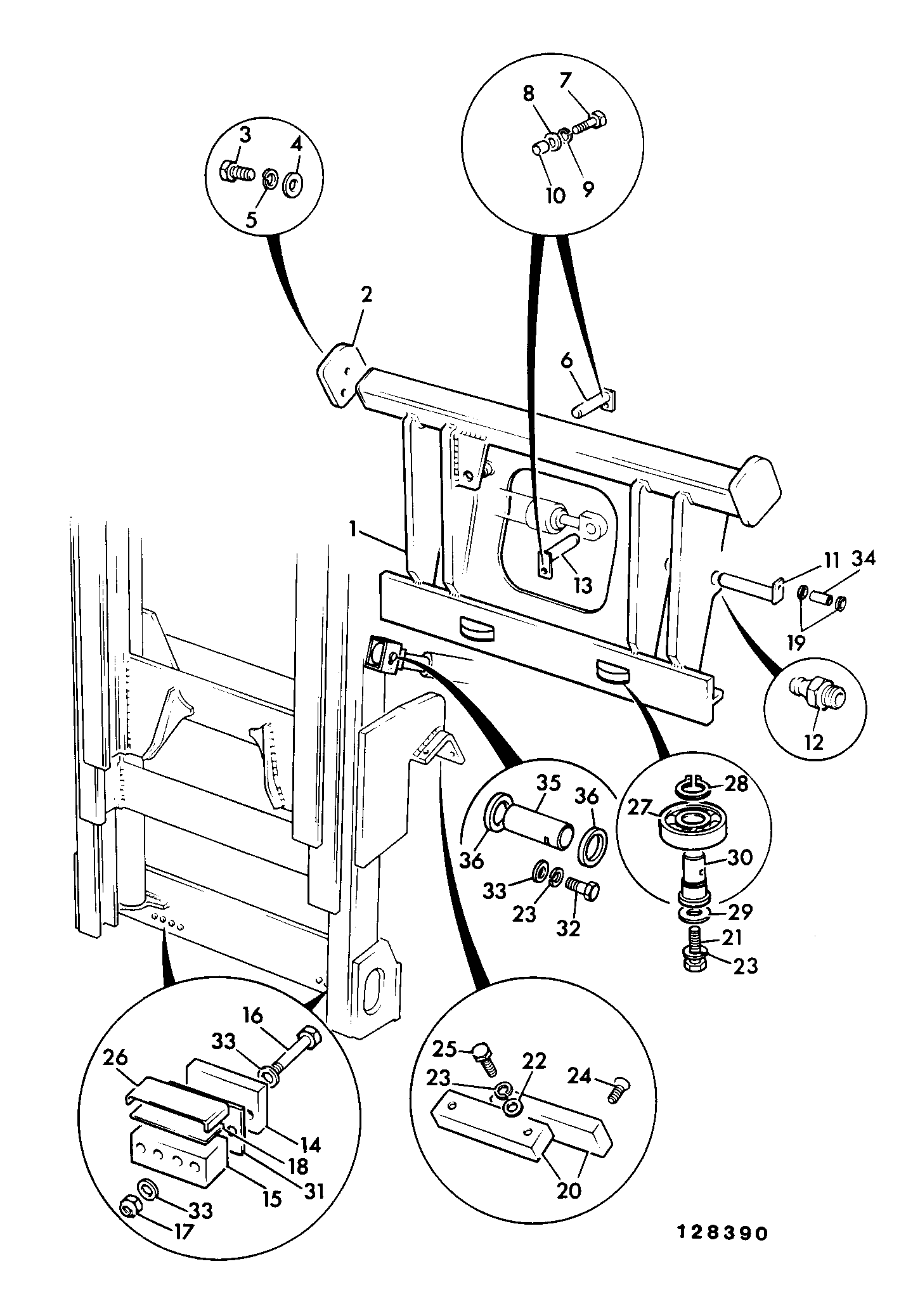

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | BRACKET 191/54900 | 1 | $1,422.93 | |||
| 2 | SIDESHIFT CARRIER LITE 191/54800 | 1 | $2,181.16 | |||
| 3 | PIN PIVOT 911/25300 | 1 | $842.26 | |||
| 4 | PIN PIVOT 811/30103 | 1 | $64.76 | |||
| 5 | PAD-WEAR 191/61400 | 1 | $328.86 | |||
| 5 | SCREW M12x25 COUNTERSUNK 826/01209 | 1 | $25.33 | |||
| 6 | PAD-WEAR 191/56600 | 1 | $278.49 | |||
| 9 | SCREW-C/SUNK 826/00840 | 1 | $25.37 | |||
| 10 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.61 | |||
| 11 | PIVOT PIN 811/30104 | 1 | $255.04 | |||
| 12 | SCREW 1/2 X 1-1/4 UNF 1305/0408Z | 1 | $6.35 | |||
| 12 | SET-SCREW M12 L-_30mm 1315/0508Z | 1 | $0.81 | |||
| 13 | (W) (P) WASHER 1/2 MEDIUM PLAIN 1411/0005Z | 1 | $2.97 | |||
| 13 | WASHER M12 PLAIN(KANBAN) 1420/0009Z | 1 | $1.15 | |||
| 14 | SPRING-WASHER M12 1425/0009Z 1425/0009D | 1 | $0.85 | |||
| 14 | WASHER 5/16 SPRING 1416/0005Z | 1 | $2.54 | |||
| 15 | BOLT M16x60 1315/3714Z | 1 | $0.00 | |||
| 16 | WASHER M16 PLAIN 1420/0011Z | 1 | $3.08 | |||
| 17 | NUT M16 STD SELF LOCK 1370/0603Z | 1 | $0.00 | |||
| 18 | SET 1/2UNFx1.3/4 HT 1305/0412Z | 1 | $8.24 | |||
| 18 | SET M12 X 45 HT 1315/0511Z | 1 | $1.75 | |||
| 21 | SET-SCREW M10 L-_25mm 1315/0407 1315/0407Z | 1 | $5.34 | |||
| 22 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.00 | |||
| 24 | WASHER 1/4 LARGE PLAIN 1412/0001Z 1412/0001D | 1 | $0.14 | |||
| 25 | (W) (Pre-P) WASHER M6 SPRING (BR3) 1425/0006Z | 1 | $0.14 | |||
| 26 | SET SCREW M6x12 1315/0201Z | 1 | $1.63 | |||
| 27 | SHIM 1.6 191/00528 | 1 | $44.26 | |||
| 28 | SHIM 1.6MM 153/02807 | 1 | $6.94 | |||
| 29 | SHIM 3.0 191/00529 | 1 | $49.33 | |||
| 31 | PIN PIVOT 811/60038 | 1 | $370.30 | |||
| 32 | SPACER 191/00365 | 1 | $71.64 | |||
| 34 | PLATE RESTRAINING 191/00416 | 1 | $36.11 | |||
| 36 | SET-SCREW M12 L-_25mm(KANBAN) 1315/0507Z | 1 | $2.59 | |||
| 37 | SHIM 0.5MM 191/00560 | 1 | $57.92 | |||
Showing 1 to 34 of 34 parts
Related Assemblies
-
DIAG-B3-5-5-399311 B3-5-5 CARRIAGE, SIDESHIFT
View Diagram -

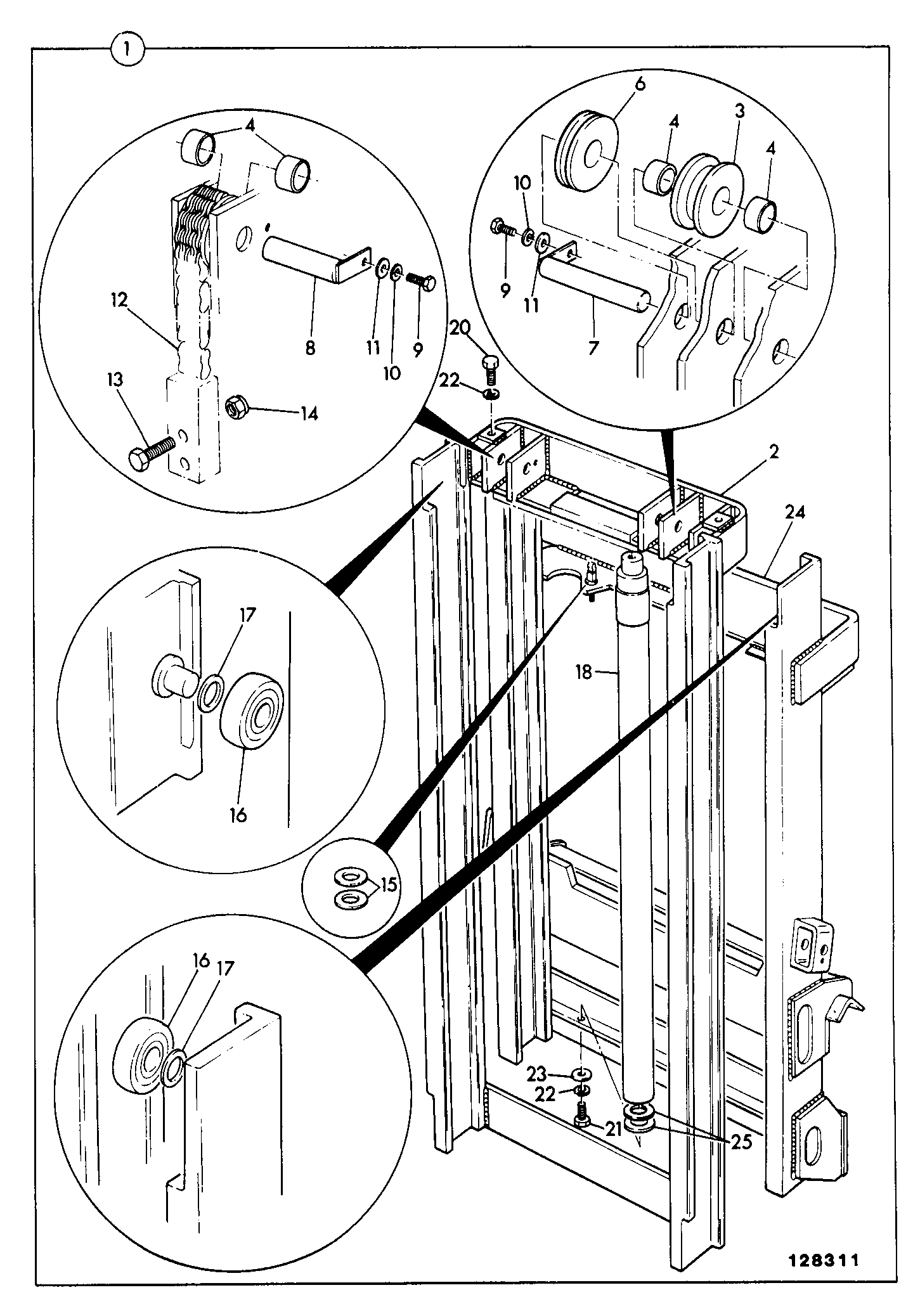

DIAG-B3-5-4-399311 B3-5-4 MAST, MIDDLE & OUTER 14'9" FREELIFT 6000 LBS, SIDESHIFT
View Diagram -

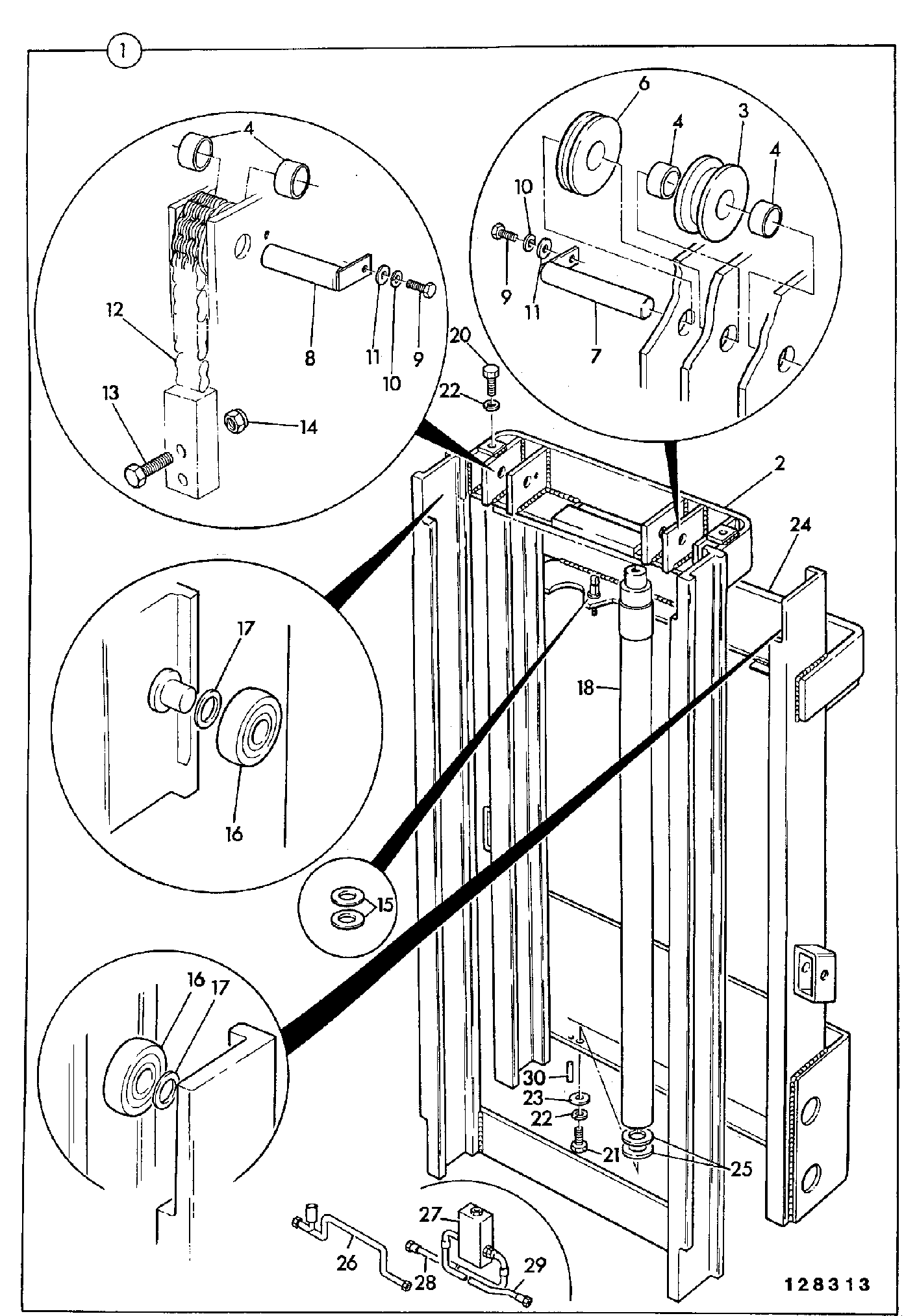

DIAG-B3-5-3-399311 B3-5-3 MAST, MIDDLE & OUTER 14'9" FREELIFT 6000 LBS, SIDESHIFT
View Diagram
