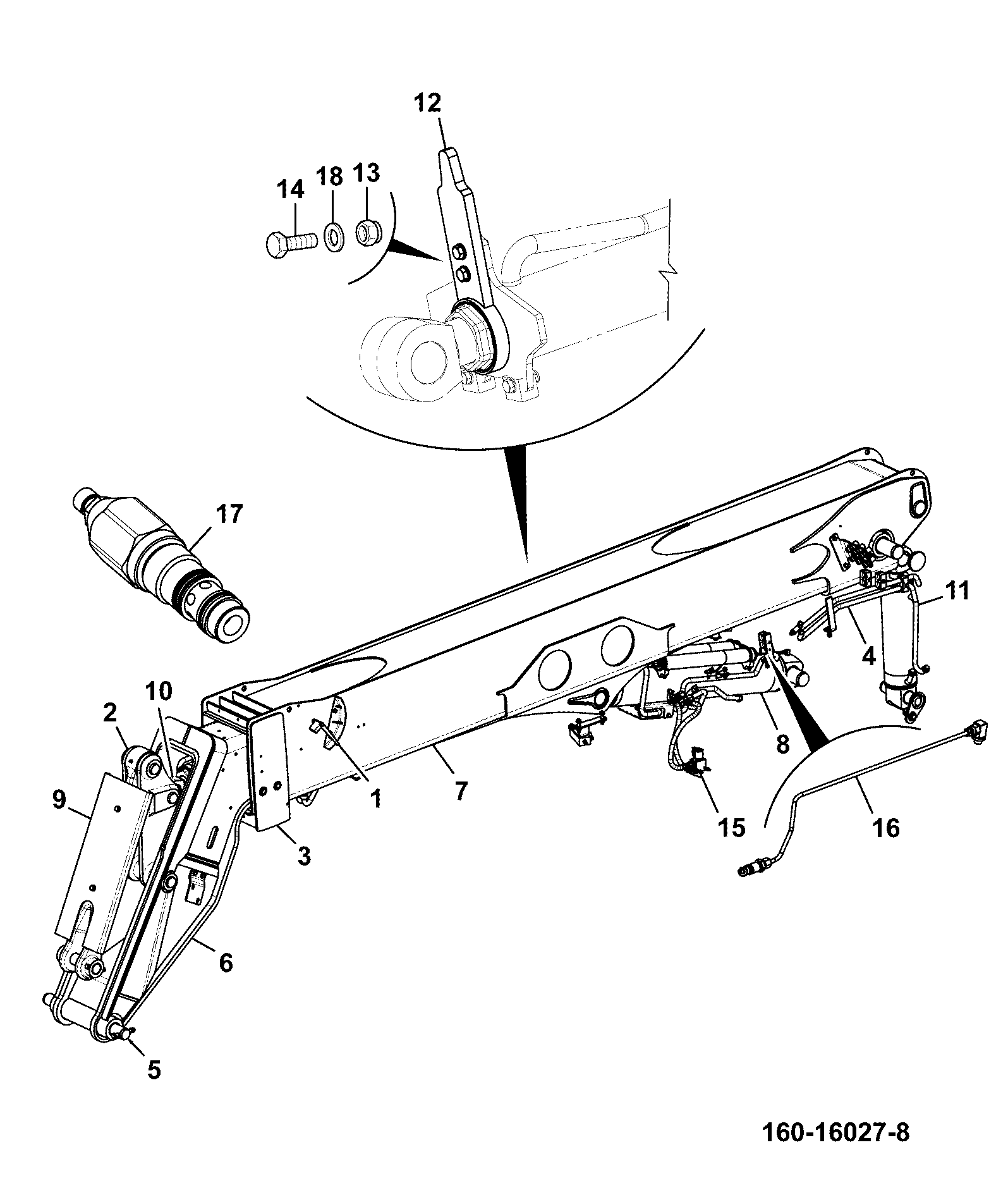

B3-30-1 BOOM LIFT END ASSEMBLY SRS Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
7	OUTER BOOM 531-70 YELLOW 333/C5630	1	AVAILABLE TO ORDER	$9,545.49	Quantity
10	GA TILT RAM120X60 (P42 LF) 563/60126	1	AVAILABLE TO ORDER	$5,586.44	Quantity
11	GA DISP (530-70) REC (P42) 563/60104	1	AVAILABLE TO ORDER	$5,409.41	Quantity
14	CHECK VALVE (E6B060Z - 340 - N409) 25/207300	1	1 IN STOCK	$536.24	Quantity

Showing 1 to 4 of 4 parts

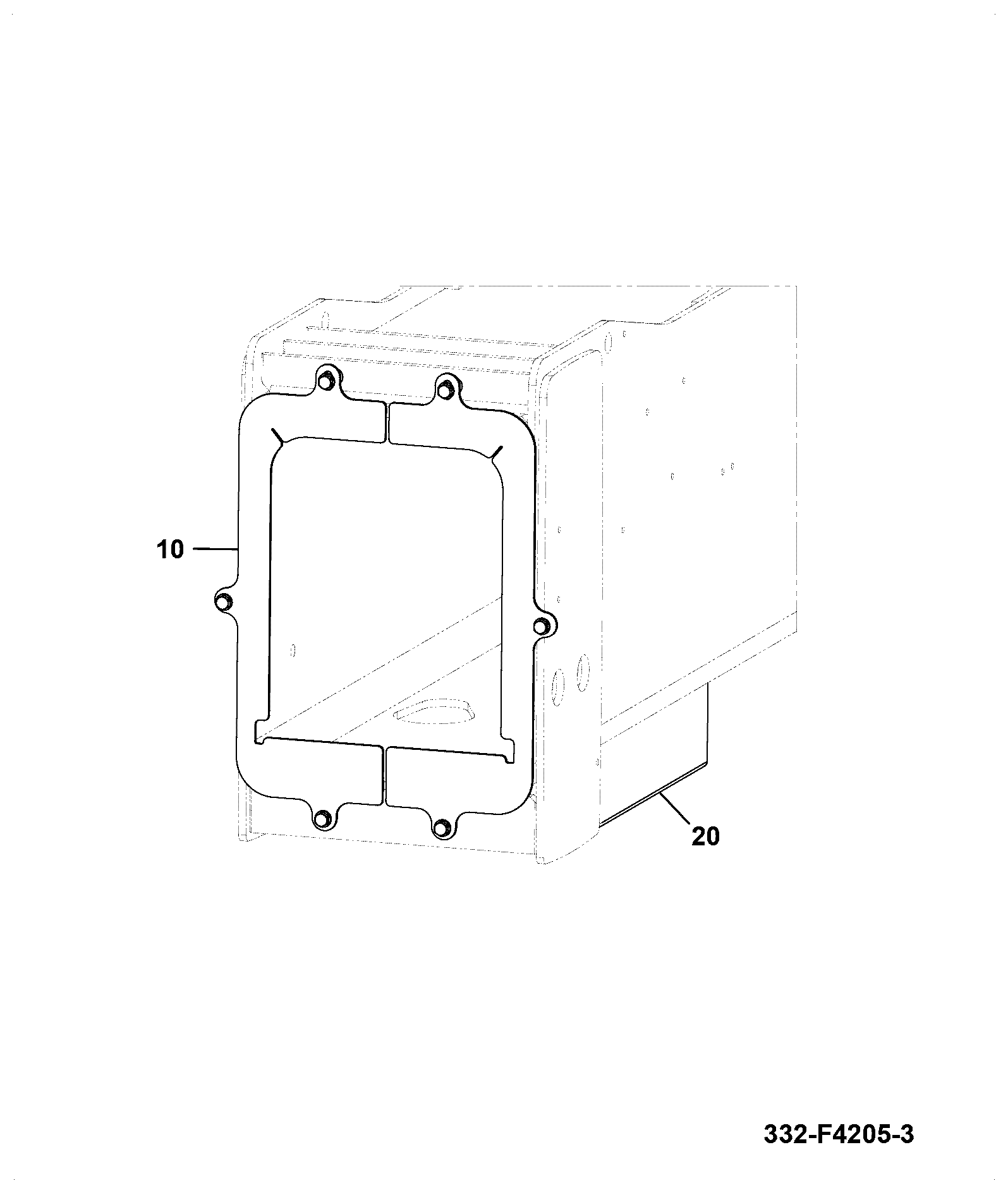

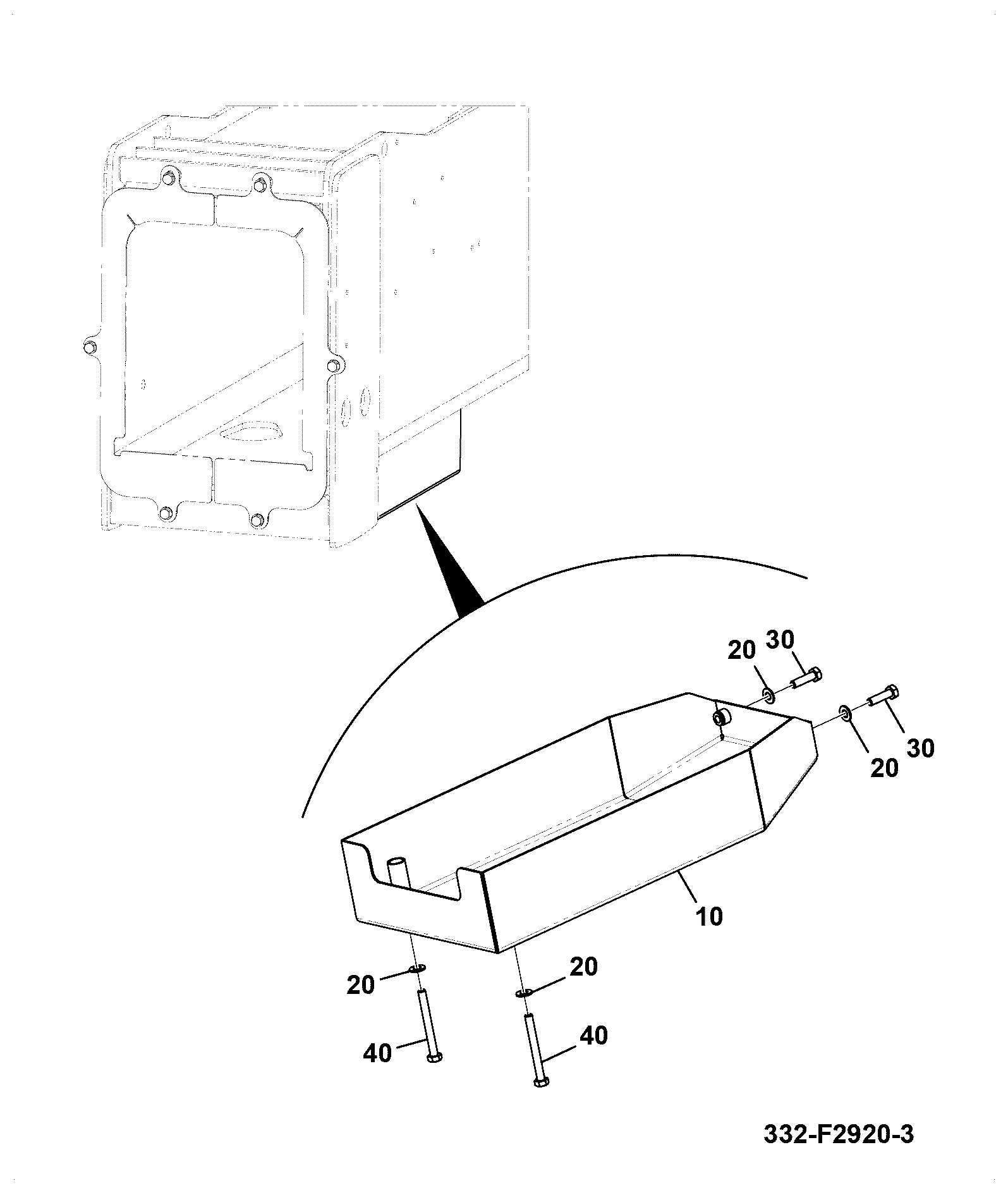

DIAG-B3-20-30-400911 B3-20-30 BOOM GUARDS ETC UNDERBOOM WASTEMASTER ONLY
View Diagram
DIAG-B3-35-1-400911 B3-35-1 BOOM LIFT END ASSEMBLY SRS
View Diagram
DIAG-B3-20-25-400911 B3-20-25 BOOM WASTEMASTER BOOM KIT
View Diagram
