Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | M/C SHOVEL LINK LONG 125/35200 | 1 | $905.19 | |||
| 2 | SHOVEL LEVER long 331/43843 | 1 | $415.61 | |||
| 4 | BUSH - SPRING STEEL 1208/0023 | 1 | $63.18 | |||
| 5 | SPRING BUSH 809/10030 | 1 | $3.41 | |||
| 6 | P/PIN 44.49/44.37 * 166.5 348/00016 811/90471 | 1 | $90.74 | |||
| 7 | SHIM 0.5mm 823/10347 | 1 | $3.88 | |||
| 7 | SHIM 1.4mm 819/00049 | 1 | $3.49 | |||
| 7 | SPACER 3MM 819/00148 | 1 | $12.79 | |||
| 8 | SHOULDER RING 1 3/4 823/00334 | 1 | $2.94 | |||
| 9 | P/PIN 44.49/44.37 * 166.5 348/00017 811/90472 | 1 | $126.53 | |||
| 10 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | |||
| 11 | GREASE NIPPLE STRAIGHT 1450/0002 | 1 | $5.55 | |||
| 12 | SHOVEL STOP 12mm 123/03326 | 1 | $50.43 | |||
| 12 | SHOVEL STOP 25mm 331/30323 | 1 | $91.86 | |||
| 13 | CAP SCREW M10x45 1391/3411Z | 1 | $5.82 | |||
| 13 | SET-SCREW M10 L-_30mm 1315/0408Z | 1 | $1.22 | |||
| 14 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 15 | RIVET NUT M10 826/01249 | 1 | $8.20 | |||
| 16 | CAP NIPPLE 835/00017 835/00017A | 1 | $4.12 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-
DIAG-B3-3-15-395127 B3-3-15 ARMS, LOADER SHOVEL LINKAGE, AWS AUSTRIAN, SWISS, ITALIAN
View Diagram -

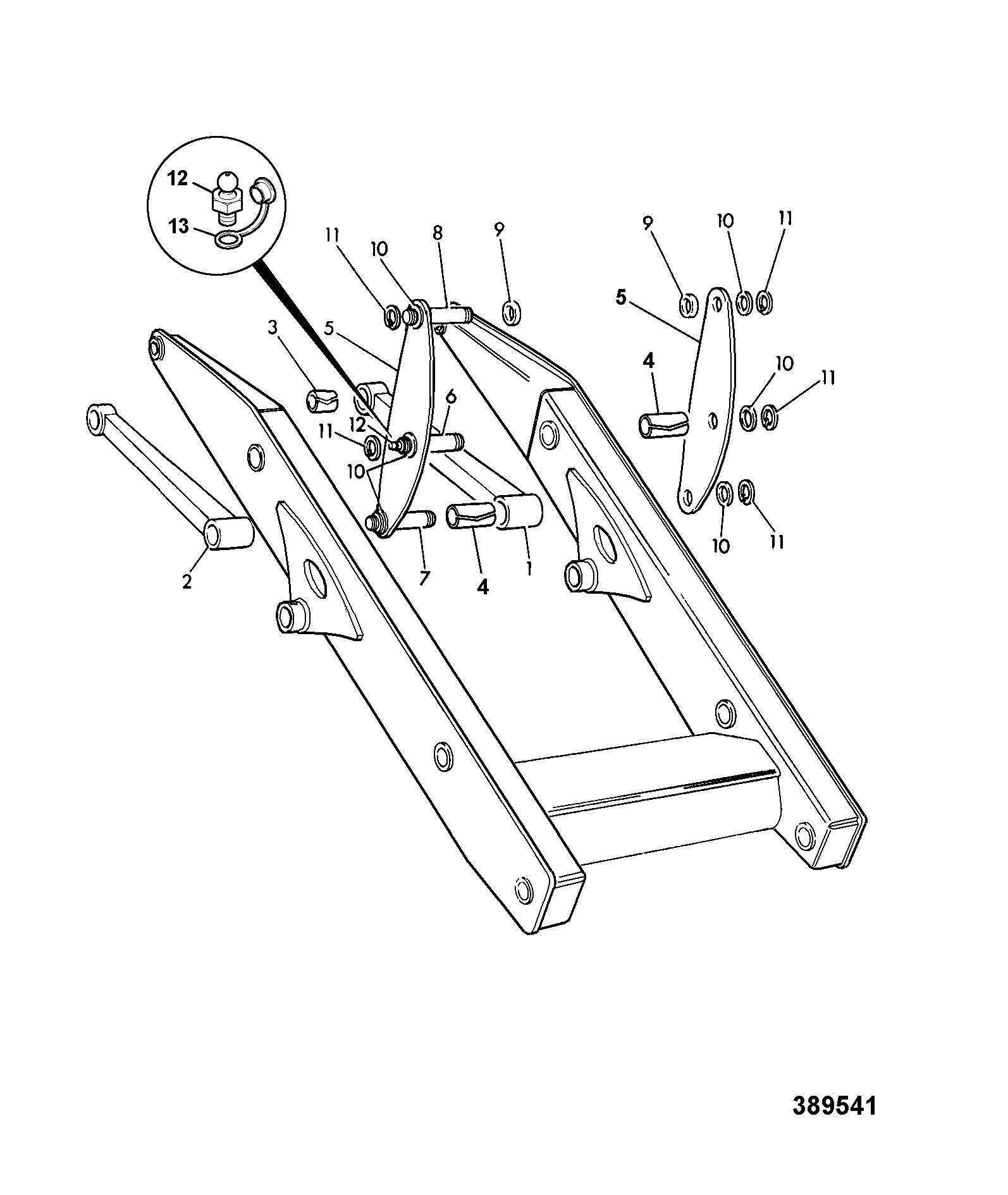

DIAG-B3-2-10-395127 B3-2-10 ARMS, LOADER INTERLEVER
View Diagram -
DIAG-B3-1-12-395127 B3-1-12 ARMS, LOADER
View Diagram
