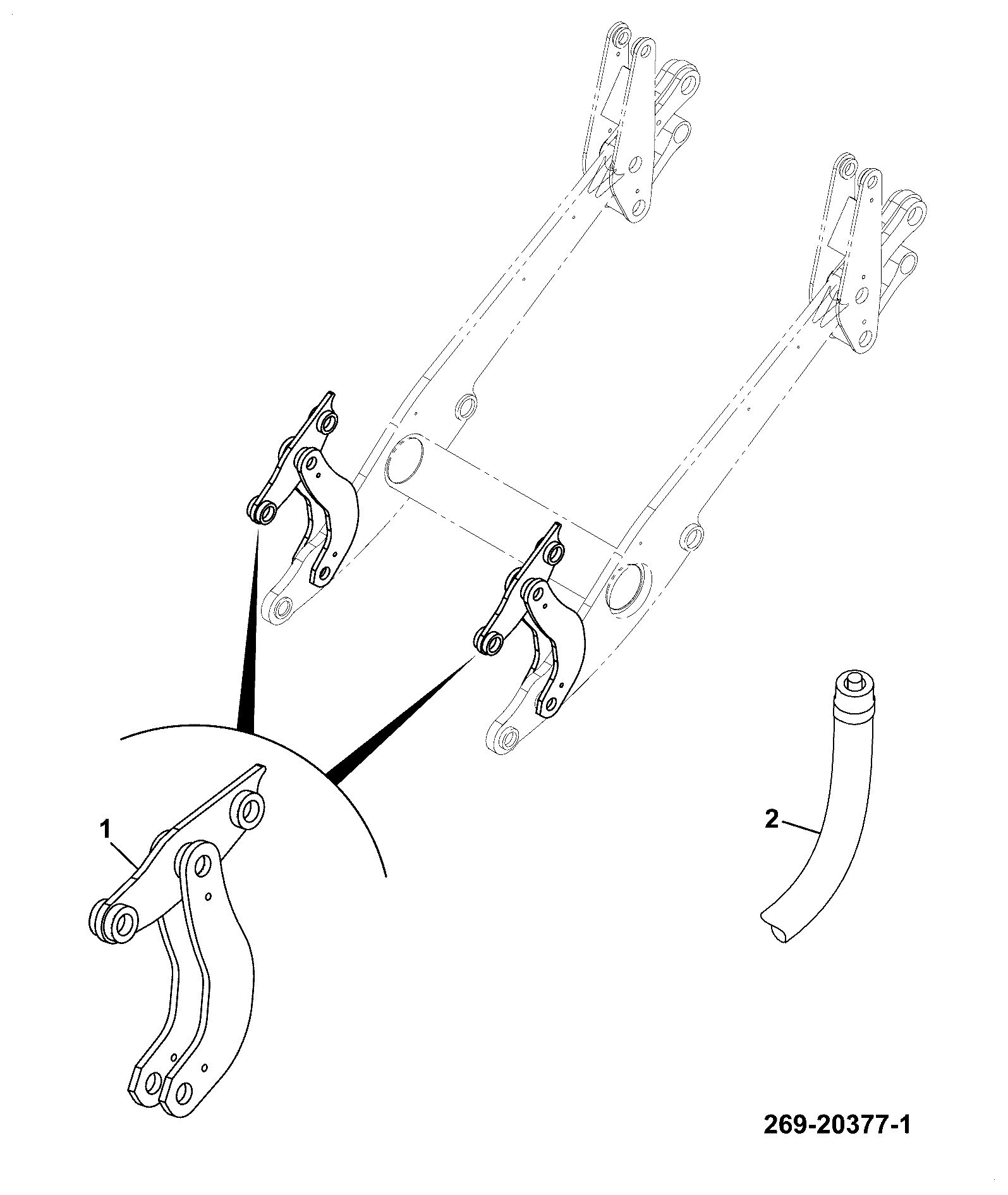

B3-2-20 ARM, LOADER LINKAGE NON PARALLEL LINKAGE LEVERS Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	GA NON __ LINK KIT 269/20143	1	AVAILABLE TO ORDER	$5,358.88	Quantity
1	Lever shovel ram l 331/28357	1	AVAILABLE TO ORDER	$2,290.40	Quantity
2	Lever shovel ram r 331/28358	1	AVAILABLE TO ORDER	$2,531.11	Quantity
3	PLATE INTER SIDEPLATE 331/16536	1	AVAILABLE TO ORDER	$1,357.90	Quantity
4	M/C SHOVEL LINK 331/21184	1	AVAILABLE TO ORDER	$970.89	Quantity

Showing 1 to 5 of 5 parts
